| Function: | Lamp Cap Twist Testing | Peak Range: | 0.15-.10.00Nm |
|---|---|---|---|
| Accuracy: | In The Range Of ± 0.5% (full Scale) | Power: | 5 1.2V 1000mA |
| AC Adapter: | 100-240V AC (50 Or 60Hz) | Output: | 7.5-8.5V DC (0.5A) |
| Single Package Size: | 10X10X5 Cm | Single Gross Weight: | 3.000 Kg |
| Working Hours After Fully Charged: | About 16 Hours | ||
| High Light: | 10Nm Digital Torque Meter,1000mA Digital Torque Meter,0.15Nm electronic torque meter |
||

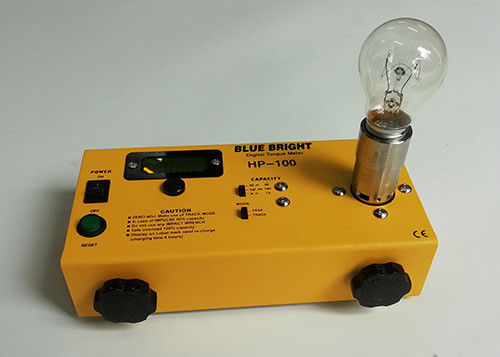

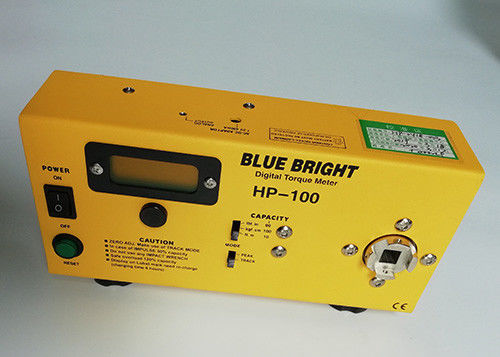

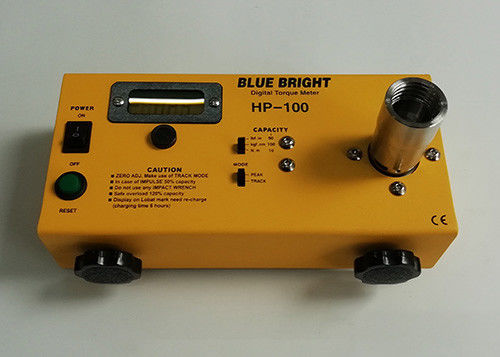

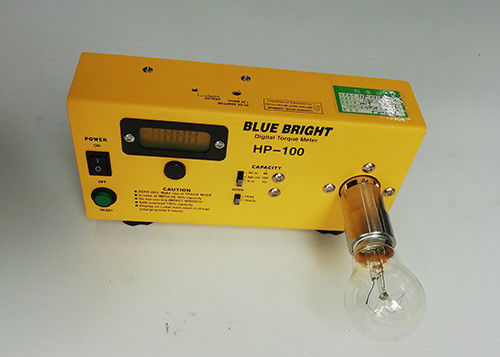

Peak Range 10Nm High Sensitive Lamp Cap Digital Torque Meters
Specifications of Digital Torque Meter
| Mode | HP-10 | HP-50 | HP-100 | |
| Peak range | N.m | 0.015-1.000 | 0.15-5.00 | 0.15-10.00 |
| N.cm | 1.5-100.0 | 15-500 | 15-1000 | |
| Lbf.in | 0.15-9.00 | 1.5-45.0 | 1.5-90.0 | |
| (Kgf.cm) | 0.15-10.00 | 1.5-50.0 | 1.5-100.0 | |
| Accuracy | In the range of ± 0.5% (full scale) | |||
| Power | 5 1.2V 1000mA Ni-MH battery | |||
| Working hours after fully charged (Continuous use) |
About 16 hours | |||
| Battery Life | Around 500 times rechargeable | |||
| Size | Si See Dimension Chart | |||
| Weight | 1.8Kg | |||
| AC Adapter | In the 100-240V AC (50 or 60Hz) to work Output 7.5-8.5V DC (0.5A)) |
|||
Feature of Digital Torque Meter
I)Turning off automatically
It will automatically turn off 10 minutes after leaving it without use.
II)Storing data
It can record 100 torque data, and can store, browse partly delete and completely delete them.
III)It can calculate the MAX, MIN and AVE
IV)Deleting torque data automatically
It can adjust the time of automatic reset with the seitch.
V)Adjusting zero automatically
It can automatically adjust zero.
VI)Setting torque data and reminding workers with the buzzer
Digital Torque Meter (Normal Type)
→ For measuring the torque setting of electric screwdrivers, torque drivers and torque wrenches;
for many other applications for which jig tools are devised.
→ For collecting data on holes diameters prepared for tapping screws;
→ For controlling bottle cap fastening;
→ For testing breakdown of small parts;
→ For quality control of plastic screws and parts.
