Split Type IEC60529 IPX7 IEC Test Equipment , 50m High Pressure Immersion Tank

Split Type IEC60529 IPX7 IPX8 50m High Pressure Immersion Tank

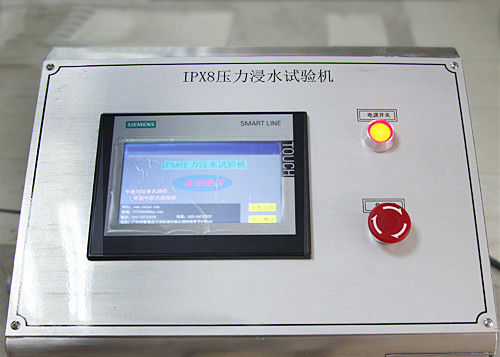

Split type IPX8 Tank Feature:

1. Entire tank adopts SUS304# stainless steel high accuracy integrated forming,

ensure it will not rust and water-tight after long time use,

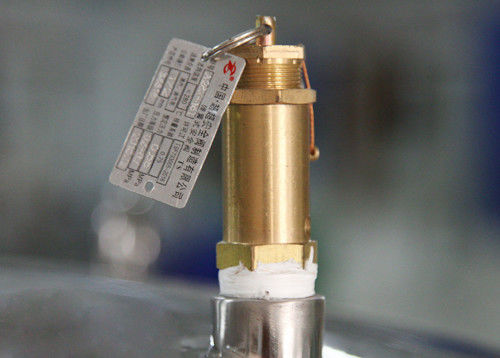

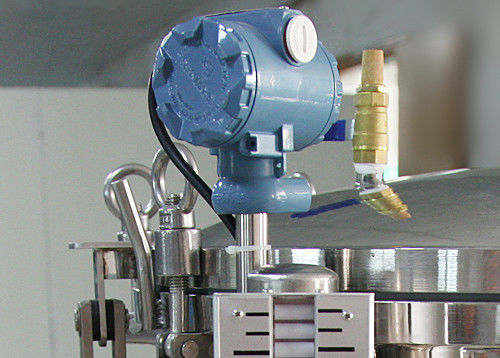

adjust the test pressure according to the high precision pressure regulating valve.

Pressure regulating valve with pressure stabilizing function,

it can keep stable test pressure all the time after the pressure has been adjusted.

2. The pot cover is rotated and lifted by the screw thread, it can rotate and move away from the hole after lifting.

(when pressure is greater than 50m depth test, must use special flange lock to lock cover)

3. The whole tank surface blasting treatment, smooth and beautiful.

Parameters:

Note: other sizes can be customized according to requirements.

Split type IPX8 Tank Description:

Assessment of enclosures and sealing element whether can ensure good performance of equipment and components after the water test or during the test.

Confirm to standards:

IEC 60529 IPX7 IPX8;

EN 60529 IPX7 IPX8;

IEC 60884-1;

IEC 60598-1;

IEC 60335-1 and so on.

Testing principle

The air pressure is applied to make the compressed air generate pressure on the water body, so as to simulate the corresponding water depth environment.

SC-IPX waterproof test machine is according to IEC60529:1989 +A1:1999+A2:2013 (Degrees of protection provided by enclosures (IP Code)>,IEC60598, IEC60335 and IEC 60034-5, GB/T-2423.2, GB4208, GB7000.1.The SC-IPX includes the following test grades: IPX1, IPX2,
IPX3,IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to page 51 of IEC60529). It is widely used in the authentication test organization for the
products such as electrical and electronic products, LED luminaires as well as in the relevant quality control department for the
waterproof detection of the enclosures protection grades.

The whole SC-IPX waterproof test system includes:

Drip Box(SC-IPX12): The drip box is for IPX1 and IPX2 drip test. The drip box size is 800x800x75mm(LXWXH). The diameter of drip hole
is 0.4mm. The distance between drip holes is 20mm. The sample can be over 150kg.

Swing Pipe Water Spray Test Equipment (SC-IPX34): It is for IPX3 and IPX4 test. The semi-diameter of swing pipe is 1meter(Any
other size is also available). The inside diameter of the swing pipe is 15mm. The sample rotating table diameter is 1000mm (Or other
size according to the diameter of the swing pipe, and the height is adjustable. The rotation speed is 1-5rpm which controlled by PLC
panel.

Waterproof Jet Test Device (SC-IPX56): With water supply device size is 1000x1000x600m, the nozzle diameter is 6.3mm (IPX5)
and 12.5mm(IPX6). The water speed is 12.5±0.626L/min for IPX5 and 100±5L/min for IPX6.

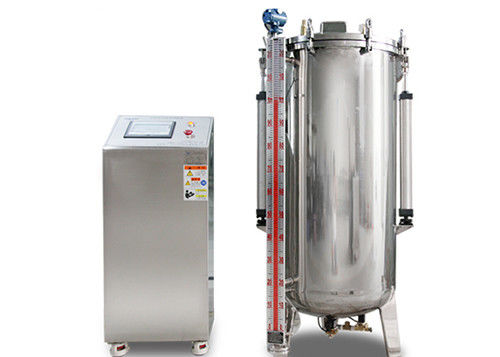

Immersion tank Waterproof test Device (SC-IPX7): It Is for IPX7 test. The water tank size is 1000x1000x1200mm (Other size can be
designed according to your request). It can test samples up to 120kg

Immersion tank Waterproof test Device(SC-IPX8): It is for IPX8 test. It can simulate a water depth of 0-50m. The water immersion
tank diameter is 600mm and the height is 1200mm. The compressive stress is 10 atmospheres or design according to customer's
request.
