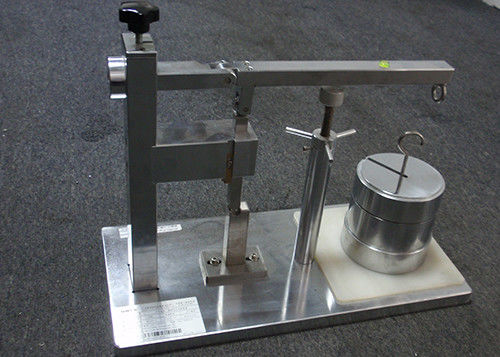

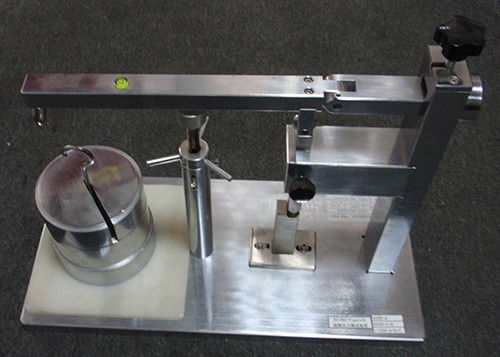

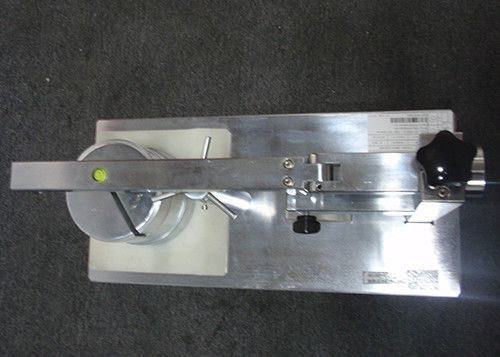

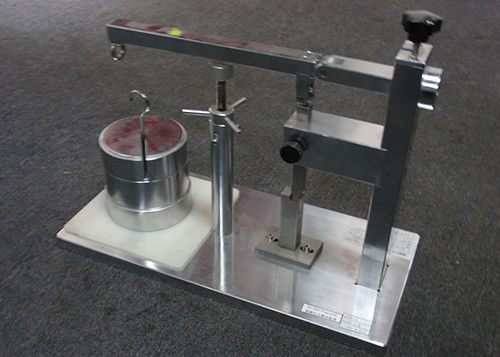

1100N Plug Socket Tester Adaptor Pin Weight Apparatus Test

1100N Plug Socket Tester Adaptor Pin Weight Apparatus Test

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  1100N Plug Socket Tester Adaptor Pin Weight Apparatus Test Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-BS-F32
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 50-2000 piece
Packaging Details: Wooden Carton
Delivery Time: in 15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 999 pieces per month
Detailed Product Description
Material: Stainless Steel Standards: BS1363 Figure 32
Name: Apparatus For Tests On Adaptor Pins Weight 1100N Function: For Tests On Adaptor BS1363 Pins
Weight: 1100N Warranty: 24 Months
BS1363 Figure 32: Apparatus For Tests On Adaptor Pins BS1363 Figure 33: Apparatus For Torsion Test On Pins
High Light:

1100N Plug Socket Tester


SGS Plug Socket Tester


Adaptor Pin Weight Apparatus

BS1363 Figure 32 Apparatus For Tests On Adaptor Pins




Standards BS1363 Figure 32
Function For Tests On Adaptor Pins
Weight 1100N

Stainless steel


BS1363 List of references
Figure1 test pin
Figure 2a)-apparatus for mechanical strength test on resilient covers
Figure 2b)-hardwood block for Figure 2a)
Figure 3-disposition of socket contacts
Figure 4-dimensions and disposition of pins
Figure 5-gauge for adaptor pins
Figure 6-apparatus for testing plug cover fixing screws
Figure 7-mounting plate
Figure 8-plug pin deflection test apparatus for resilient adaptors
Figure 9-apparatus for abrasion test on insulating sleeves of plug pins
Figure 10-apparatus for pressure test at high temperatures
Figure 11-GO gauge for socket-outlet
Figure 12-contact test gauge
Figure 13-test apparatus and circuit for use with contact and non-contact test gauges
Figure 14-non-contact test gauge
Figure 16-withdrawal pull gauges for effectiveness of contact
Figure17a)-Test apparatus for temperature-rise- test
Figure 17b)-dummy front plate for temperature-rise test
Figure 18-apparatus for flexing test
Figure 19-solid link for test on fuse clips
Figure 20--tumbling barrel
Figure 21-pendulum impact test
Figure 23-apparatus for pressure test
Figure 24-apparatus for ball pressure test
Figure 28-calibrated link
Figure 29-calibration jig for calibrated link
Figure 30-test plug for temperature rise
Figure 32-apparatus for tests on adaptor pins
Figure 33-apparatus for torsion test on pins
Figure 34-test plug
Figure 35-simulated plug and cord devices
Figure 36-apparatus for calibration of turning moment of
simulated plug
Figure 37-turning moment apparatus
Figure 38-solid links for test on fuse clips
