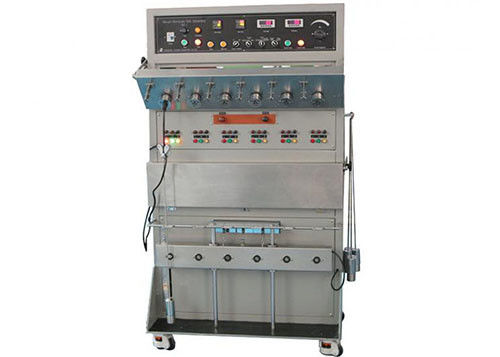

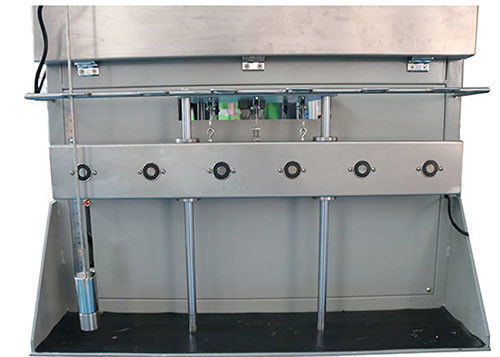

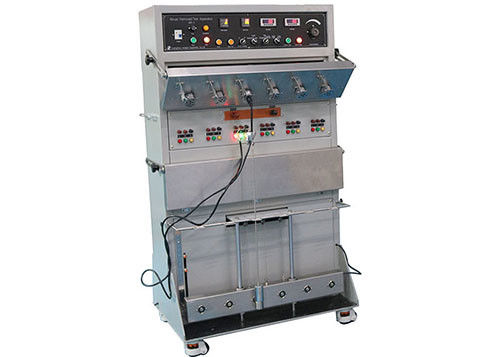

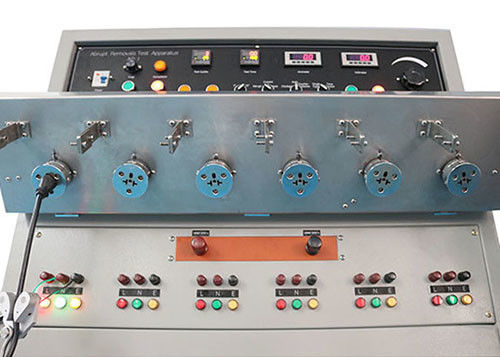

12 Volt Abrupt Pull Tester

12 Volt Abrupt Pull Tester

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  12 Volt Abrupt Pull Tester Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-TAPT
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 1200-5000 unit
Packaging Details: Carton
Delivery Time: in 15 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 999 units per month
Detailed Product Description
Reference Standard: UL817 Clause 96.4-96.5 Flexing Test, Clause 99.1-99.2 Abrupt Pull Test, Clause 100.1-100.3 Jacket Retention Test Test Sample: Plug Power Line
Working Station: 6 Stations Load Current: 0~40A , Arbitrary Adjustable
Load Voltage: 4~12V Load Weight: 2.5 Pound(lb) , 3 Pound(lb) , 15 Pound(lb) 6 Pcs Per Each
Power Supply: AC 220V 50Hz Test Time: 0.1~999.9S
High Light:

12V Abrupt Pull Tester


UL817 Abrupt Pull Tester


50Hz Jacket Retention Test

UL817 Jacket Retention Test Abrupt Pull Test Apparatus Cable Test Device



Technical parameters:

Power supply AC 220V 50Hz
Load current 0~40A , Arbitrary adjustable
Load voltage 4~12V
Working station 6 stations
Test times 1~9999 times, can be preset
Test time 0.1~999.9S
Load weight 2.5 pound(lb) , 3 pound(lb) , 15 pound(lb) 6 pcs per each
Ambient temperature 0~40℃
Ambient humidity less than 85%Rh
Reference standard

UL817 clause 96.4-96.5 Flexing test,

clause 99.1-99.2 Abrupt Pull Test,

clause 100.1-100.3 Jacket retention test



This device is used for the resistance abrupt pull test of Plug of plug power line, torsion test, load test and grounding current test.

According to the standard UL817 clause 96.4-96.5 Flexing test, clause 99.1-99.2 Abrupt Pull Test, clause 100.1-100.3 Jacket retention test.


Test sample: Plug power line.


Feature: Using automatic mode test, it will automatic shutdown when reach to the setting number if test times or setting time.
