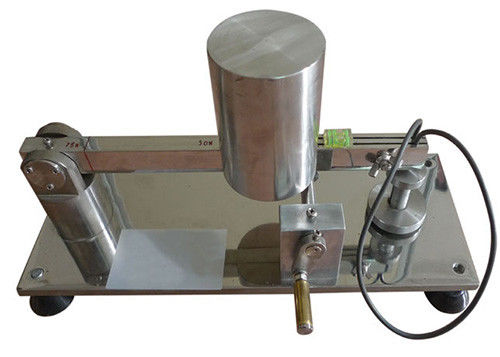

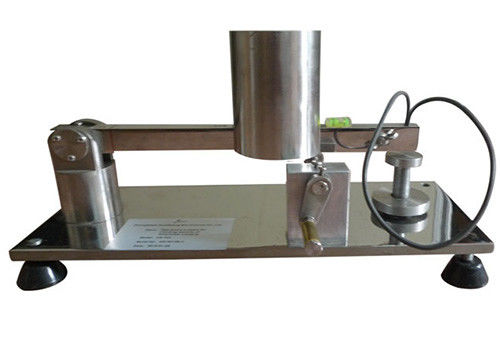

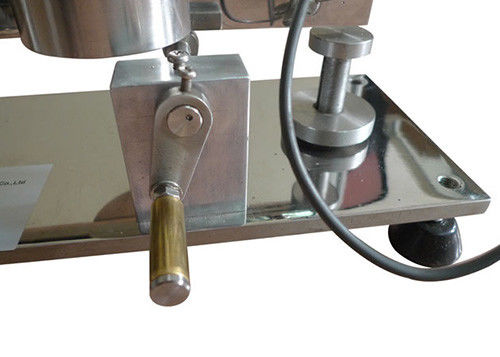

15N IEC60598-2-20 Light Testing Equipment , Lampholder Copper Contacts

15N IEC60598-2-20 Light Testing Equipment , Lampholder Copper Contacts

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  15N IEC60598-2-20 Light Testing Equipment , Lampholder Copper Contacts Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-CCT
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 300-1000 piece
Packaging Details: Carton
Delivery Time: in 15 work days
Payment Terms: T/T, Western Union, MoneyGram, D/A
Supply Ability: 999 units per month
Detailed Product Description
Material: Stainless Steel Standard: IEC60598-2-20
Clause: Clause 113,Figure 2 Application: Checking Lampholder Contacts
Weight: One 15 N And One 30 N Customize: OEM, ODM
High Light:

15N Light Testing Equipment


30N 15N Light Testing Equipment


15N Lampholder Copper Contacts

IEC60598-2-20 Lampholder Copper Contacts Security Thrust Test Device



Product information:

The test apparatus is used to check security of lampholder contacts, avoid the lamp holder contacts shifting and the live parts of the lamp string becoming accessible which are caused by the frictions.


Technical parameters:

conform standards IEC60598-2-20 clause 113,Figure 2
material stainless steel
weight one 15 N and one 30 N


Test method:

The incandescent lamp is removed and a force of 15 N is applied for 1 min to each of the conductors connected. Following this, a force of 30 N is applied for 1 min to the two conductors together. The forces are applied at a distance of 3 ± 0,8 mm from the insertion points in the lampholder so as to try to move the contacts from the lampholders. During the test the contacts shall not move more than 0,8 mm.


Guangzhou Shice Equipment Co., Ltd. (hereinafter referred to as Guangzhou Shice) is the one professional focus on IEC testing equipments, IP waterproof testing equipments, electronic testing products and other testing products. Guangzhou Shice is professionally dedicated in providing laboratory testing equipment. We are now the high-tech enterprises with technical superiority and R & D capabilities in test instruments industry.


Guangzhou Shice are designed and manufactured as per the requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc. Our main products are: waterproof and dustproof (IP) environmental test equipment; switch, plug, socket and coupler test equipment; mechanical strength impact test equipment; material fire hazard test equipment, enclosure protection test probes; household appliances safety test equipment; wire and cable test equipment; luminaires test equipment; electric tools test equipment. Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.
