| Capacity: | 2000KG | Precision Grade: | Level 0.1 |
|---|---|---|---|
| The Maximum Load Of The Beam: | 20KN | The Effective Measurement Range: | 0.02/100-100% |
| The Effective Test Width: | 390mm | The Station Itinerary: | 1000mm |
| The Speed Of Test: | 10~500mm/min | Speed Precision: | Less Than 0.1% Of The Indication Value |
| High Light: | 20KN Cable Testing Equipment,390mm Cable Testing Equipment,SGS tensile testing machine |
||

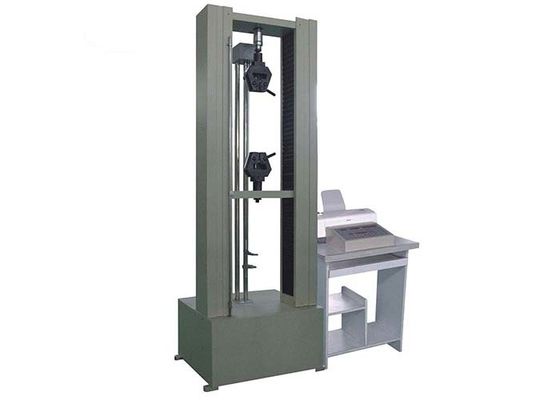

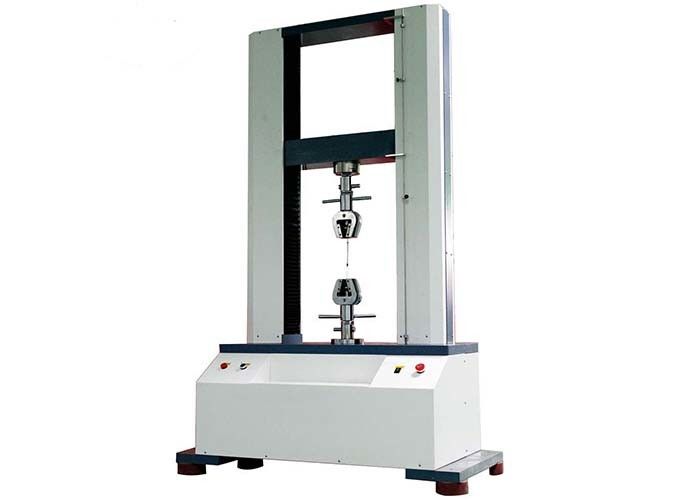

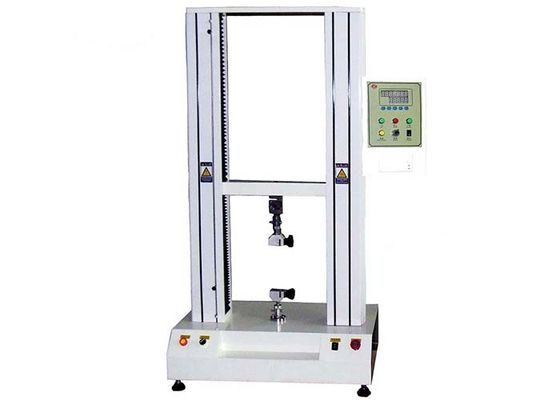

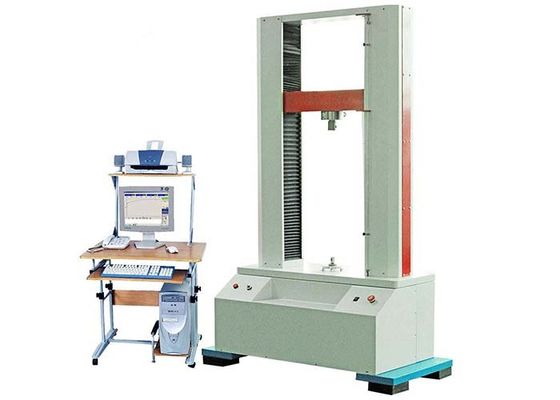

Cable Tester Tensile And Elongation Strength Measuring Equipment
Application:
This device is suitable for all kinds of food packaging, textile, rubber, plastic, synthetic leather, tape, electronics, metal and other industries, such as materials and products to do tensile, peeling, tearing and other tests to determine the quality of the product. The machine adopts electromechanical integration design, mainly composed of force sensor, transmitter, microprocessor, load driving mechanism and computer. The precision is high and the operation is simple.
Parameters:
| Capacity | 2000KG |
| Precision grade | level 0.1 |
| The maximum load of the beam | 20KN |
| The effective measurement range | 0.02/100-100% |
| The resolution of the test force, the internal and external files, and the whole resolution unchanged. | |
| The effective test width | 390mm |
| The station itinerary | 1000mm |
| The speed of test | 10~500mm/min |
| Speed precision | less than 0.1% of the indication value |
| The precision of displacement measurement | less than 0.1% of the indication |
| The precision of deformation measurement | within 0.1% of the indication value |
| Acquisition induction mode | high precision sensor |
| Control system | full digital AC servo controller |
| Tooling and fixture configuration | total two sets, one set for rubber and plastic materials, the other set for electrical cables and wires |
| Software measurement and control system | all digital closed loop control system, which can realize constant stress, constant strain, constant displacement and test function. |
| test bench lifting device | computer numerical control |
| test bench safety protection device | software automatic diagnosis, electronic limit |
| Test regression | manual can return to the initial position at the highest speed and automatically return automatically after the test. |
| Overload protection | the maximum load can be set, and automatic protection. |
| Host computer | special monitoring and control software, computer hardware using Lenovo brand business computer. |
| motor | 2KW |
| The weight of the host | about 145kg |
Configuration:
Material: the machine cover, all aluminum profiles are opened without any solder joints, and the shell is smooth and smooth, durable.
Motor: servo motor + servo drive;
Transmission: T type ball screw rod + light rod linear bearing;
Displacement: servo drive integrated light speed encoder.
Accessory:
1 tool box suitable for stripping of cables.
A computer
Software
