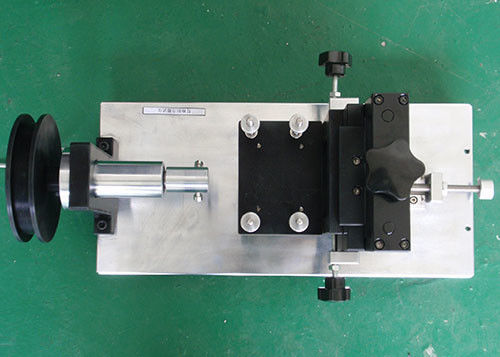

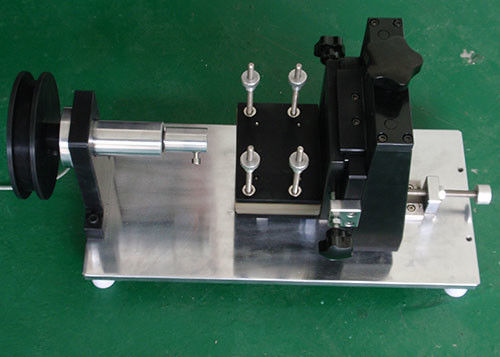

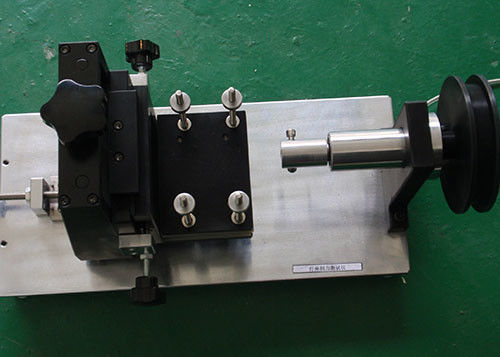

2N Torsion Test Apparatus

2N Torsion Test Apparatus

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  2N Torsion Test Apparatus Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-TTL
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 1000-5000 piece
Packaging Details: Carton
Delivery Time: in 15 working days
Payment Terms: T/T, Western Union, MoneyGram, D/A
Supply Ability: 999 units per month
Detailed Product Description
Standard: IEC60598, UL496 Figure 5, UL1598 Control: Manual
Weight: 2N, 3N, 5N, 7N, 8N Each One For E12 Lamp Holder: 1.0Nm
For E27, E26 And B22 Lamp Holders: 2.0Nm For E39 And E40 Lamp Holders: 4.0 Nm
For E14 And B15 Candle Lamp Holder: 0.5Nm For E14 And B15 Lamp Holders (except Candle Type): 1.2 Nm
High Light:

2N Torsion Test Apparatus


7N Torsion Test Apparatus


5N light test equipment

IEC60598 Apparatus Of Torsion Test Of Lamp Holders With Weight 2N 3N 5N 7N 8N



Product overview:

Manufactured in accordance with IEC60598, UL496 Figure 5, UL1598 and other relevant standards

Screw the corresponding steel test lamp holder into the lamp holder and continuously apply torque test for 1min to assess the lamp holder.

Whether produce craze, whorl join piece whether become loose, fastener whether become loose wait for obstruct to make normally.


Product parameters:

for E12 lamp holder 1.0Nm
for E14 and B15 lamp holders (except candle type) 1.2 Nm
for E27, E26 and B22 lamp holders 2.0Nm
for E39 and E40 lamp holders 4.0 Nm
for E14 and B15 candle lamp holder 0.5Nm
for E10 lamp holder 0.5 Nm
for UL lamp holder 2.25 Nm, 3.39 Nm, 1.13 Nm

1)test torque please reference above list

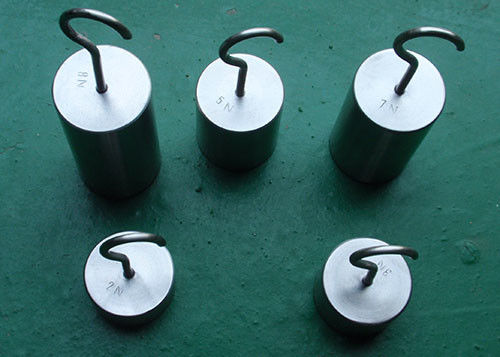

2) the torque of various lamp holders is configured with corresponding weights.

3) the torque rotary table is driven to rotate by weights of different weights, so as to generate the specified size

In the moment.


After the test, the lampholder shall not have moved from its position and the fixing device

shall show no permanent deformation, so that the lamp, when reinserted, shall be in its

intended position.


2N Torsion Test Apparatus 0
