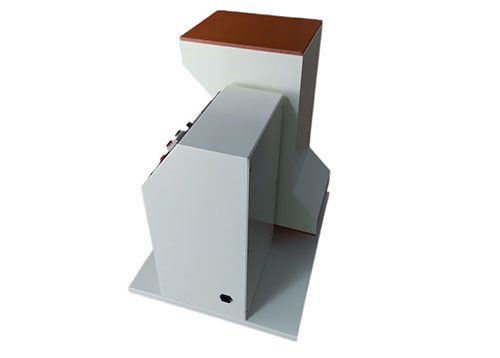

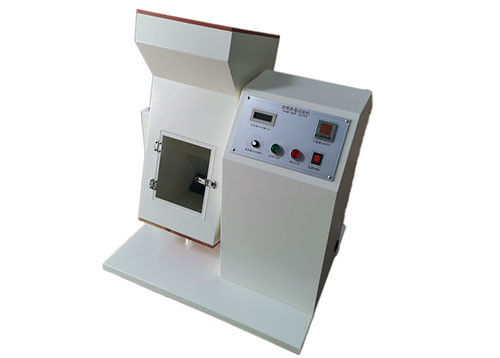

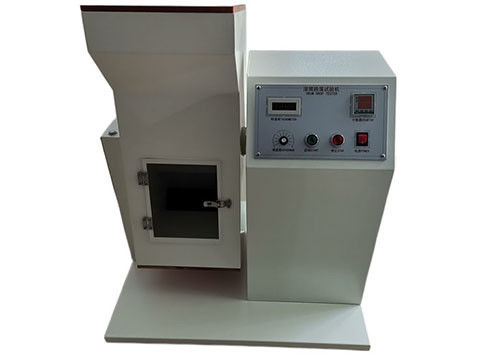

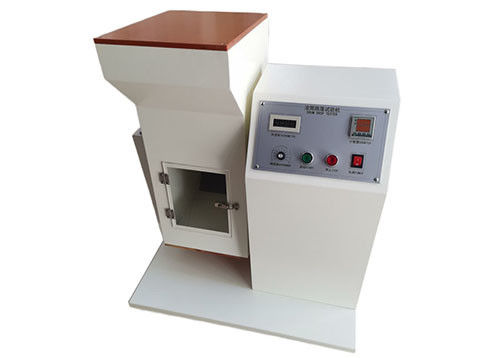

350mm Electrical Appliance Tester

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  350mm Electrical Appliance Tester Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shice
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-TB
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 500-3000 piece
Packaging Details: Wooden carton
Delivery Time: in 15 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 999 pieces per month
Contact Now
Detailed Product Description
Standard: IEC60068-2-32, IEC-60884-1, VDE And BS1363 Application: For Mobile Phone, PDA, Electronic Dictionary, CD / MP3 For Continuous Rotation (drop) Test
Allowable Weight Of Test Piece: 5kg (max) Falling Height: 500mm Or 1000mm (can Be Specified)
Drum Width: 350mm Rotation Speed: 5 R/min
Test Times: 1-999999 (can Be Set) Power Supply: AC 220 V Or Specified
High Light:

350mm Electrical Appliance Tester

,

220V Electrical Appliance Tester

,

IEC60068-2-32 Cellphone Drum Drop Test

Cellphone Drum Drop Test Machine Phone Tumbling Barrel Apparatus





Product introduction:
This machine is suitable for mobile phone, PDA, electronic dictionary, CD / MP3 for continuous rotation (drop) test.
Applicable standard: IEC60068-2-32
Test standard: there are two specifications of the tester: IEC-60884-1, VDE and BS1363.
Test method: the plug including the power line at the back end is cut off at a position of 100 mm. As a test piece, it is put into the roller.
According to the weight of the test piece, the rolling times are set to make the test piece fall down continuously, and then check the damage degree of the test piece.

Parameters:
No
Item
Data
1
Allowable weight of test piece
5kg (max)
2
Falling height
500mm or 1000mm (can be specified)
3
Drum width
350mm
4
Rotation speed
5-20 times / min
5
Test times
1-999999 (can be set)
6
Machine size (w * D * h)
1020 * 810 * 1170mm 2400*1200*1350mm
7
Power supply
AC 220 V or specified



Tips for use:

1. Place the machine in a horizontal position.
2. Turn on the power cord and turn on the power switch.
3. Set the counter and set the required number of tests.
4. During the test, open the cylinder cover (if the position is not directly above, start the power supply first, press the start key "start" to turn the cylinder cover to the top
5, then press the stop key "stop"; then put the test piece into the cylinder and close the cylinder cover).
6. Press the start key "start" and the drum starts to rotate.
7. When the counter reaches the set number, it will stop automatically.
8. Take out the test piece and check its damage degree.

List of tumbling barrel apparatus:
Model TB-1 TB-2
Power Supply 220V 50Hz or 115V 60Hz 220V 50Hz or 115V 60Hz
Speed of rotation 5 r/min 5 r/min
Feel times 10 times/min 10 times/min
counter 0~9999 0~9999
Material 3 mm steel 3 mm steel and Block of wood and plastics laminated sheet
Height 650 mm 675 mm(or 1175)
Dimension W*D*H=630mm x 600mm x 1250mm W*D*H=630mm x 600mm x 1250mm
Chute Length 275mm 275mm
Conforms to standard VDE0620.1 IEC60598 IEC60068-2-32, IEC60884.1, EN50075



Model TB-3 TB-4
Power Supply 220V 50Hz or 115V 60Hz 220V 50Hz or 115V 60Hz
Speed of rotation 5 r/min 5 r/min
Feel times 10 times/min 10 times/min
counter 0~9999 0~9999
Material 19 mm nominal thick blockboard 5 mm steel and hard wooden plate
Height 650 mm 1070 mm
Dimension W*D*H=630mm x 600mm x 1250mm W*D*H=630mm x 600mm x 1450mm
Chute Length 275mm 275mm
Conforms to standard BS1363.1 UL60730 IEC60312
