Product Details:
Payment & Shipping Terms:
|
| Temp. Range: | (A-D) A:200℃ B:300℃ C:400℃ D:500℃ | Heating Up Time: | RT~100℃ About 10min |
|---|---|---|---|
| Accuracy (℃): | ±0.3 | Uniformity (℃): | ±1% |
| Power: | 220V Or 380V | Inner Size: | 45x40x40 And Other Size |
| Customize: | OEM, ODM | Material: | Outside SECC Steel, Fine Powder Coating Treatment; Inner SUS#304 Stainless Steel |
| High Light: | 380V Hot Air Drying Oven,220V Hot Air Drying Oven,500deg Laboratory Microwave Oven |
||

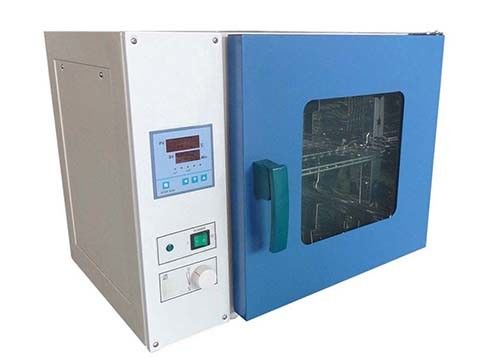

High Temperature Chamber Hot Air Drying Oven Lab Microwave Oven
Application
This machine is designed specially for drying of material which is thermo-sensitive or decompounded and oxidative easily. It can be filled with inert gases, which is especially for a rapid drying of some compound material.
Parameters
| Model | SC-KX-72L | SC-KX-125L | SC-KX-270L | SC-KX-600L | SC-KX-1000L |
| Inner Size W*H*D(cm) | 45x40x40 | 50x50x50 | 60x90x50 | 100x100x60 | 100x100x100 |
| External Size W*H*D(cm) | 66x82x52 | 69x100x64 | 93x125x70 | 133x165x80 | 120x160x120 |
|
Temp Range(℃) |
(A-D) A:200℃ B:300℃ C:400℃ D:500℃ |
||||
| Heating up Time |
RT~100℃ About 10min |
||||
| Accuracy (℃) | ±0.3 | ±0.3 | ±0.3 | ±0.3 | ±0.3 |
| Uniformity (℃) |
±1% |
±1% |
±1% |
±1% |
±1% |
| Power | 220V or 380V | ||||
| Power of work (kw) | 2.2 | 4.6 | 5.5 | 6 | 8 |
Features
1.Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel;
2. Use new high temperature resistant long shaft motor;
3 Turbine fan;
4.Silicone forced tight;
5.Overtemperature protection, super load automatic power system;
6.Circulation system: air force level cycle;
7. Heating system:PID+S.S.R;
8.The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function;
9.Timer: temperature to time, when the power failure alarm indication;
10.According to customer demand matching glass window can be customized according to customer specifications specified.
Applicable Industries
Hot Air Circulating Drying Oven can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing . It supplys precision temperature controllter with high stability of platinum resistance to temperature that makes temperature well-distribution.
