4Nx1 Body Plug Pin Fixation Verifying Test Apparatus

4Nx1 Body Plug Pin Fixation Verifying Test Apparatus

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  4Nx1 Body Plug Pin Fixation Verifying Test Apparatus Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS
Model Number: SC-LG05
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 200-1000 unit
Packaging Details: carton
Delivery Time: in 15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 999 unit per month
Detailed Product Description
Material: Stainless Steel Standards: IEC60884 Figure 30
Heating Cabinet Temperature: (70 ± 2) °C Test Station: 1 Station
Weight: 50N*1, 20N*2, 30N*1, 4N*1 Pull Force Weight: According To The Maximum Withdrawal Force In Table 16
Function: Testing The Firmness Of The Plug And The Plug Pin Time Of Force Applied On Each Plug Pin: 1 Minute
High Light:

4N Verifying Test Apparatus


20N Verifying Test Apparatus


Fig30 IEC60884

IEC60884 figure 30 Apparatus Plug Socket Tester To Verify Fixation Of Pins In The Body of the plug



Product details:

This device conforms to the standard of IEC 60884-1 clause 24.10 Fig30.

It is used for testing the firmness of the plug and the plug pin.

The plug is placed on a rigid steel plate provided with holes suitable for the pins of the plug.

The distance between the centers of the holes shall be the same as the distances between the centers of the circle circumscribed around the cross-sectional area of each pin in the standard sheet of the plug.


Technical parameters:

Number of test station 1
Weight 50N*1, 20N*2, 30N*1, 4N*1
Standard socket: each one of Mexican standard for configurations: C1.1, C1.2, C1.3, C1.4, C1.5, C1.6, C1.9, C1.10, C1.13


Test method:

1. Before first use, user should familiar with the relevant standards for more effective and proper using the test apparatus and completing the test.

2. The plug is positioned on the steel plate in such a way that the centers of the circles circumscribing the pins coincide with the centers of the holes. Then insert the test plug into the socket in the direction of the longitudinal axis of the pin. After that, the plug is placed in the heating cabinet with temperature (70 ± 2) °C, 1 h after, a pull force is applied inside a heating cabinet

3. Choose the clamping fixture according to the shape of the plug, and make it is firmly connected with the plug (ensure it will not loose when exert a pull force)

4. Choose the pull force weight according to the maximum withdrawal force as given in table 16 (can be achieved by the superposition), the weight is hooked in the ring of the clamp, handle with care, and don’t produce explosive tension.

5. The force is applied on each plug pin for 1 min, after the test, the plug is allowed to cool down to ambient temperature and it shall be verified that the displacement of any plug pin in the plug body should not excess 1 mm.

6. Pay attention to the cleaning of the device and maintenance of the sockets after the test is completed.


Table 16:

4Nx1 Body Plug Pin Fixation Verifying Test Apparatus 0

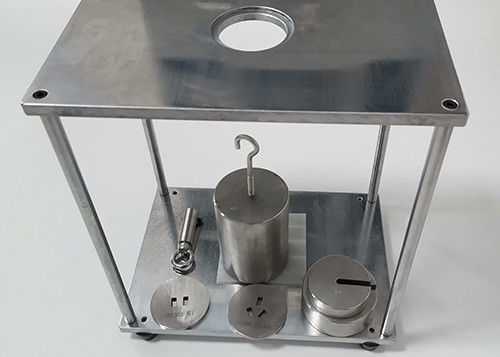

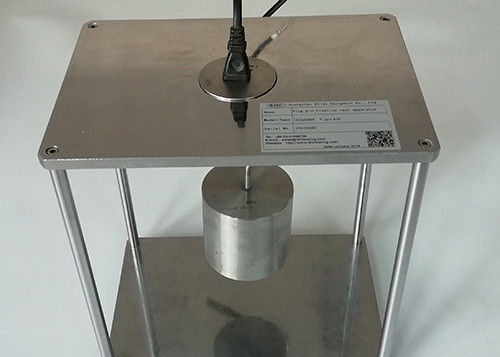

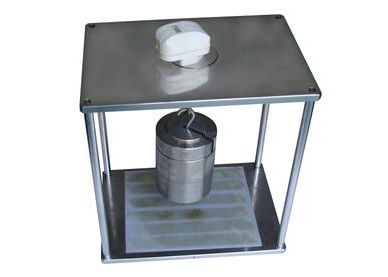

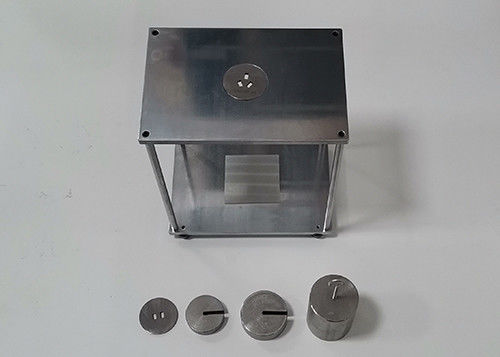

Apparatus picture:

4Nx1 Body Plug Pin Fixation Verifying Test Apparatus 14Nx1 Body Plug Pin Fixation Verifying Test Apparatus 2
