6 Work Station Flexing Test

6 Work Station Flexing Test

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  6 Work Station Flexing Test Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-CFS
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 1200-2000 unit
Packaging Details: Carton
Delivery Time: in 15 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 99 units per month
Detailed Product Description
Voltage: 220V 50Hz Or 115V 60Hz Color: Customized
Number Of Test Station: 6, With 6 Sets Of Clamp Device Rate Of Flexing: 10~60 Times/min
Flexing Angle: Swivel Angle On Either Side For 45° , 60°, Or 90°(or 180°)(selectable) Weight: 10N/20N*6 (the Weight Of UL113g And 284g Can Be Customized)
Conforms To Standard: IEC60884-1 Figure 21 And Clause 23.4,IEC60320-1,VDE0620 Number Of Flex Per Test: 1-999999 (selectable)
High Light:

220V Flexing Test


115V Flexing Test


60Hz Flexing Swivel Tester

Plug Cord Cable Flexing Swivel Testing Machine With 6 Workstations



Product Introduction:

Plug Cord Flexibility Tester is designed and manufactured according to the standard requirement of IEC 60884-1 figure 21, which can process 10,000 flexing at a rate of 60 flexing per minute.

The test equipment has 6 workstations, thus six cables or cords fitted with plugs can be tested simultaneously.


Main Technical Parameters:

Power Supply 220V 50Hz or 115V 60Hz
Number of Flex Per Test 1-999999 (selectable)
Number of Test Station 6, with 6 sets of clamp device
Rate of Flexing 10~60 times/min(selectable) individual counts for each station
Flexing Angle Swivel angle on either side for 45° , 60°, or 90°(or 180°)(selectable)
Weight 10N/20N*6(the weight of UL113g and 284g can be customized)
Dimensions W*L*H=500mm *1000mm* 1100mm
Conforms to standard IEC60884-1 Figure 21 and clause 23.4,IEC60320-1,VDE0620
Mechanical theory The crank block on the reduction gearbox is driven by the electric motor to do the reciprocating action.


Test Application:

The cables are connected to a socket and the tail of the cable is connected to the tester to detect if an internal fault occurs with the cable wiring or accessory connection. The instrument starts in a vertical orientation and then flexes the specimens 45° on either side of the vertical for a total 90° of flexing. A standard rate of 60 flexing per minute is used but a slower rate can be selected if desired.
A set of customer selected weights are included with the instrument so that the proper force can be applied to the cable during the test.


Test method:

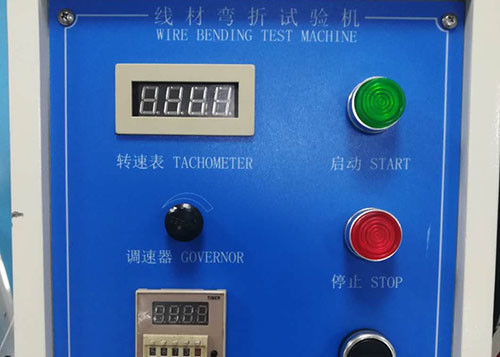

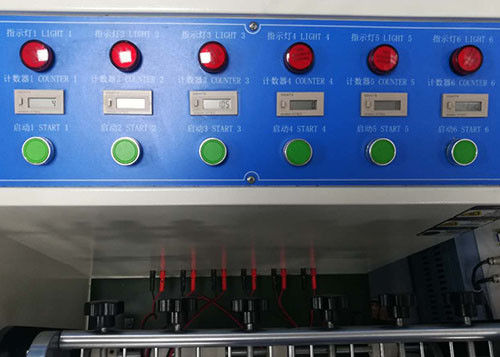

Set up the testing sample on the swing fixture and conduct the circuit. In the other side, the according weight is used, then set the flexing angle and testing times as well as the required speed. Then start the equipment. When the sample is broken off, the corresponding counter stops working and the indicator light off. At that time, the counter displayed is the testing times of the samples. When the total testing times are reached, the equipment will stop working.

This testing machine can be connected with Load of power line tester for the load test.

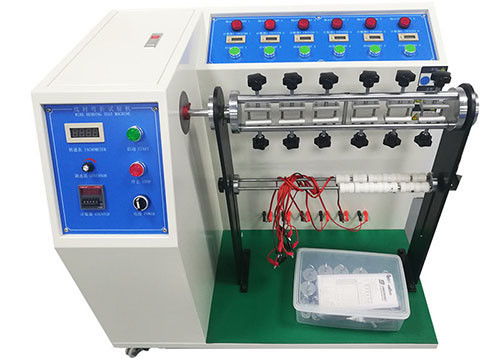

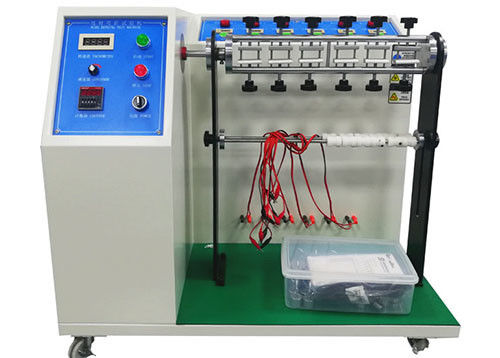

6 Work Station Flexing Test 06 Work Station Flexing Test 1
