| Standard: | IEC60950 | Usage: | Flame Testing Equipment |
|---|---|---|---|
| Glowing Filament: | Ф4mm ± 0.04mm Ni/Cr(80/20) Special Standard Ring Shape,horizontal Standing | Thermocouple: | 0.5mm Import K Thermocouple,the Temperature Resistance Of Armour Is 1100 ℃ ( Better Than The Standard Of 1050 ℃ ) |
| Ohmic Heating Temperature Of Glowing Filament: | 500 ℃ ～ 960 ℃ ( Digital Display Can Be Preset ) ,temperature Fluctuation < 3 ℃ | Specimen Pressure On Glowing Filament: | 1.0N±0.2N |
| Maximum Depth Of Heating: | 7mm ± 0.5mm | Specimen Movement Speed: | 10mm /s ～ 25mm /s |
| Controller: | Touch Screen Controller | Volume Of Test Site: | ≥ 0.5m 3 Black Background ,background Illuminance ≤ 20Lx |
| High Light: | Touch screen glow wire test apparatus,SGS glow wire test apparatus,Touch screen glow wire tester |
||

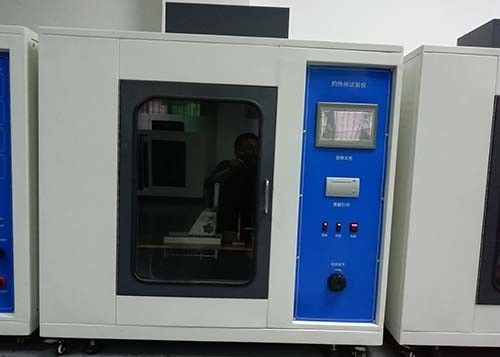

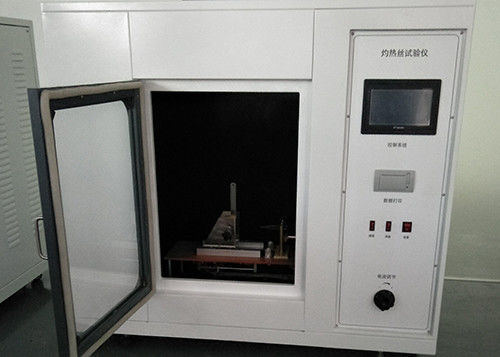

7 Inch Touch Screen Glow Wire Test Apparatus Flammability Tester
| Control operation mode | PLC control, 7 inch color touch screen operation, with infrared remote control |
| Glowing filament | Ф4mm ± 0.04mm (> 77 % Ni/20 ± 1 % Cr) special standard ring shape,horizontal standing |
| Specimen pressure on glowing filament | 0.95N±0.1N |
| Maximum depth of heating | 7mm ± 0.5mm |
| Specimen movement speed | 10mm /s ～ 25mm /s |
| Temperature calibration | Calibration temperature:960°±10°C, the hot wire by electric heating |
| Thermocouple: RS imported 1mm armour nickel-chromium/nickel/ nickel aluminum K-Thermocouple, temperature resistance 1100° | |
| Silver foil: purity 99.8%, area :2m², thickness:0.06mm | |
| Tray | A layer of silk paper (12~30g/m³) is covered on the 10mm thick pine board, with a distance of 200±5mm below the test sample |
| Test chamber | >0.5 cube, sample distance from the inside of the box is greater than 100mm, black yogon background illuminance ≤ 20Lx,with exhaust fan |
| Testing time | 30s±1s |
| Test procedure | The test sample is driven by the car and automatic run, the car will return automatically after glow wire entered the test sample of 7mm |
| Lighting | Equip with lighting in the test chamber, with control |
| Dimension | 1100*550*1200mm, 140kg |
| Working voltage | 220V /50Hz |
Products feature:
Products feature: Adopting solenoid valve switch to control the burning depth of test sample and equipped with measuring gauge, this device has the features of exact and rapid. The test sample will break away automatically from glowing filament after reaching the set time. Adopting the original imported UK LAB K type armour(0.5) whose temperature resistance is up to 1100°(exceed 1050°of standard requirement) , this device is with accuracy temperature control.
Introduction:
1. The glow wire test chamber is an IEC60695-2-10, UL 746A, and other standards that require the use of flameless ignition source program simulation test items.
2. The glow wire test chamber heats the specified material (Ni80 / Cr20) and shape of the heating wire (nickel chromium wire of Φ 4 mm) with a large current to the test temperature (550 ℃ ~ 960 ℃ for 1 minute, and then the specified pressure (1.0N) Vertically burn the test sample for 30s. Determine the fire hazard of the finished electrical and electronic equipment depending on whether the test sample and the bedding are on fire or hold time. ), Flammability and Flammability Index (GWFI).
3. Glow wire test chamber is suitable for research, production and quality inspection departments of lighting equipment, low-voltage electrical appliances, electrical instruments, and other electrical and electronic products and their components.
Glow Wire tester is designed to carry out fire hazard testing on electro trchnical products.A digital temperature indicator is fitted which ,in conjunction with the thermocouple supplied ,accurately measures the glow wire temperature .The electrical circuit of the unit is fully protected by fusesand a miniaturesircuit breaker and incorporates mains on switching and push button control of output current.
Note: The screen can be in English.
