| Standards: | IEC60335 Figure 7, IEC60745 Figure 7, UL1025 | Warranty: | 12 Months |
|---|---|---|---|
| Application: | For Safety Test | Material: | Nylon+Stainless Steel |
| Products Name: | Test Finger Nail | Probe Length: | 80mm |
| Angle Of The Finger Nail: | 37° | Diameter Of The Test Finger: | Φ12mm |
| High Light: | 80mm Finger Nail Test Equipment,IEC60335 Finger Nail Test Equipment,CNAS ip protection probe |
||

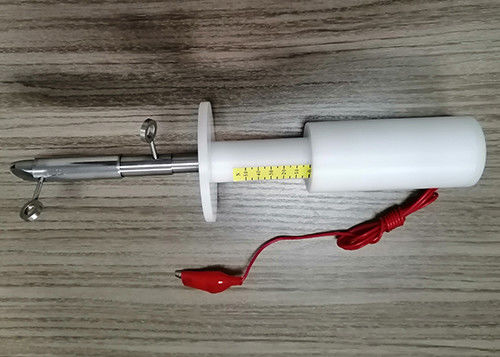

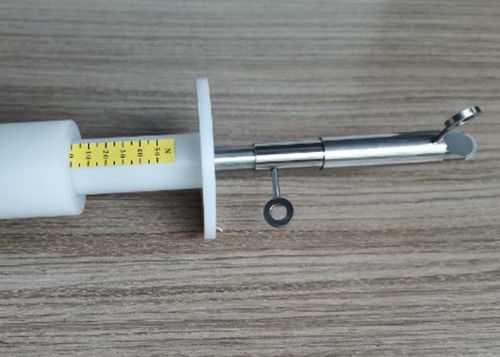

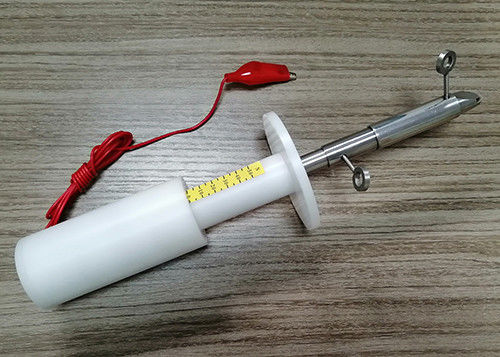

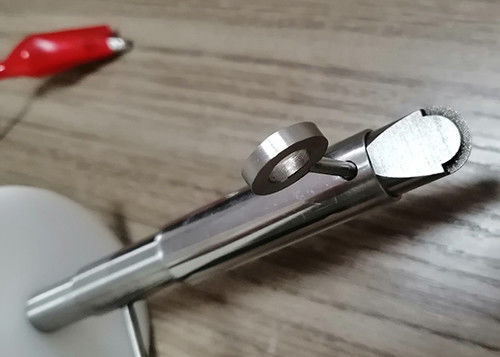

IEC60335 Figure 7 Finger Nail Test Equipment IP Protective Probe
Technical parameters:
| Model | SC-335F7 |
| Probe length | 80mm |
| Angle of the finger nail | 37° |
| Diameter of the test finger | Φ12mm |
Product information:
The test finger nail complies with the IEC 60335 figure 7 standard requirements. It is applicable for the non-removable components which are used for electric shocking water or touching the movement parts to see whether they can go through the mechanical stress that happened in normal use. Thus to judge the components conform to the required protection grade or not. Three kinds of force can be applied. They are 10N,20N,30N.
Standard:
IEC60335 Figure 7, IEC60745 Figure 7, UL1025
Application:
The Finger Nail Probe is indicated to test IEC 60335 and UL requirements, used to check the security of parts that snap together.
It is applicable for the non-removable components which are used for electric shocking water or touching the movement parts to see whether they can go through the mechanical stress that happened in normal use. Thus to judge the components conform to the required protection grade or not.
Test sample:
It is applicable for the non-removable components which are used for electric shocking water or touching the movement parts to see whether they can go through the mechanical stress that happened in normal use.
Feature:With terminal can be use for electric shock test, which can be applied force of 10N, 20N, 30N, 40N and 50N.
