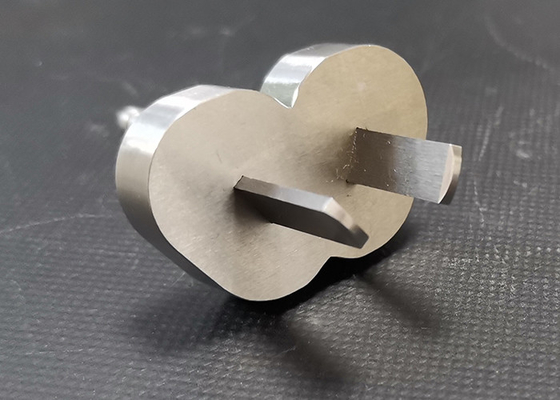

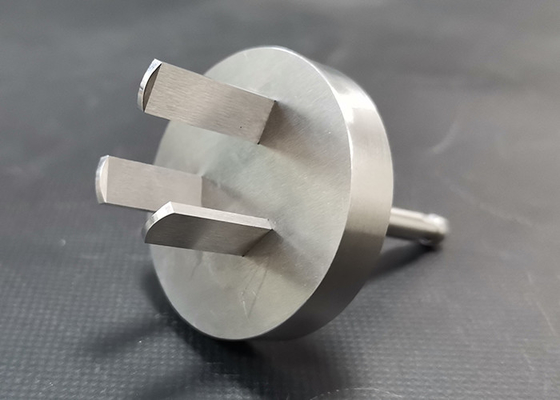

AS/NZS3112 Australia Standard Plug gauge And Socket outlet gauges
1. Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to AS/NZS 3112 standards. And the mainly application industries are electronics, electrical appliances, plugs and sockets and other similar areas.
2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC; Material thermal expansion coefficient is small, dimensions and tolerances is stable and reliable.
Conforms To:
AS/NZS 3112
Specification:

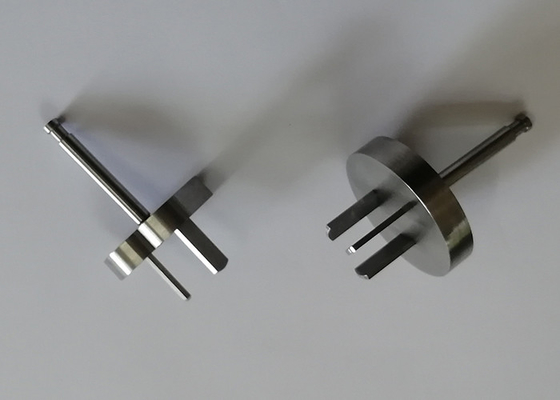

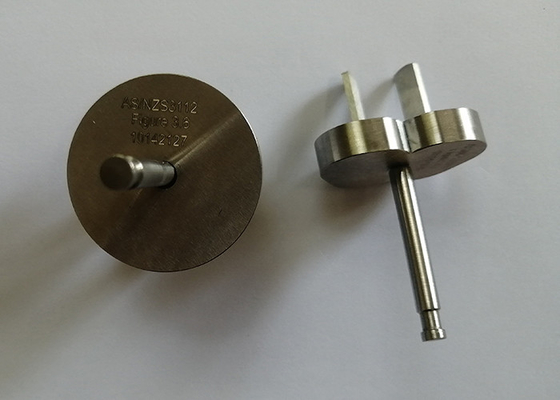

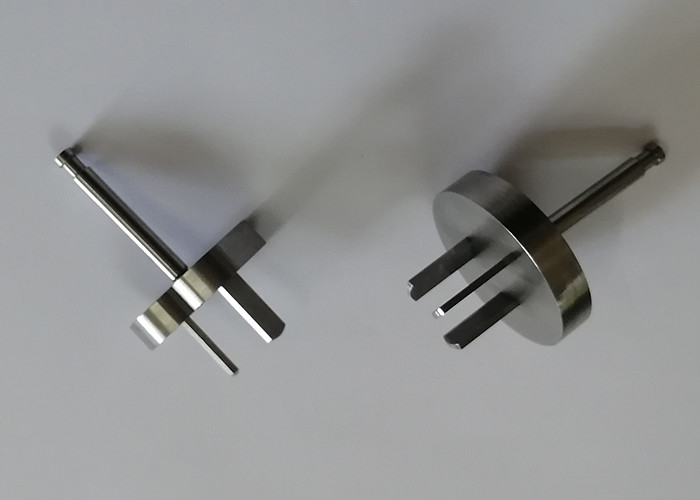

7 | AS/NZS3112-Fig3.6 | device for checking the resistance to lateral strain (three pin gauge) |

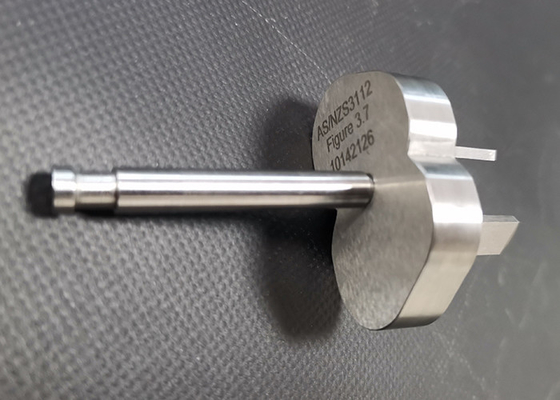

8 | AS/NZS3112-Fig3.7 | device for checking the resistance to lateral strain (two pin gauge) |
9 | AS/NZS3112 figure A1 | gauge for three-pin 250 v max flat-pin plugs |
10 | AS/NZS3112 figure B1 | gauge for two-pin flat-pin 125 v max. plugs (with parallel pins) |
11 | AS/NZS3112 figure C1 | Three-pin test plug with flat pins for full insertion test and the finger test during normal insertion test. |
12 | AS/NZS3112 figure D1 | Three-pin test plug with flat pins for abnormal insertion test. |
13 | AS/NZS3112 figure F1 | Plugs and socket-outlets for use in extra-low voltage circuits |
14 | AS/NZS3112 figure G1 | Three-pin test plug with flat and round pins for the full-insertion test and test finger test during normal insertion test |
15 | AS/NZS3112-2.13.9.1 | 18N Australia plug testing device |
16 | Item 3.3.4.1 | Test gauge of Minimum Pullout force |
17 | Item 2.3.2 /figure 2.3 | Not go gauge of socket aperture |
18 | Item 3.14.8.2/figure 2.1(a),(b),(c) | Plug of socket temperature rise testing |
19 | Item 2.8.1 | Test pin of distance testing gauge |
