| Material: | Mold Steel | Standards: | AS/NZS 3112 |
|---|---|---|---|
| AS/NZS3112 FigureA1: | Rating And Dimensions Of Low Voltage Plugs Gauge Fig A1 (10A, 15A, 20A) | AS/NZS3112 Figure B1: | Rating And Dimensions Of Low Voltage Plugs Gauge Fig B1 |
| AS/NZS 3112 Figure 3.1 A: | Contact Gauge In Fig 3.1 A | AS/NZS 3112 Figure 3.6: | Test Of Lateral Strain Gauge Fig 3.6 |
| AS/NZS 3112 Clause 3.6.3: | Modified Gauge Of Appendix D (diameter Changed To 43.2mm) | AS/NZS 3112 Clause 2.2.3: | Form Of Pin In Figure 2.3 |
| High Light: | Plug Socket Outlet Coupler Gauge,AS/NZS 3112 Coupler Gauge |
||

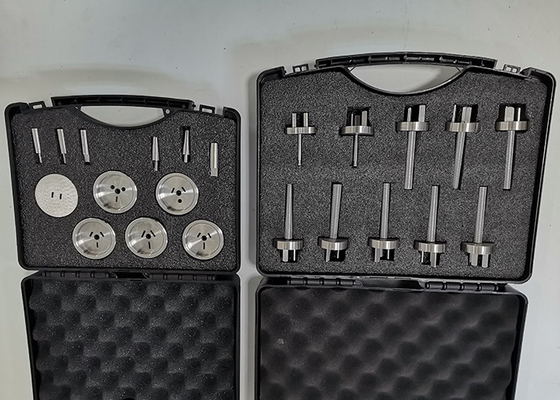

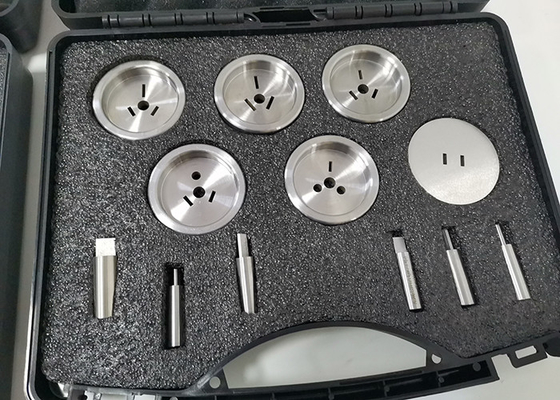

Australian/New Zealand Standard Plugs, socket-outlets and couplers Gauges
1. Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to AS/NZS 3112 standards. And the mainly application industries are electronics, electrical appliances, plugs and sockets and other similar areas.
2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC; Material thermal expansion coefficient is small, dimensions and tolerances is stable and reliable.
Conforms To:
AS/NZS 3112
Specification:
| Product Model | Standard | Product Name |

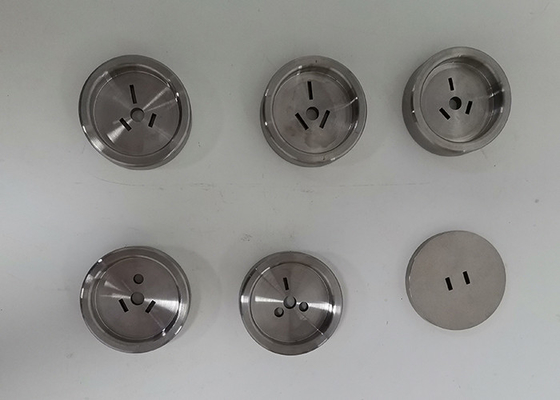

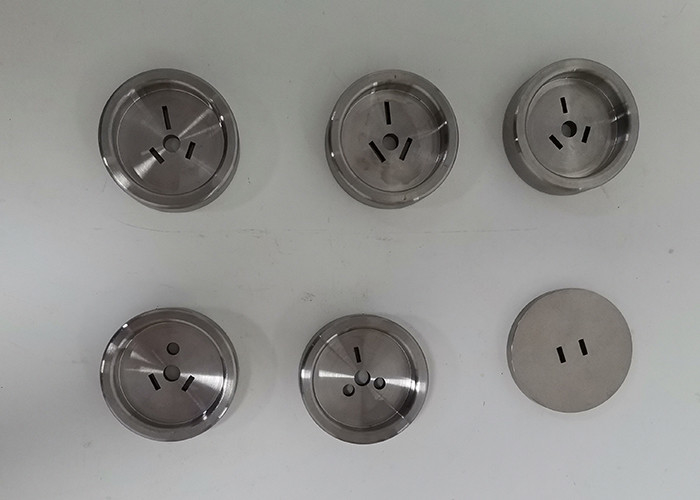

| SC-A2-A1 | AS/NZS3112 FigureA1 | Rating and Dimensions of low voltage plugs gauge Fig A1 (10A, 15A, 20A) |
| SC-A2-B1 | AS/NZS3112 Figure B1 | Rating and Dimensions of low voltage plugs gauge Fig B1 |
| SC-A2-C1 | AS/NZS3112 Figure C1 | During normal insertion test plug in Fig C1(10A,15A,20A) |
| SC-A2-D1 | AS/NZS3112 Figure D1 | During normal insertion test plug in Fig D1(10A,15A,21A) |
| SC-A2-E1 | AS/NZS3112 Figure E1 | Current breaking test /Test of temperature rise test plug with brass pins in Fig E1 |
| SC-A2-F1a | AS/NZS3112 Figure F1 a | Rating and Dimensions of low voltage plugs gauge Fig F1(a) Appendix F |
| SC-A2-F1b | AS/NZS3112 Figure F1 b | Rating and Dimensions of low voltage plugs gauge Fig F1(b) Appendix F |
| SC-A2-G1a | AS/NZS3112 Figure G1 a | During normal insertion test plug in Fig G1(a) of Appendix G |
| SC-A2-G1b | AS/NZS3112 Figure G1 b | During normal insertion test plug in Fig G1(b) of Appendix G |
| SC-A2-X1 | AS/NZS 3112 figure 3.1 abc | Depth of contact No-contact gauge in Fig 3.1 a b c |
| SC-A2-X2 | AS/NZS 3112 figure 3.1 abc clause 3.3.4 | Depth of contact Contact gauge in Fig 3.1 a b c |
| SC-A2-X3 | AS/NZS 3112 figure 3.1 a | Contact gauge in Fig 3.1 a (metal blade 1.58×6.2mm,length 12.60mm) |
| SC-A2-X4 | AS/NZS 3112 figure 3.1 b | Contact gauge in Fig 3.1 b (metal blade 1.58×8.93mm,length 12.60mm) |
| SC-A2-X5 | AS/NZS 3112 figure 3.1 c | Contact gauge in Fig 3.1 c (metal pin: Ф4.7mm,length 12.60mm) |
| SC-A2-X6 | AS/NZS 3112 figure 3.6 | Test of lateral strain gauge Fig 3.6 |
| SC-A2-X7 | AS/NZS 3112 figure 3.7 | Test of lateral strain gauge Fig 3.7 |

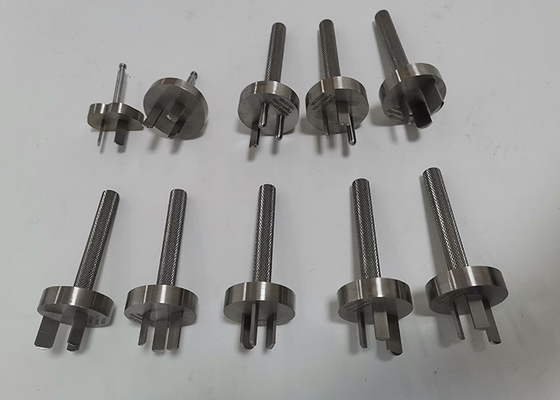

| SC-A2-X8 | AS/NZS 3112 figure 2.1 a1 | Test plug with brass pins in Figure 2.1(a1)10A |
| SC-A2-X9 | AS/NZS 3112 figure 2.1 a1 | Test plug with brass pins in Figure 2.1(a1)15A |
| SC-A2-X10 | AS/NZS 3112 figure 2.1 a2 | Test plug with brass pins in Figure 2.1(a2) |
| SC-A2-X11 | AS/NZS 3112 figure 2.1 b | Test plug with brass pins in Figure 2.1(b) |
| SC-A2-X12 | AS/NZS 3112 figure 2.1 c | Test plug with brass pins in Figure 2.1(c) |
| SC-A2-X13 | AS/NZS 3112 figure 2.1 d1 | Test plug with brass pins in Figure 2.1(d1) |
| SC-A2-X14 | AS/NZS 3112 figure 2.1 d2 | Test plug with brass pins in Figure 2.1(d2) |
| SC-A2-X15 | AS/NZS 3112 figure 2.1 f | Test plug with brass pins in Figure 2.1(f) |
| SC-A2-X16 | AS/NZS 3112 figure 2.1 g | Test plug with brass pins in Figure 2.1(g) |
| SC-A2-X17 | AS/NZS 3112 Clause 3.3.2 | Test pin gauge 1.5N 6.20mm x 1.58mm |
| SC-A2-X18 | AS/NZS 3112 Clause 3.3.2 | Test pin gauge 2N 6.20mm x 1.58mm |
| SC-A2-X19 | AS/NZS 3112 Clause 3.3.2 | Test pin gauge 3N 6.20mm x 1.58mm |
| SC-A2-X20 | AS/NZS 3112 Figure 2.1 | Test Jig |
| SC-A2-X21 | AS/NZS 3112 Clause 2.13.8 | Wooden mounting box in Figure 2.9 |
| SC-A2-X22 | AS/NZS 3112 Clause 2.13.8 | Pin clamping unit in Figure 2.10 a, b, c |
| SC-A2-X23 | AS/NZS 3112 Clause 3.6.3 | modified gauge of Appendix D (diameter changed to 43.2mm) |
| SC-A2-X24 | AS/NZS 3112 Clause 3.14.2 | metallic enclosure H90mm x W60mm xD40mm with fixing hole |
| SC-A2-X25 | AS/NZS 3112 Clause 2.2.3 | Form of pin in Figure 2.3 |
