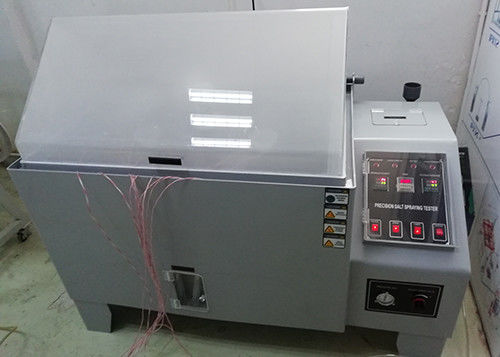

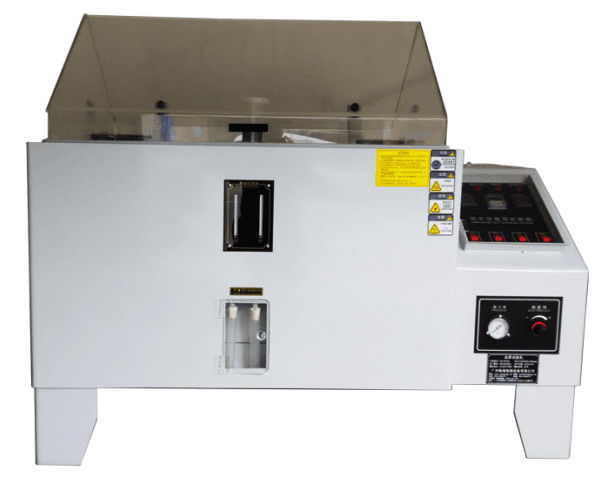

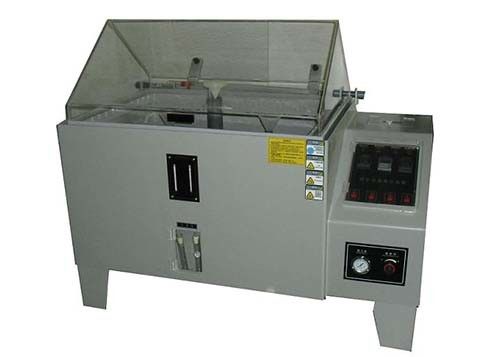

ASTM B117 Environmental Testing Chambers , Salt Spray Test Chamber

ASTM B117 Environmental Testing Chambers , Salt Spray Test Chamber

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  ASTM B117 Environmental Testing Chambers , Salt Spray Test Chamber Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-SST
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 1000-5000 unit
Packaging Details: Carton
Delivery Time: in 15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 999 units per month
Detailed Product Description
Standards: ASTM B117, ASTM G85, ASTM D1141-98 Test Temperature: Room Temperature ~ 55℃
Spraying Method: Continuous And Periodic Spray Type Brine Temperature: 35℃±1℃
Spray Quantity: 1.0~2.0 Ml / 80cm2 / Hr Equipment Material: Both Inside & Outside Shell Adopt P.V.C Rigid Plastic Board
PH Value: Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2 Multiple Safety Protection Devices: Current Discharge Protection, Over Pressure Protection, Over Temperature Protection, Over Load Fuse Protection
High Light:

ASTM B117 Environmental Testing Chambers


ASTM G85 Environmental Testing Chambers


SGS salt spray test chamber

Salt Spray Corrosion Testing Chamber Easy Operation Programmable



Salt Spray Test Chamber Confirm Standards:

ASTM B117, ASTM G85, ASTM D1141-98


DIN 50942, DIN 53 167

ASTM B 117-73, ASTM B 287-74, ASTM B 368-68

DIN EN 60068-2-11

BS 1224, BS 2011, BS3900 F4, BS 3900 F12, BS 5466 Part 1, BS 5466 Parts 2+3

NFX 41002

AS 21331 Section 3.1

SIS 1841190

JIS Z 2371


Salt Spray Test Chambers Parameters:

Model SC-SSC-90L
Internal Size (L×W×H) 900x600x500mm
External Size (L×W×H) 1410x880x1280mm
Equipment Material Both inside & outside shell adopt P.V.C rigid plastic board
Temperature Range Room temperature ~ 55℃
Temperature Fluctuations ≤±0.5℃
Temperature Uniformity ≤±2℃
Temperature Precision ±1℃
Spraying method Continuous and Periodic spray type
Test Chamber Temperature Salt Spray Method (NSS ACSS)35±1℃
Corrosion-resistant Testing Method (CASS) 50±1℃
Saturated air Barrel Temperature Salt Spray Method (NSS ACSS)47±1℃
Corrosion-resistant Testing Method (CASS) 63±1℃
Brine Temperature 35℃±1℃
Spray Quantity 1.0~2.0 ml / 80cm2 / hr
PH value Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume 270L
Brine Tank Capacity 25L
Multiple Safety Protection Devices Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories Testing Salt/ Measuring tank/Nozzle Equipment x 1 set
Air source 1HP Air pump (provided by buyer)


Salt Spray Test Chamber Description:
Salt Spray Test Chamber is an international certification standardization and popular corrosion test method for checking

the corrosion resistance of materials and surface coatings.
Salt spray test chamber is the inexpensive, fastest, standard and repeatable ,mainly used to detect salt spray corrosion resistance of the material

or material surface coating which often in corrosive environment . The salt spray chamber is equipped with an intelligent salt spray test system

that enables quick and standardized conversion of test modules. Automatically adjust the test temperature in the work peace

(Salt Spray Method (NSS ACSS) 35 ± 1 ° C, Corrosion-resistant Testing Method (CASS) 50 ± 1 ° C).


Salt Spray Test Chamber Application:

Salt spray test chamber is mainly artificial simulation of corrosion standard environment, used to test long-term corrosive environment in the material

or surface coating corrosion resistance. Salt spray test chamber widely used in hardware, electroplating, electronics, chemicals, automotive,

aviation, coatings, wire and cable, circuit boards, communications and other industries.


Experimental space volume:
60L/90L/120L/160L/800L (can be customized)


The table parameters is for the company Standard Model parameters,

we support customer customization parameters.
