| Material: | Mold Steel | Standards: | AS/NZS 3112 |
|---|---|---|---|

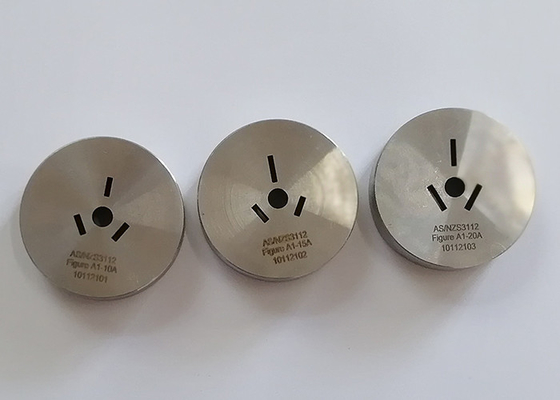

| AS/NZS3112 FigureA1: | Rating And Dimensions Of Low Voltage Plugs Gauge Fig A1 (10A, 15A, 20A) | AS/NZS3112 Figure B1: | Rating And Dimensions Of Low Voltage Plugs Gauge Fig B1 |
| AS/NZS 3112 Figure 3.1 A: | Contact Gauge In Fig 3.1 A | AS/NZS 3112 Figure 3.6: | Test Of Lateral Strain Gauge Fig 3.6 |
| AS/NZS 3112 Clause 3.6.3: | Modified Gauge Of Appendix D (diameter Changed To 43.2mm) | AS/NZS 3112 Clause 2.2.3: | Form Of Pin In Figure 2.3 |
| High Light: | Australia Standard Plug Gauge,AS/NZS3112 Plug Gauge,Fig 3.6 Socket Outlet Gauge |
||

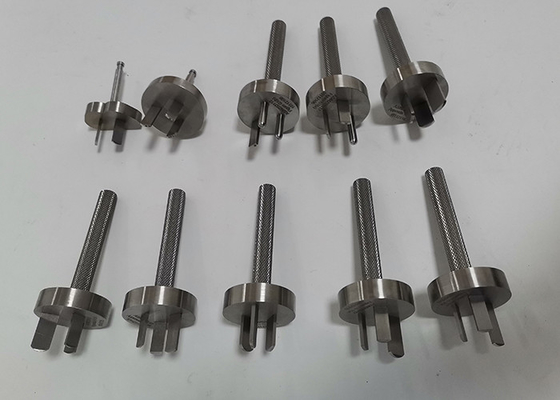

AS/NZS3112 Australia Standard Plug gauge And Socket outlet gauges
1. Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to AS/NZS 3112 standards. And the mainly application industries are electronics, electrical appliances, plugs and sockets and other similar areas.
2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC; Material thermal expansion coefficient is small, dimensions and tolerances is stable and reliable.
Conforms To:
AS/NZS 3112
Specification:

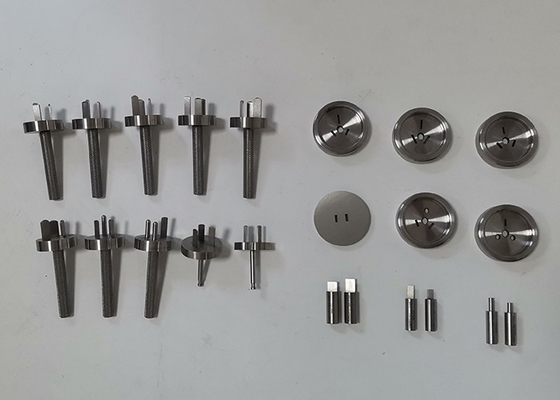

| 1 | AS/NZS3112-Fig2.5 | pressure test apparatus for insulation on insulated plug pins at high temperature |
| 2 | AS/NZS3112-Fig2.6 | impact test apparatus for insulation on insulated plug pins at low temperature |
| 3 | AS/NZS3112-Fig2.9 | Temperature rise testing box |
| 4 | AS/NZS3112-Fig2.10 | Copper of temperature rise testing |
| 5 | AS/NZS3112-Fig2.8 | Plug bending test device |
| 6 | AS/NZS3112-Fig3.1 a.b.c | gauge for depth of no-contact test |

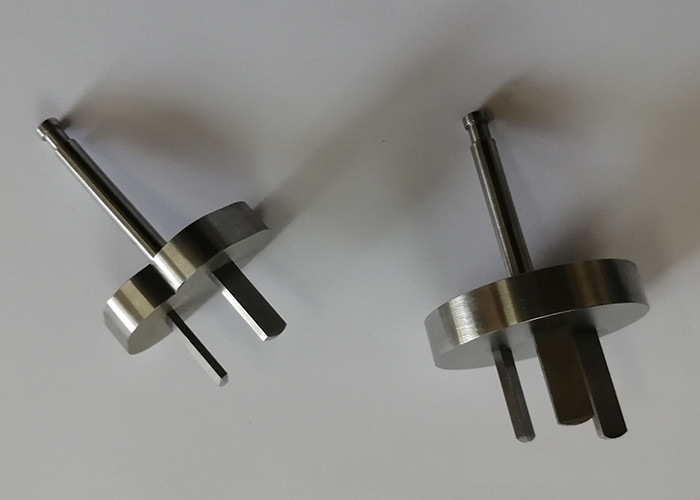

| 7 | AS/NZS3112-Fig3.6 | device for checking the resistance to lateral strain (three pin gauge) |
| 8 | AS/NZS3112-Fig3.7 | device for checking the resistance to lateral strain (two pin gauge) |
| 9 | AS/NZS3112 figure A1 | gauge for three-pin 250 v max flat-pin plugs |
| 10 | AS/NZS3112 figure B1 | gauge for two-pin flat-pin 125 v max. plugs (with parallel pins) |
| 11 | AS/NZS3112 figure C1 | Three-pin test plug with flat pins for full insertion test and the finger test during normal insertion test. |
| 12 | AS/NZS3112 figure D1 | Three-pin test plug with flat pins for abnormal insertion test. |
| 13 | AS/NZS3112 figure F1 | Plugs and socket-outlets for use in extra-low voltage circuits |
| 14 | AS/NZS3112 figure G1 | Three-pin test plug with flat and round pins for the full-insertion test and test finger test during normal insertion test |
| 15 | AS/NZS3112-2.13.9.1 | 18N Australia plug testing device |
| 16 | Item 3.3.4.1 | Test gauge of Minimum Pullout force |

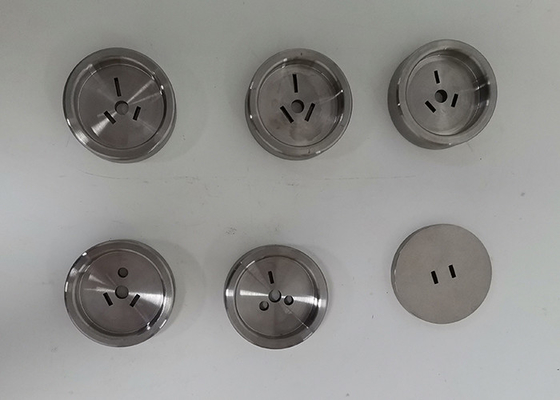

| 17 | Item 2.3.2 /figure 2.3 | Not go gauge of socket aperture |
| 18 | Item 3.14.8.2/figure 2.1(a),(b),(c) | Plug of socket temperature rise testing |
| 19 | Item 2.8.1 | Test pin of distance testing gauge |
