| Standards: | BS1363 Figure 17a | Name: | Test Apparatus For Temperature Rise Test |
|---|---|---|---|
| Function: | For Temperature Rise Test | Test Cabinet Material: | 10mm Nominal Plywood |
| Test Cabinet Finish: | Internal. Two Coats Of Matt Paint. BS4800 Colour No.08 C35. | Test Cabinet Dimensions: | Internal.500mmX500mmX500mm With A Tolerance Of +-10mm For Each Dimension. |
| Location: | Inimum Clearance From Adjacent Surfaces, Measured Horizontally 150mm On All Sides, Measured Vertially 300mm Above, 500mm Below. | Wooden Mounting Block: | 1 |
| High Light: | OEM Plug Socket Tester,Figure 17a Plug Socket Tester,BS1363 Figure17a Test Apparatus |
||

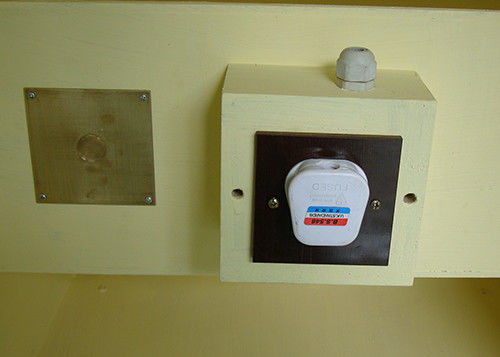

BS1363 Figure17a Test Apparatus For Temperature Rise Test
Parameters:
| Standards | BS1363 Figure 17a |
| Function | For temperature rise test |
| Test cabinet Meterial | 10mm nominal plywood |
| Test cabinet Finish | Two coats of matt paint. BS4800 colour no.08 C35. |
| Dimensions | Internal.500mmX500mmX500mm with a tolerance of +-10mm for each dimension. |

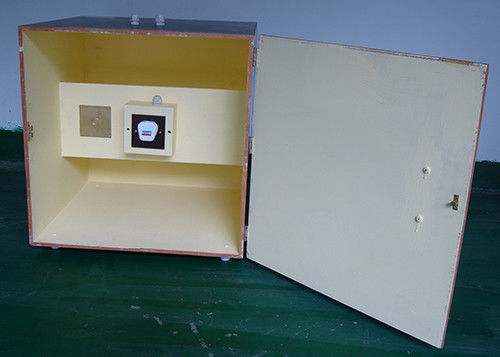

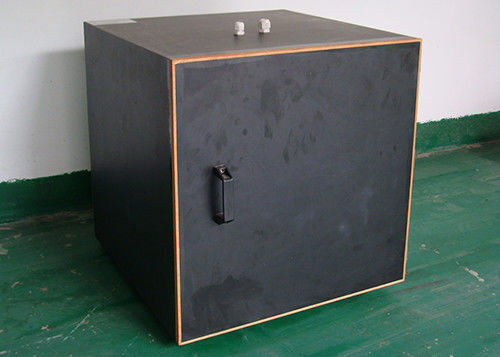

Test cabinet Meterial: 10mm nominal plywood.
Test cabinet Finish: Internal. Two coats of matt paint. BS4800 colour no.08 C35.
Dimensions: Internal.500mmX500mmX500mm with a tolerance of +-10mm for each dimension.
One will to be removable to provide access.
Location: Minimum clearance from adjacent surfaces, measured horizontally 150mm on all sides, measured vertially 300mm above, 500mm below.
BS1363 List of references
Figure17a)-Test apparatus for temperature-rise- test
Figure 17b)-dummy front plate for temperature-rise test
Figure 18-apparatus for flexing test
Figure 19-solid link for test on fuse clips
Figure 20--tumbling barrel
Figure 21-pendulum impact test
Figure 23-apparatus for pressure test
Figure 24-apparatus for ball pressure test
Figure 28-calibrated link
Figure 29-calibration jig for calibrated link
Figure 30-test plug for temperature rise
Figure 32-apparatus for tests on adaptor pins
Figure 33-apparatus for torsion test on pins
Figure 34-test plug
Figure 35-simulated plug and cord devices
Figure 36-apparatus for calibration of turning moment of
simulated plug
Figure 37-turning moment apparatus
Figure 38-solid links for test on fuse clips
Figure1 test pin
Figure 2a)-apparatus for mechanical strength test on resilient covers
Figure 2b)-hardwood block for Figure 2a)
Figure 3-disposition of socket contacts
Figure 4-dimensions and disposition of pins
Figure 5-gauge for adaptor pins
Figure 6-apparatus for testing plug cover fixing screws
Figure 7-mounting plate
Figure 8-plug pin deflection test apparatus for resilient adaptors
Figure 9-apparatus for abrasion test on insulating sleeves of plug pins
Figure 10-apparatus for pressure test at high temperatures
Figure 11-GO gauge for socket-outlet
Figure 12-contact test gauge
Figure 13-test apparatus and circuit for use with contact and non-contact test gauges
Figure 14-non-contact test gauge
Figure 16-withdrawal pull gauges for effectiveness of contact
