Car Inner Ornament Vertical Flammability Test Equipment

Car Inner Ornament Vertical Flammability Test Equipment

small.img.alt small.img.alt small.img.alt

Large Image :  Car Inner Ornament Vertical Flammability Test Equipment Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-CVFT
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: US$ 1000-2000 per unit
Packaging Details: Carton
Delivery Time: in 15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 999 unit per month
Detailed Product Description
Standard: IEC60950 Usage: Flame Testing Equipment
Power/grade: Car Interior Decoration Material Up To Standard: ISO379,ASTM D5132
The Height Between Blast Burning And Test Specimen: 19mm(adjustable Nozzle Centre Below The Centre Of Free End Of Specimen) Metal Comb: Length Is At Least 110mm, Have 7~8 Smooth Crenations Of Every 25mm
Flame Height: Can Be Adjusted From 20mm To 100mm According To Standard Requirement Blast Burner: Nozzle Jet Inner Diameter Ø9.5±0.1mm Effective Length 100mm,have Air Louver
High Light:

IEC60950 Flammability Test Equipment


ASTM D5132 Flammability Test Equipment


SGS astm flammability

Car Inner Ornament Vertical Flammability Testing Equipment ASTM D5132



Product information:

The burn resistance tester conforms to the standard of ISO379,ASTM D5132.

It is suitable for evaluating the horizontal firing characteristic of the interior decoration material of car (including limousine, multi-purpose passenger car, truck and coach).

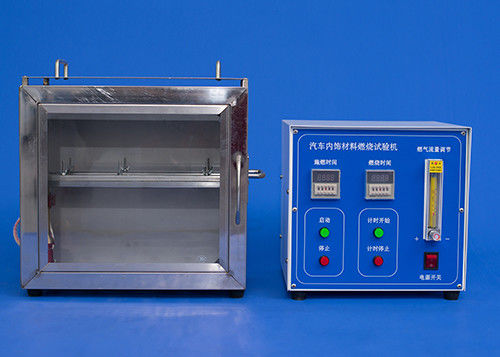

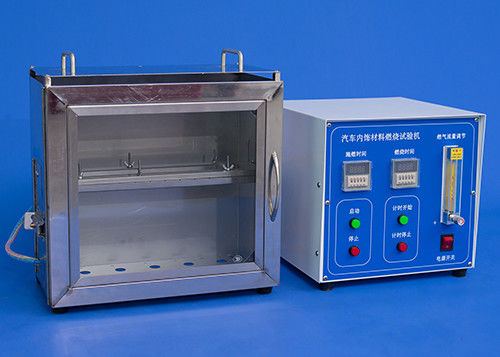

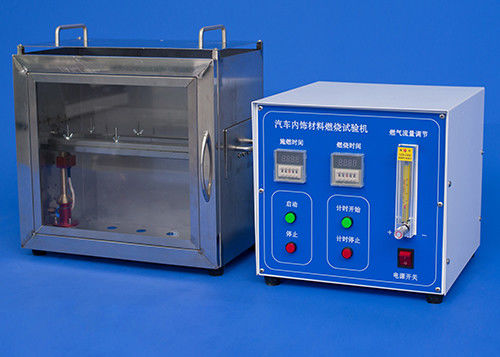

This tester is composed of control box, combustion box body, combustion lamp, solenoid valve, high pressure igniter, thermometer, signal control line and upper and lower bracket of test specimen. The control box and combustion box are made of stainless steel. It has nice exterior with resistance to corrosion of smoke and gas. What’s more, the control system of this device is with high degree of automation. For example, autoignition, automatic air supply, self-clocking and automatically end test. It is easy observe and record and it is stable and reliable to use.


Model specification and technical parameters:

Parameter model SC-CVFT
Power/grade Car interior decoration material
Up to standard ISO379,ASTM D5132
Time for applying flame 9999X0.1s
Burning time 9999X0.1s
Burning angle
The height between blast burning and test specimen 19mm(adjustable nozzle centre below the centre of free end of specimen)
Metal comb Length is at least 110mm, have 7~8 smooth crenations of every 25mm
Blast burner Nozzle jet inner diameter Ø9.5±0.1mm effective length 100mm,have air louver
Flame height can be adjusted from 20mm to 100mm according to standard requirement
Meter covering L*W*H=385mm*204mm*360mm
Gas category high purity liquefied gas
Power supply AC 220V±10%,50Hz
