DIN-VDE0620 Germany Standard Plug Tester Outlets Gauges

DIN-VDE0620 Germany Standard Plug Tester Outlets Gauges

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  DIN-VDE0620 Germany Standard Plug Tester Outlets Gauges Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-VDE-Lehre2345810111416a
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 50-2000 piece

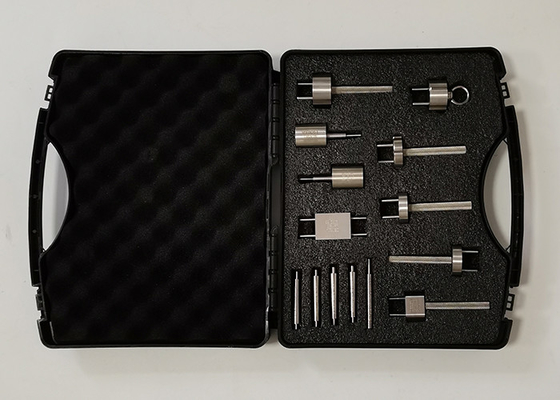

Packaging Details: Plastic Tool Box
Delivery Time: in 15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 999 pieces per month
Detailed Product Description
DIN-VDE0620-1-lehre2: Minimum Opening Width And Minimum Pull Out Force Of Contact Jack DIN-VDE0620-1-Lehre3: Bipolar Plug Force
DIN-VDE0620-1-Lehre4: Bipolar Plug With Earthing Contact Insertion Flanking Force DIN-VDE0620-1-Lehre5: To Test The First Time Contact Closure Interval Gauge
DIN-VDE0620-1-Lehre8: The Maximum Opening Width Of The Contact Jack DIN-VDE0620-1-Lehre10-A: The Impossibility Of The Contact Of The Single Pole Contact Hole A
DIN-VDE0620-1-Lehre10-B: Unipolar Contact Hole Contacts Not The Possibility Of B DIN-VDE0620-1-Lehre11: No Bipolar Plug Ground Contact Can Not Be Inserted

DIN-VDE0620 Germany Standard Plug Tester Outlets Gauges



Lehre 6 – Lehre für den Stiftdurchmesser

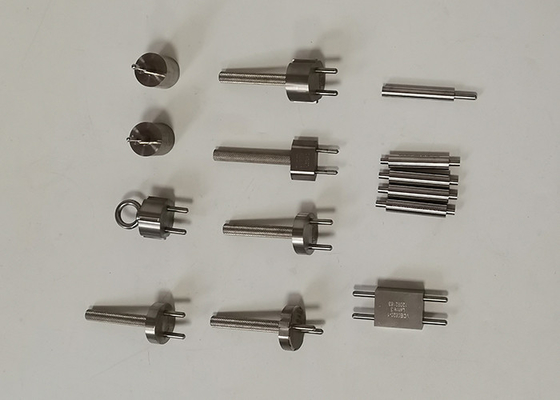

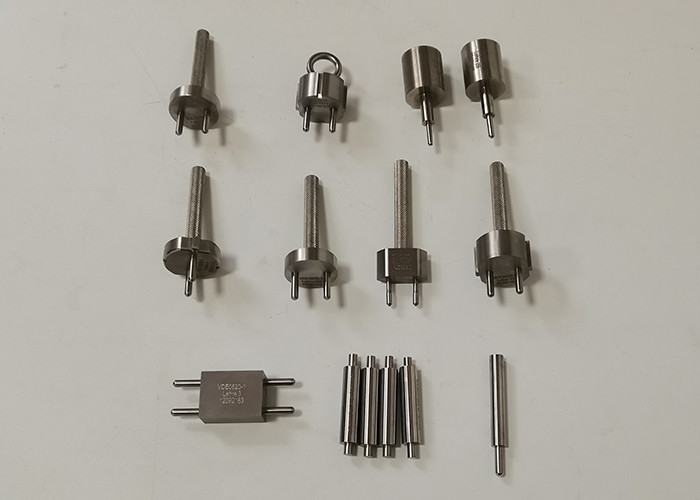

Germany plug and socket gauge is strictly designed and manufactured according to the relevant standard requirements of VDE0620-1:2010.


DIN-VDE0620-1-lehre2 Minimum opening width and minimum pull out force of contact jack
DIN-VDE0620-1-Lehre3 Bipolar plug force
DIN-VDE0620-1-Lehre4 Bipolar plug with earthing contact insertion flanking force
DIN-VDE0620-1-Lehre5 To test the first time contact closure interval gauge
DIN-VDE0620-1-Lehre6 Pin diameter
DIN-VDE0620-1-Lehre7 Pin distance
DIN-VDE0620-1-Lehre8 The maximum opening width of the contact jack
DIN-VDE0620-1-Lehre9 Interchangeability test plug gauge
DIN-VDE0620-1-Lehre10-A The impossibility of the contact of the single pole contact hole A
DIN-VDE0620-1-Lehre10-B Unipolar contact hole contacts not the possibility of B
DIN-VDE0620-1-Lehre11 No bipolar plug ground contact can not be inserted
DIN-VDE0620-1-Lehre12 The possibility of unipolar insertion plug (including 250 grams and 1000 grams of weight and the positioning rack)
DIN-VDE0620-1-Lehre13 After normal operation test of live parts check protection inside the door can not touch the probe
DIN-VDE0620-1-Lehre14 On both sides of the ground test
DIN-VDE0620-1-Lehre15 Live parts check protection inside the door and strengthen the protection of live parts socket can not touch with the probe
DIN-VDE0620-1Fig15 Gauge
DIN-VDE0620-1-Lehre16a The maximum pullout force plug (16a)


For more VDE 0620 Plug and socket outlets gauges, please feel free to contact us.
