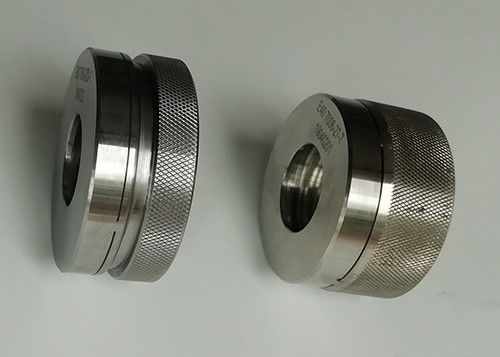

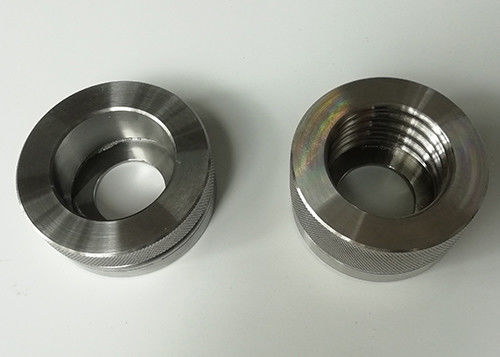

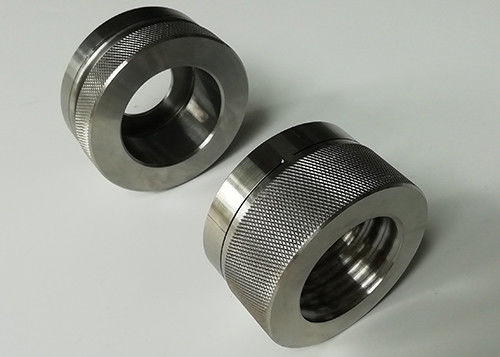

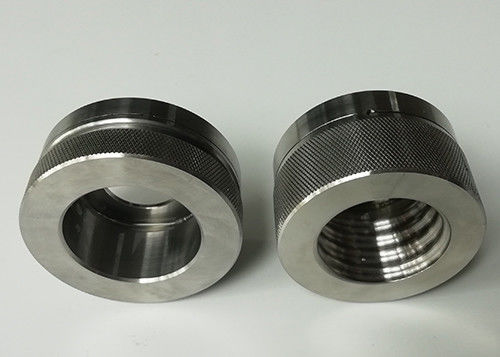

E40 Go Gauge And No Go Gauge Lamp Cap Gauge

E40 lamp cap gauge, IEC60061-3 gauges, go no go gauge, go and no go gauge

E40 Cap Gauge IEC60061-3 On Finished Lamps E screw thread gauge

E40 Lamp cap gauge list:

Purpose and Testing:

(1) 7006-27-7

“GO” gauge for caps on finished lamp

PURPOSE:

To check the maximum dimensions of the screw thread and dimension T1 minimum of E40 caps on finished lamps

TESTING:

When the cap on a finished lamp has been screwed into the gauge as far as it will go , the centre contact shall be co-planar with ,or project beyond , surface X

(2) 7006-28D-1

“NOT GO” gauge for caps on finished lamps

PURPOSE:

To check the minimum outside(major) diameter of the screw thread , dimensiion d, of E40 caps on finished lamps

TESTING:

a) When the gauge is placed over the thread of the cap on a finished lamp ,held cap uppermost, the centre contact shall not project beyond surface  X

b) Only the weight of the gauge itself shall be used in the test.

(3) 7006-52-1

Gauge for finished lamps fitted with E40 caps for testing contact making

PURPOSE:

To check lamp dimensions for contac making in IEC holders

TESTING:

The shape of the lamp with regard to the fit in the lampholder is assumed to be correct, if the lamp can be pushed into the gauge till plane W reaches plane V or projects beyond it.

(4) 7006-53-1

Gauge for finished lamps fitted with E40 caps for testing protection against accidental contact

PURPOSE:

To check protection against accidental contact

TESTING:

The shape of the lamp with regard to protection against accidental contact is assumed to be correct if the test sample being pushed as far as possible into the gauge, plan W does not protude beyond plan V

Confirms:

IEC60061-3
