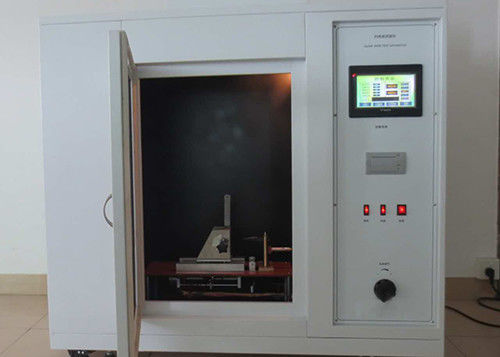

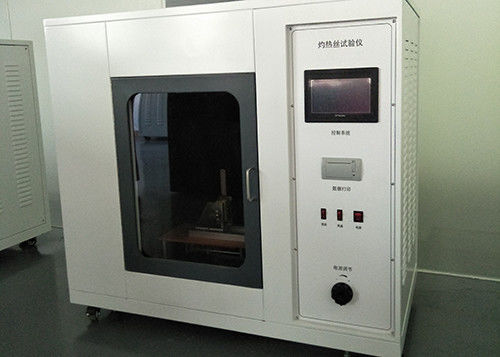

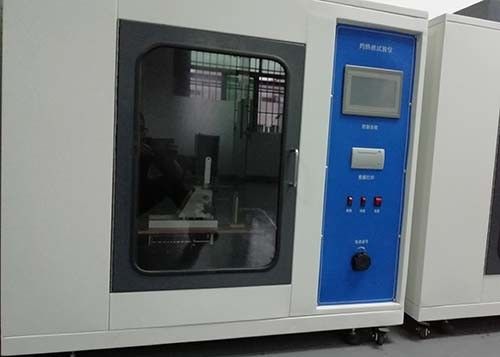

Electrical Flame Testing Equipment , IEC60950 Glow Wire Tester

Electrical Flame Testing Equipment , IEC60950 Glow Wire Tester

small.img.alt small.img.alt small.img.alt

Large Image :  Electrical Flame Testing Equipment , IEC60950 Glow Wire Tester Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-GW01
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: US$ 1000-2000 per unit
Packaging Details: Carton
Delivery Time: in 15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 999 unit per month
Detailed Product Description
Standard: IEC60950 Usage: Flame Testing Equipment
Glowing Filament: Ф4mm ± 0.04mm Ni/Cr(80/20) Special Standard Ring Shape,horizontal Standing Thermocouple: 0.5mm Import K Thermocouple,the Temperature Resistance Of Armour Is 1100 ℃ ( Better Than The Standard Of 1050 ℃ )
Ohmic Heating Temperature Of Glowing Filament: 500 ℃ ~ 960 ℃ ( Digital Display Can Be Preset ) ,temperature Fluctuation < 3 ℃ Specimen Pressure On Glowing Filament: 1.0N±0.2N
Maximum Depth Of Heating: 7mm ± 0.5mm Specimen Movement Speed: 10mm /s ~ 25mm /s
Controller: Touch Screen Controller Volume Of Test Site: ≥ 0.5m 3 Black Background ,background Illuminance ≤ 20Lx
High Light:

CNAS Flame Testing Equipment IEC60950


IEC60950 Flame Testing Equipment


IEC60950 glow wire tester

Electrical Flammability Testing Equipment Glow Wire Test Apparatus




Glow Wire tester is designed to carry out fire hazard testing on electro trchnical products.A digital temperature indicator is fitted which ,in conjunction with the thermocouple supplied ,accurately measures the glow wire temperature .The electrical circuit of the unit is fully protected by fusesand a miniaturesircuit breaker and incorporates mains on switching and push button control of output current.


Technical parameters
Glow wire diameter 4mm±0.04mmNi/Cr(80/20), standard
Temperature range 500-1000°C ±2°C continus adjustable
Thermocouple diameter 0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand temperature -40~ 1100°C
Searing Time 30s±0.1s (OMRON H5CN-XAN-Z digital timer, 0-9999s, presettable)
Light-off Time 0-999.9 s ± 0.1 s, automatic recording, manual timeout
Fireouttime 0-999.9 s ± 0.1 s, automatic recording, manual timeout
Ironing into depth 7mm ± 0.5 mm
Sample pressure 1N ± 0.2 N
Test speed 18±3mm/s
Control Using single chip microcomputer + touch screen control
Power Supply 800VA ,220V, 48-60Hz
Consult standard IEC60695-2-10:2000,UL746A
Controller 7” Touch Screen
Chamber ≥0.5m



1. The glow wire test chamber is an IEC60695-2-10, UL 746A,  and other standards that require the use of flameless ignition source program simulation test items.

2. The glow wire test chamber heats the specified material (Ni80 / Cr20) and shape of the heating wire (nickel chromium wire of Φ 4 mm) with a large current to the test temperature (550 ℃ ~ 960 ℃ for 1 minute, and then the specified pressure (1.0N) Vertically burn the test sample for 30s. Determine the fire hazard of the finished electrical and electronic equipment depending on whether the test sample and the bedding are on fire or hold time. ), Flammability and Flammability Index (GWFI).

3. Glow wire test chamber is suitable for research, production and quality inspection departments of lighting equipment, low-voltage electrical appliances, electrical instruments, and other electrical and electronic products and their components.


Products feature:

Products feature: Adopting solenoid valve switch to control the burning depth of test sample and equipped with measuring gauge, this device has the features of exact and rapid. The test sample will break away automatically from glowing filament after reaching the set time. Adopting the original imported UK LAB K type armour(0.5) whose temperature resistance is up to 1100°(exceed 1050°of standard requirement) , this device is with accuracy temperature control.


Note: The screen can be in English.

Electrical Flame Testing Equipment , IEC60950 Glow Wire Tester 0Electrical Flame Testing Equipment , IEC60950 Glow Wire Tester 1
