Product Details:
Payment & Shipping Terms:
|
| Standards: | IEC60065 Figure 8 | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Stainless Steel | Test Sample: | Audio, Video And Similar Electronic Apparatus |
| High Light: | IEC60065 Test Finger Probe,CNAS Test Finger Probe,IEC60065 coax plugs and sockets |
||

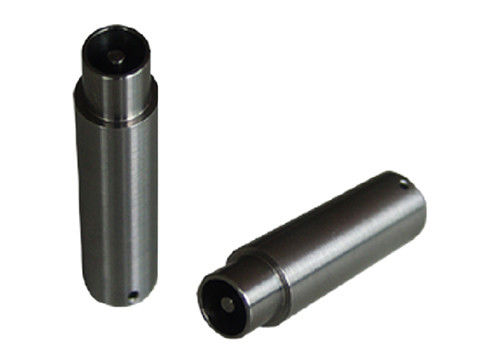

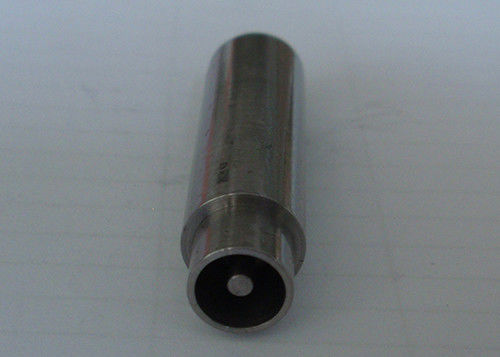

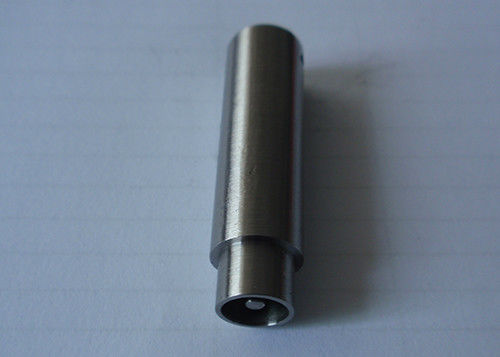

Test Plug For Mechanical Tests On Antenna Coaxial Sockets
Product information:
This test plug conforms to IEC60065 Figure 8 standard requirement.
It is used to test the antenna coaxial socket which is installed on the device and equipped with parts or components which isolate the hazardous live parts and accessible parts. Its structure should be able to withstand the expected mechanical stress that might encounter during the use process. It is made entirely of stainless steel. All parts are machined with precision.
Technical parameters:
| No. | Item | Index value |
| 1 | a | 9.576 0 -1 |
| 2 | b | 8.05 minimum |
| 3 | c | 2.438 0 -1 |
| 4 | d | 9.1 minimum |
| 5 | e | 7.112 minimum |
| 6 | f | 0.8±0.4 |
| 7 | g | 40±0.4 |
| 8 | h | 12±0.4 |
| 9 | j | 43±0.4 |
| 10 | k | 0.3 |
| 11 | bore diameter | Ф1.5 |
