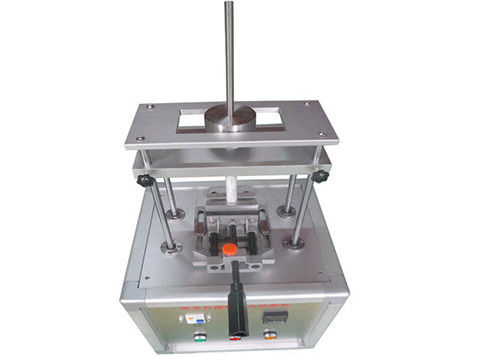

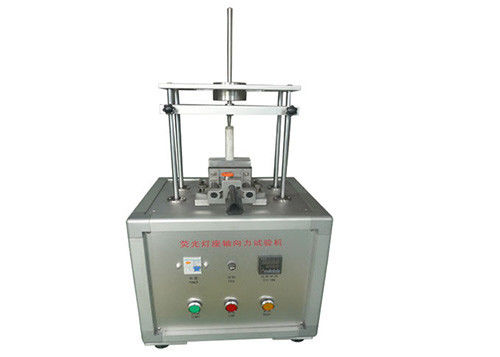

Fluorescent Lamp Holder IEC60598-1 Axial Force Test

Fluorescent Lamp Holder IEC60598-1 Axial Force Test

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Fluorescent Lamp Holder IEC60598-1 Axial Force Test Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-FFT
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 300-1000 piece
Packaging Details: Carton
Delivery Time: in 15 work days
Payment Terms: T/T, Western Union, MoneyGram, D/A
Supply Ability: 999 units per month
Detailed Product Description
Standards: IEC60598-1 Clause 4.4.4 Test Content: Axial Pressure
The Axial Force: 15N (bar Weight), 30N (superimposed By A 15N Vias Weight Onto The Bar) Fixtures: V-type Fixture, Front And Back Adjustable
Holding Specimen Height Range: 0-250mm Axial Pressure Is Applied To The G5 Lamp Holder: 15N
Axial Pressure Is Applied To The G13 Lamp Holder: 30N Power: 220V 50Hz
High Light:

IEC60598-1 Axial Force Test


15N Axial Force Test


30N Luminaries Test Equipment

Fluorescent Lamp Holder Axial Force Tester



Technical parameters:

Power 220V 50Hz
The axial force 15N (bar weight), 30N (superimposed by a 15N vias weight onto the bar)
Fixtures V-type fixture, front and back adjustable
Holding specimen height range 0-250mm


Product information:

The test equipment is designed and manufactured according to IEC60598-1 clause 4.4.4 standard test item requirements,

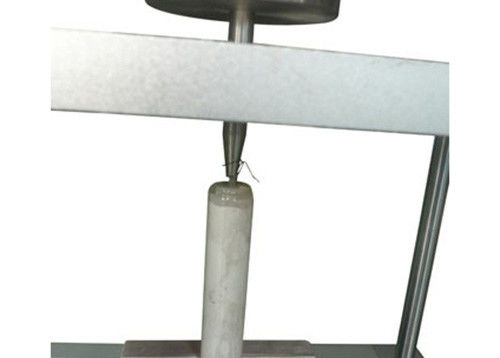

test content: axial pressure is applied to the G5 lamp holder of 15N, 30N axial pressure exerted on the G13 lamp holders, pressure holding time I minutes, then quit, deformation detection lamp holder shall not exceed the amount of light foot length of 1 / 4.

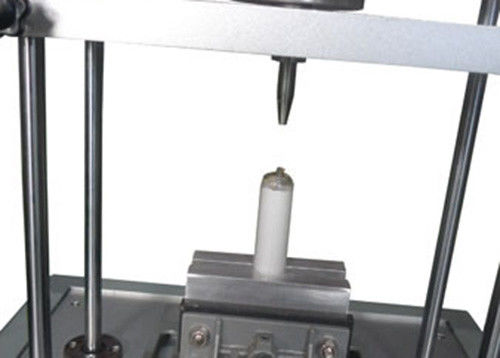

It relates to an axial force testing device for a fluorescent lamp holder. The axial force testing device is characterized by comprising a base, wherein a test seat for positioning the lamp holder is arranged in the middle of the base, one side of the test seat is provided with a range finder, the other side of the test seat is provided with a linear guide rail, a thrust seat is installed on a sliding block of the linear guide rail, a pressure sensor and a test pressure head are installed on the thrust seat, and a stepping motor is connected with the thrust seat through a screw rod and a screw rod nut.


Guangzhou Shice Equipment Co., Ltd. (hereinafter referred to as Guangzhou Shice) is the one professional focus on IEC testing equipments, IP waterproof testing equipments, electronic testing products and other testing products. Guangzhou Shice is professionally dedicated in providing laboratory testing equipment. We are now the high-tech enterprises with technical superiority and R & D capabilities in test instruments industry.


Guangzhou Shice are designed and manufactured as per the requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc. Our main products are: waterproof and dustproof (IP) environmental test equipment; switch, plug, socket and coupler test equipment; mechanical strength impact test equipment; material fire hazard test equipment, enclosure protection test probes; household appliances safety test equipment; wire and cable test equipment; luminaires test equipment; electric tools test equipment. Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.
