Product Details:
Payment & Shipping Terms:
|
| Function: | Lamp Cap Twist Testing | Type: | HP-50 |
|---|---|---|---|
| Measure Range: | 0.04-5.00N.m | Accuracy: | 2 Level |
| Sampling Rate: | 1000Hz | Power Supply: | High Capacity Lithium Battery 7.4V |
| Full Power Continuous Use: | 50 Hours | Size: | 12mm X 230rnm X 651mm |
| High Light: | 15V Digital Torque Meter,5N.m Digital Torque Meter,0.04N.m electronic torque meter |
||

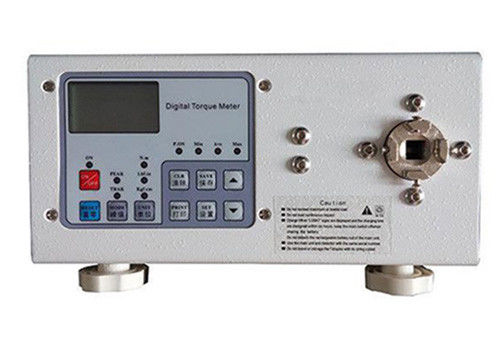

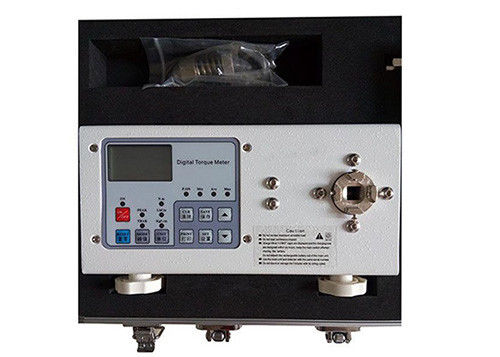

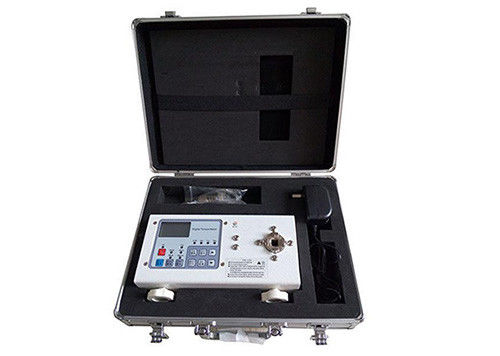

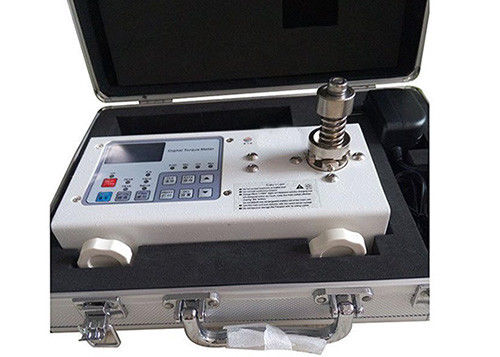

High Accuracy Digital Torsion Meter Easy Operate Torque Tester
Torsion Parameters:
| Type Parameters |
HP-50 |
|
Measuring range Kgf.cm N.m Lbf.in |
0.5-50.0 0.04-5.00 0.5-45.0 |
| Accuracy | 2 Level |
| Sampling rate | 1000HZ |
| Power supply | High-capacity lithium battery:7.4V |
| Charging time | ≥8 hours |
| Full power continuous use | 50 hours |
| Battery life | ≥500 times |
| Size | 1 2mm x 230rnm x 651mm |
| Weight | 2 kg |
| Battery charger | Input:AC 230V±10V, 50HZ. Output:LDC 15V 250mA |
Digital Torsion Meter Information:
The Torsion Meter is designed and manufactured for a variety of torque an intelligent measurement tester.
Mainly used for measuring and testing a variety of electric screwdriver, pneumatic size screwdriver,
torsion screwdriver and torsion wrench torque; correcting electric screwdriver, pneumatic screwdrivers,
torque screwdrivers and torque wrenches, torque cap torque to conform need; you can also measure the
torsion of other tools, such as: a variety of fixtures.
The torsion meter simple operation, high accuracy, full-featured, easy to carry, suitable for a variety of industrial products
and service enterprises.
Torsion Meter Features:
1. Torque orientation.
2. Automatic alarm settings.
3. Can be stored and printed 10 test data.
4. Automatic calculation of the average of the data stored.
5. Can easily switch between Kgf.Cm, Lbf.in, Nm.
6. With peak hold function.
7. Shows exactly lithium battery.
8. 1-60 minutes adjustable-free operation of automatic shutdown of the power design.
9. Green high-capacity lithium battery (1800 mA.h), safety automatic charge control.
10. A touch of button, durable, reliable, easy to operate.
11. Can be connected to the computer and displayed in real time the force value curve.
Precautions:
1. Do not overload torque test, be sure to test the range of the torque tester
test torque, otherwise, would permanently damage the sensor torque tester, a serious danger.
2 Do not knock or place objects on the LCD screen, to prevent damage to the LCD screen.
3. Do not use nails, sharp or pointed objects pressing the function key; but can not loosen the screws torque test head.
4. Do not use a torque tester in water, oil or other liquids spilled place to be the torque tester stored in a cool, dry place and no vibration, in order to ensure the stability and accuracy of the test data.
5. Do not open the device, easily adjust non-electrical components inside the device.
6. The device is a precision calibration equipment should be in use and handling gently.
