| Standards: | IEC60061-3 | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Mold Steel | 7006-10-8: | Not Go Gauges For Caps On Finished Lamps BA9,B15,B22&BY22d |
| 7006-11-8: | Go Gauges For Caps On Finished Lamps BA9,B15,B22&BY22d | 7006-4A-2: | B22 Or B15 Diametrical Position Of The Pin Insertion In Lampholder |
| 7006-4B-1: | B22or B15 Diametrical Position Of The Pin Retention In Lampholder | IEC60968 Figure 3: | B22d Torque Test Gauges |
| High Light: | IEC60061-3 IEC Test Equipment,B15 IEC Test Equipment,B22 lamp cap gauge |
||

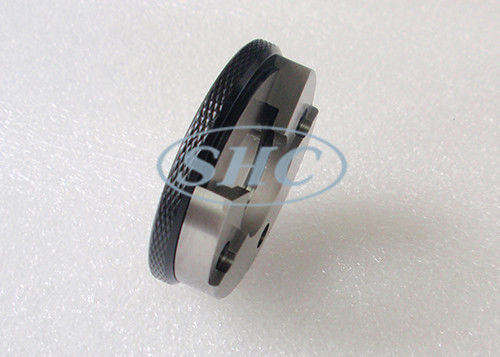

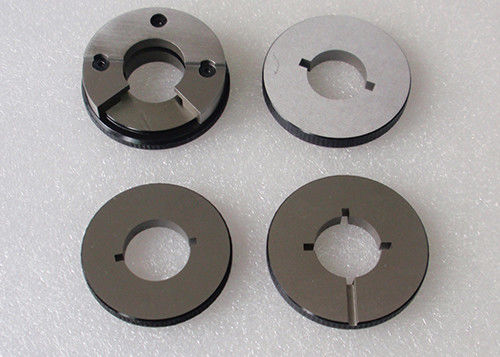

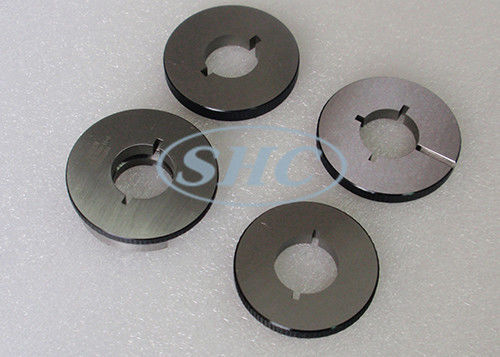

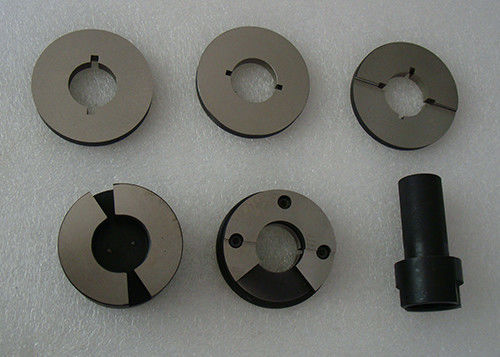

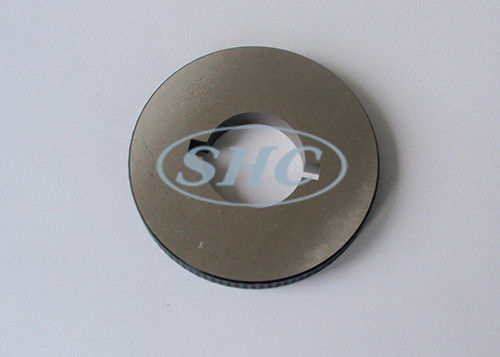

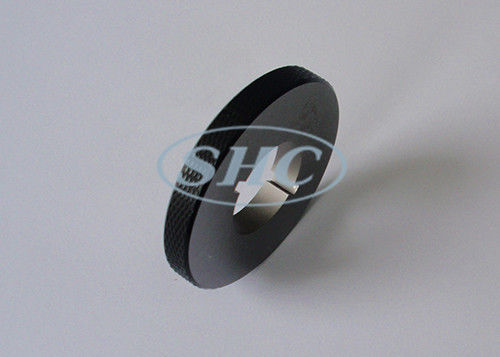

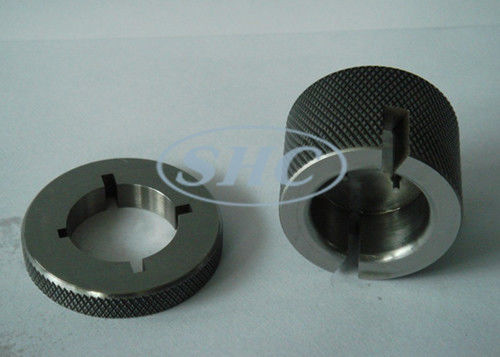

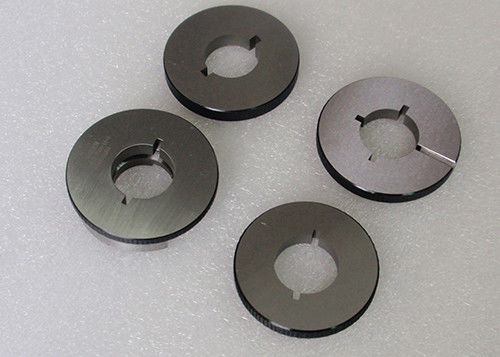

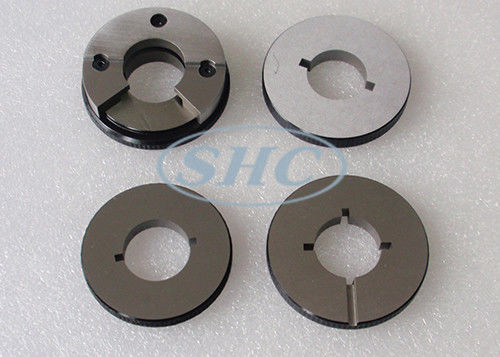

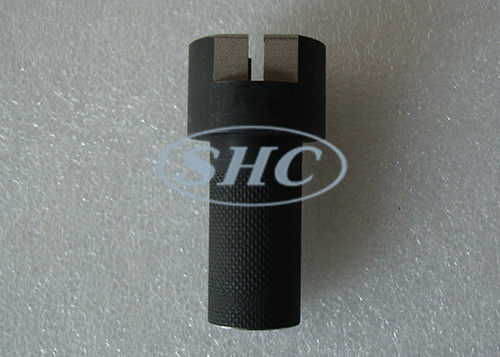

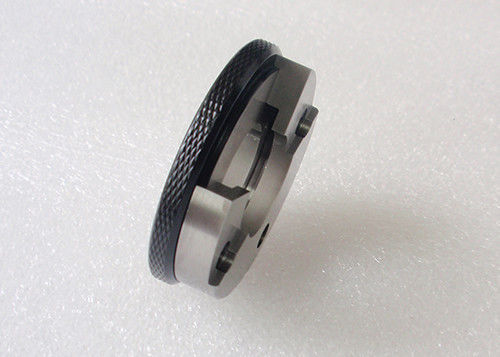

B22 Lamp Cap Gauge Go And Not Go Gauge Bayonet Gauge IEC60061-3
Specification:
| Standard | Product Name |
| IEC60061-3,7006-10-8 | "Not Go"gauges for caps on finished lamps BA9,B15,B22&BY22d |
| IEC60061-3,7006-11-8 | "Go"gauges for caps on finished lamps BA9,B15,B22&BY22d |
| IEC60061-3,7006-4A-2 | B22 or B15 Diametrical position of the pin Insertion in lampholder |
| IEC60061-3,7006-4B-1 | B22or B15 Diametrical position of the pin Retention in lampholder |
| IEC60061-3,7006-3-1 | Acceptance gauge for B22d caps intended for automatic wire threading |
| IEC60061-3,7006-19-2 | "Go"gauges for caps B22d-3(90◦/135◦)/25*26 on finished lamps |
| IEC60968 Figure 3 | B22d torque test gauges |
| IEC60061-3,7006-12-8 | Plug gauges for lampholders BA21, B15&B22 |
| IEC60061-3,7006-15-7 | Gauges for checking contact position and contact force in bayonet lampholders B22d-3((90◦/135◦) |
| IEC60061-3,7006-20-4 | Plug Gauges for bayonet lampholders B22d-3((90◦/135◦) |
| IEC60061-3,7006-12A-2 | Supplementary "Go" gauges for lampholders B22d & BY22d |
| IEC60061-3,7006-12B-2 | "Not Go" Retention gauges for lampholders B22 |
| IEC60061-3,7006-15A-2 | Gauges for checking contact position and contact force in bayonet lampholders B22d&BY22d |
| IEC60061-3,7006-13-5 | Gauges for slots in lampholders B15d,B22d, B22d-3&BY22d |
| IEC60061-3,7006-17B-1 | Plug gauges for lampholders BY22d |
Application:
7006-11-8 "Go"gauges for caps on finished lamps BA9,B15,B22&BY22d
7006-10-8 "Not Go"gauges for caps on finished lamps BA9,B15,B22&BY22d
7006-4A-2 GAUGES FOR TESTING THE INSERTION OF CAPS IN LAMPHOLDERS
7006-4B-1 GAUGES FOR TESTING THE RETENTION OF CAPS IN THE HOLDER
7006-3-1 Acceptance gauge for B22d caps intended for automatic wire threading
IEC60968 Figure3 B22 torque test gauge
Conforms To:
IEC60968-1, IEC60061-3
Guangzhou Shice Equipment offers a wide range of gauge to meet the most common standards including those from IEC, EN, UL, GB,DIN,VDE and others. Such standards require the checking of size & definition etc. these gauges are constructed from senior stainless steel and appropriate steel with a hardness of at least 60 HRC and a roughness according to standard require. Each gauge is supplied with a certificate of calibration.
