IEC60065 Flammability Test Equipment , Tracking Test Apparatus

IEC60065 Flammability Test Equipment , Tracking Test Apparatus

small.img.alt small.img.alt

Large Image :  IEC60065 Flammability Test Equipment , Tracking Test Apparatus Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-LTT
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: US$ 1000-10000 per unit
Packaging Details: Carton
Delivery Time: in 15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 999 unit per month
Detailed Product Description
Wind Speed: 0.2m/s Standard: IEC60950
Usage: Flame Testing Equipment Power: AC 220V/50HZ,220 /110 V 50/60 Hz 2 A
Electrode: Platinum Electrode And Brass Electrode Each For A Pair Electrode Dimension: (5±0.1)×(2±0.1)×(≥12),30°slant
Electrode Included Angle And Distance: 60°±5°, Distance Is (4±0.1㎜) Electrode Pressure: 1.00N±0.05N(digital Display Is Optional)
Dropping Liquid Height: 35±5mm Time-delay Circuit: 2±0.1S(in 0.5A Or Larger Current)
High Light:

SGS Flammability Test Equipment


220V Flammability Test Equipment


IEC60065 tracking test apparatus

Tracking Test Apparatus Flammability Leakage Test Equipment IEC60065




TRACKING TEST APPARATUS is intended for determining the degree of protection against formation of conducting paths in solid insulating materials, due to the electric stress and electrolytic contamination of the surface.

This test is complex and the person performing it should be accurate and maintain good cleanliness of test equipment. The repeatability and comparability of test results depend on many different factors. Therefore we designed TRACKING TEST APPARATUS with the following goals:

  • Reliability
  • Maximum repeatability of test results
  • Maximum comparability of test results
  • Ease of operation
  • Ergonomical design


Technical Specification:

Parameter model SC-LTT
Working voltage 220V/50Hz,110V/60Hz
Testing voltage 0~600V adjustable,precision 1.5%
Timing device 9999X0.1S
Electrode Platinum electrode and brass electrode each for a pair
Electrode dimension (5±0.1)×(2±0.1)×(≥12),30°slant
Electrode included angle and distance 60°±5°, distance is (4±0.1㎜)
Electrode pressure 1.00N±0.05N(digital display is optional)
The interval of dropping liquid 30±5S,adjustable
Dropping liquid height 35±5mm
Dropping liquid delay 0.2S(solenoid valve opening time)
Dropping liquid size 45~50 drip/cm3
Time-delay circuit 2±0.1S(in 0.5A or larger current)
Short-circuit pressure drop 8% MAX
Short-circuit current 1±0.1A 1%
Wind speed 0.2m/s
Environmental requirement 0~40℃,relative humidity≤80%,in the place of no obvious vibration and corrosive gas


1) Pannel can be in English.

2) Press button and touch screen for choose.


Main Features:

—Self contained cabinet with large viewing window and internal light

—Easy access to testing area during setup

—Built in exhaust fan

—Control panel has all controls in easy reach including lighting and exhaust

—Platinum Electrodes 99.5% minimum purity

—Alarm sounds if tracking failure occurs for more than 2 seconds.

—Safety interlock on door halts test if the door is opened

—Easy adjustment to test table height

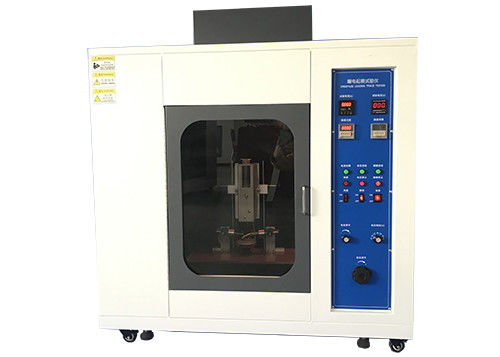

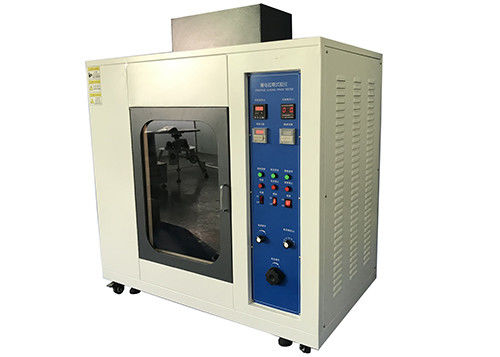

The Tracking Tester is a fully automatic instrument contained in its own cabinet to maximize the safety of the operator. Inside the well lit cabinet, a test specimen is placed on a glass plate and two platinum electrodes are lowered onto the top surface. A gauge block is supplied with the instrument to ensure the electrodes have the proper distance between them. The table height is easily adjustable to ensure the proper angle of the electrodes and height of drops. The rest of the test is controlled from outside the test chamber with the door closed. The voltage, limiting current, drip rate and number of drips are all set on the control panel. An operator should observe the test to see if a flame ignites. The instrument sounds an alarm if there is a tracking failure of at least two seconds.



It is constructed in compliance with IEC 60112, IEC 112, IEC 60335-1, IEC 61058-1, IEC 60065, IEC 60669-1, IEC 60884-1, IEC 60950-1, IEC 61010-1, BS 1363, IEC 60598-1, IEC 60320-1, IEC 60898-1, IEC 60400, IEC 60238, IEC 60730-1, UL746A, DIN53480, ASTM D 3638, VDE 0303, DIN 53480

IEC60065 Flammability Test Equipment , Tracking Test Apparatus 0IEC60065 Flammability Test Equipment , Tracking Test Apparatus 1IEC60065 Flammability Test Equipment , Tracking Test Apparatus 2
