| Standards: | IEC60065 Clause 19.1, IEC60335-1 Clause 20.1, IEC60601-1 Clause 24.1, IEC 60950 Clause 4.1. 1, IEC60065 Clause 19.1 | Application: | To Determine The Stability Of Electric Appliances Which Are Used On A Table Or On The Floor |
|---|---|---|---|
| Angle Range: | 0-30° | Surface Diameter: | 600 800 800 1000 Mm |
| Surface Material: | High-quality Spray Steel Plate | Control: | Manual Control And Electric Control |
| Rotation Speed: | 1r/min | Load Capacity: | 120KG |
| High Light: | 1000mm Inclined Plane Device,800mm Inclined Plane Device,600mm stability tester |
||
IEC60335 Clause 20.1 Electrical Appliances Inclined Plane Safety Tester
Product details:

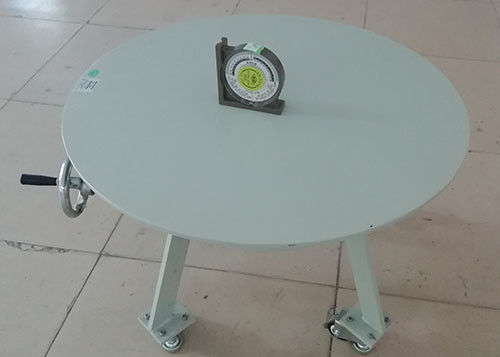

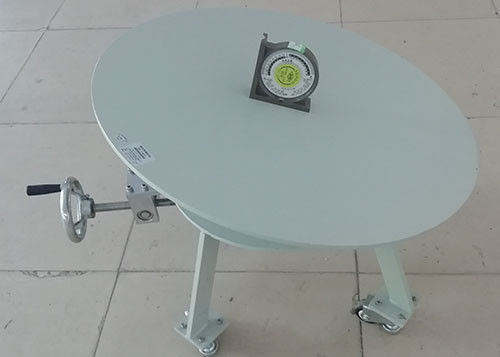

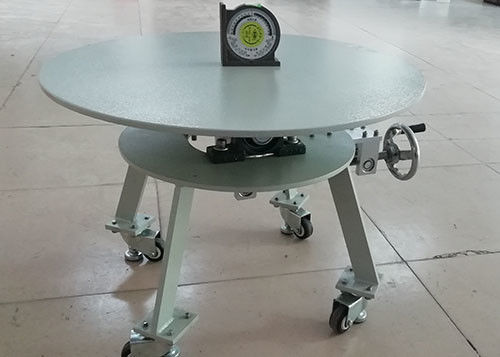

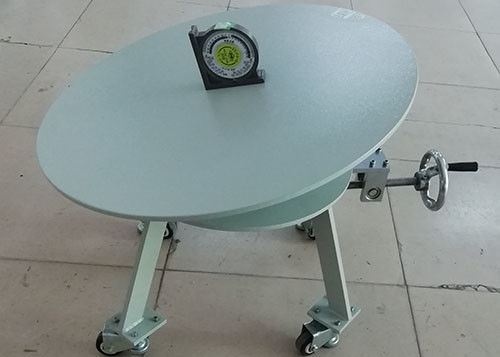

To determine the stability of electric appliances which are used on a table or on the floor, in accordance with IEC60065 clause 19.1, IEC60335-1 clause 20.1, IEC60601-1 clause 24.1, IEC 60950 clause 4.1. 1, IEC60065 clause 19.1. The device consists of a surface and a threaded spindle with handwheel for adjusting the incline of the table board from the horizontal up to 30° Against the horizontal.
Parameters:
| Model |
Surface Diameter |
Surface Material |
Angle Range |
Load Capacity | Rotation Method | Rotation Speed | Remark |
| SC-IPT-06 | 600mm | High-quality spray steel plate | 0-30° | 50kg | Manual/
Electrical |
1r/min | Round table |
| SC-IPT-08 | 800mm | High-quality spray steel plate | 0-30° | 80kg |
Manual / Electrical |
1r/min |
Round table |
| SC-IPT-10 | 1000mm | High-quality spray steel plate | 0-30° | 120kg |
Manual / Electrical |
1r/min | Round table |
| SC-IPT-08B | 800*800mm | Aluminum plate | 0-15° | 80kg | Manual | - | Rectangle table |
| Z represents the version with automatic rotation function driven by the electrical motor | |||||||
Standard Outfit:
1 table board, with supporting frame,
1 base plate with hinges for the supporting frame and for the spindle bearing,
1 threaded spindle with handwheel for adjusting the incline of the table board from the horizontal up to 30° Against the
horizontal,
1 inclination angle measuring instrument, to mount at the table board, for checking the angle of inclination of the table board,
