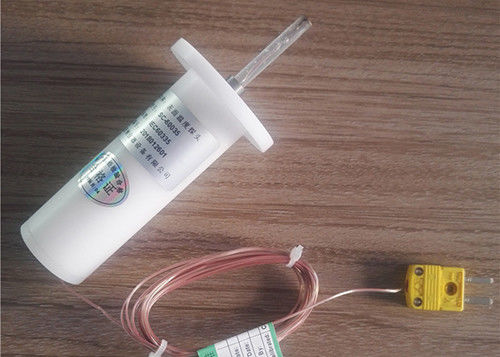

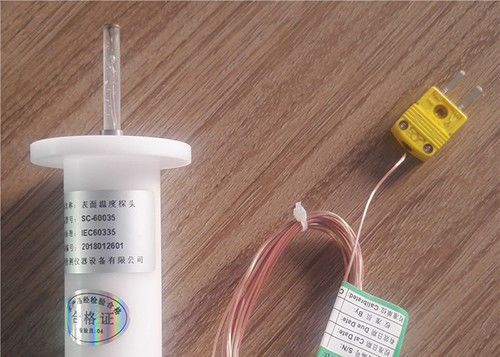

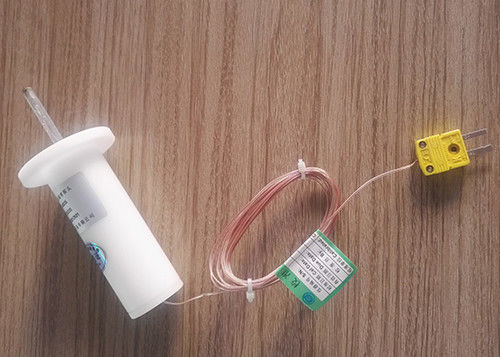

IEC60335 Fig104 Test Finger Probe , 4N Temperature Test Probe

IEC60335 Fig104 Test Finger Probe , 4N Temperature Test Probe

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  IEC60335 Fig104 Test Finger Probe , 4N Temperature Test Probe Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-335F104
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 200-400 unit
Packaging Details: Aluminum toolbox
Delivery Time: in 5 working days
Supply Ability: 999 units per month
Detailed Product Description
Standards: IEC60335-2-11 Figure 104 And IEC60335-2-6-2002 Figure 104 Warranty: 12 Months
Plane Of Measurement: Φ5*0.5mm Tin Copper Plate Drive Pipe: Inner Φ3,outer Φ5
Thermocouple: Φ0.3K Type Force: 4±0.5 N
Application: Measure The Temperature Rise On The Front Surface Material: Nylon
High Light:

IEC60335 Test Finger Probe


4N Test Finger Probe


TUV temperature test probe

Electronic Equipment Surface Temperature Test Probe IEC60335 Fig104



Technical parameters:

Parameters /Model SC-335F104
Plane of measurement Φ5*0.5mm tin copper plate
Drive pipe Inner Φ3,outer Φ5
Thermocouple Φ0.3K type
Force 4±0.5 N

Product information:

This probe conforms to the IEC60335-2-11 figure 104 and IEC60335-2-6-2002 figure 104 standard requirements.

It is mainly used to measure the temperature rise on the front surface of the easily accessible parts of drum-type dryer, upright electric cooker, cooking bench and oven.


Guangzhou Shice Equipment Co., Ltd. (hereinafter referred to as Guangzhou Shice) is the one professional focus on IEC testing equipments, IP waterproof testing equipments, electronic testing products and other testing products. Guangzhou Shice is professionally dedicated in providing laboratory testing equipment. We are now the high-tech enterprises with technical superiority and R & D capabilities in test instruments industry.


Guangzhou Shice are designed and manufactured as per the requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc. Our main products are: waterproof and dustproof (IP) environmental test equipment; switch, plug, socket and coupler test equipment; mechanical strength impact test equipment; material fire hazard test equipment, enclosure protection test probes; household appliances safety test equipment; wire and cable test equipment; luminaires test equipment; electric tools test equipment. Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.


After-sale Services:
--1 year warranty service
--reply within 48 hours and solution provide within 3 working days
--Operation video and English operation manual
--Technical Egineer are avalible for oversea trainning
--Remote control technical consult
--Maintenance plan


Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.


Why Choose Us?
1.We are professional test equipment manufature in china,has excellent experience.
2.We have advanced machine equipment, cost savings.
3.We supply 24 hours online service to slove your every question.
4.We have the best knowledge about the drying machine in USA,UK,CANADA,SOUTH AFRICA, INDIA,AUSTRALIA,ETC.
