IEC60335 Water Immersion Tank IPX8 Waterproof Test

IEC60335 Water Immersion Tank IPX8 Waterproof Test

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  IEC60335 Water Immersion Tank IPX8 Waterproof Test Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: Third part calibration certificate(cost additional)
Model Number: SC-IPX8-H
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD 5000-20000 piece
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 99 units per month
Detailed Product Description
Standard: IEC 60529, EN 60529 Application: Water Spray Testing For IPX7 IPX8
Interior Material: Stainless Steel Power: Electronic
Testing Time: 0-99min Temperature: Room Perature To 130℃
Maximum Limit Pressure: 6 Bar Pressure Adjustment Range: 0 ~ 5bar (can Be Customized)
High Light:

IPX8 Waterproof Test IEC60335


IEC60335 IPX8 Waterproof Test


EN 60529 water ingress test

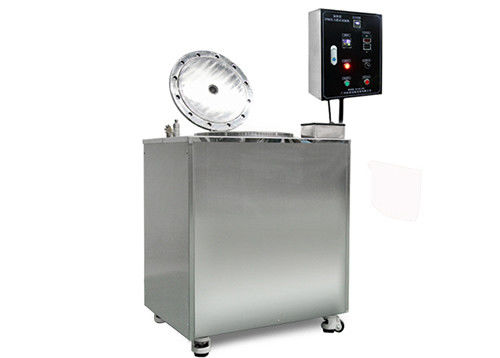

IEC60529 IPX7 IPX8 Water Immersion Tank, IP waterproof test equipment

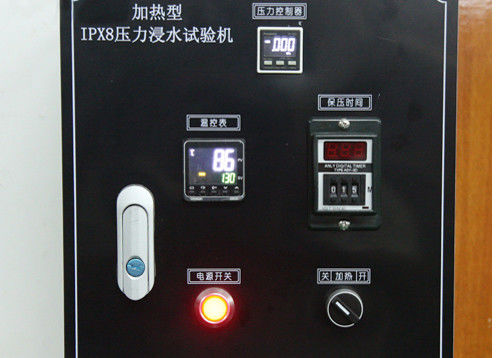

The chamber with heater, temperature range: room temperature to 130℃

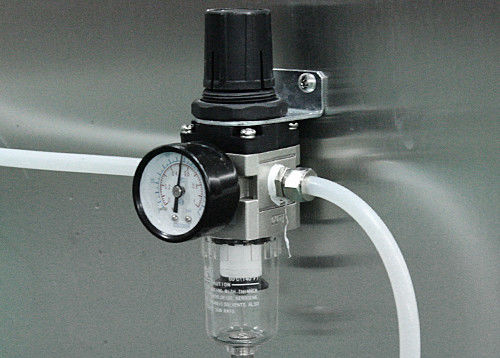

1. Entire tank adopts SUS304# stainless steel high accuracy integrated forming, ensure it will not rust and water-tight after long time use, adjust the test pressure according to the high precision pressure regulating valve. Pressure regulating valve with pressure stabilizing function, it can keep stable test pressure all the time after the pressure has been adjusted.

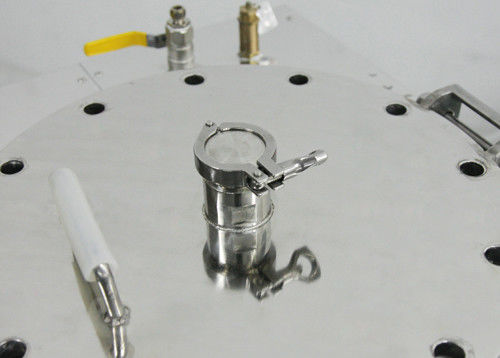

2.The pot cover is rotated and lifted by the screw thread, it can rotate and move away from the hole after lifting. (when pressure is greater than 50m depth test, must use special flange lock to lock cover)

3.The whole tank surface blasting treatment, smooth and beautiful.


Technical parameters:

Pressure vessel Stainless steel tank, diameter 0.8 meter, height 1 meter (can be customized)
Pressure adjustment range 0 ~ 5bar (can be customized)
Pressure system Stainless steel pump + frequency converter
Pressure gauge accuracy 0.25 degree, range: 6bar
Testing time 0-99min
Maximum limit pressure 6 bar
Pressure protection Pressure switch protection
Connection Connect to the water supply equipment by 3/4 high pressure steel wire hose connection



Assessment of enclosures and sealing element whether can ensure good performance of equipment and components after the water test or during the test.

Confirm to standards:

IEC 60529 IPX7 IPX8;

EN 60529 IPX7 IPX8;

IEC 60884-1;

IEC 60598-1;

IEC 60335-1 and so on.


SC-IPX waterproof test machine is according to IEC60529:1989 +A1:1999+A2:2013 (Degrees of protection

provided by enclosures (IP Code), IEC60598, IEC60335 and IEC 60034-5, GB/T-2423.2, GB4208, GB7000.1.

The SC-IPX includes the following test grades: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to

page 51 of IEC60529). It is widely used in the authentication test organization for the products such as electrical

and electronic products, LED luminaires as well as in the relevant quality control department for the waterproof

detection of the enclosures protection grades. The whole SC-IPX waterproof test system includes:
I)Drip Box(SC-IPX12)

The drip box is for IPX1 and IPX2 drip test.

The drip box size is 800x800x75mm(LXWXH).

The diameter of drip hole is 0.4mm. The distance between drip holes is 20mm.

The sample can be over 150kg.
II)Swing Pipe Water Spray Test Equipment (SC-IPX34)

It is for IPX3 and IPX4 test.

The semi-diameter of swing pipe is 1meter(Any other size is also available).

The inside diameter of the swing pipe is 15mm. The sample rotating table diameter is 1000mm

Or other size according to the diameter of the swing pipe, and the height is adjustable.

The rotation speed is 1-5rpm which controlled by PLC panel.

III)Waterproof Jet Test Device (SC-IPX56)

It is for IPX5 and IPX6 test.

With water supply device size is 1000x1000x600m,

the nozzle diameter is 6.3mm (IPX5) and 12.5mm(IPX6).

The water speed is 12.5±0.626L/min for IPX5 and 100±5L/min for IPX6.
IV)Immersion tank Waterproof test Device (SC-IPX7)

It Is for IPX7 test.

The water tank size is 1000x1000x1200mm

Other size can be designed according to your request.

It can test samples up to 120kg.

V)Immersion tank Waterproof test Device(SC-IPX8)

It is for IPX8 test.

It can simulate a water depth of 0-50m.

The water immersion tank diameter is 600mm and the height is 1200mm.

The compressive stress is 10 atmospheres or design according to customer's request.

IEC60335 Water Immersion Tank IPX8 Waterproof Test 0
