| Standard: | IEC60811, IEC60540 | Mandrel: | Ф4, Ф5, Ф6, Ф7, Ф8, Ф10, Ф12, Ф14, Ф16, Ф18, Ф20, Ф24, Ф37.5mm |
|---|---|---|---|
| Rotation Speed: | 5S/ Turn | Control: | Manual |
| Diameter Of Pipe: | Ф3.5, Ф6, Ф10, Ф12, Ф16mm | Name: | Cold Bending Test Machine |
| Test Piece: | 4 And 5 Times | Test Temperature: | The Apparatus Shall Be Held In A Refrigerator Before And During The Test |
| High Light: | IEC60540 Cable Testing Equipment,IEC60540 Cable Testing Equipment,CNAS Cold Bending Test Device |
||

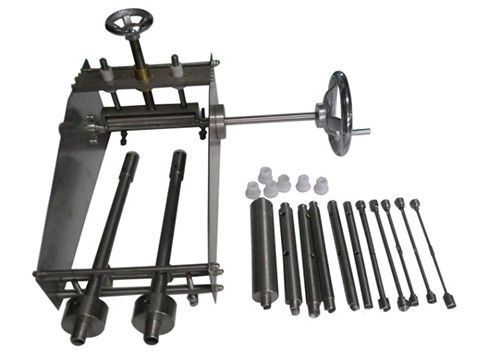

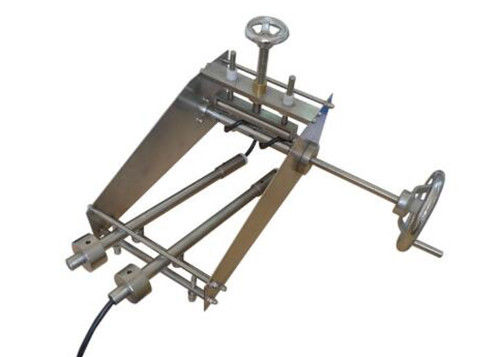

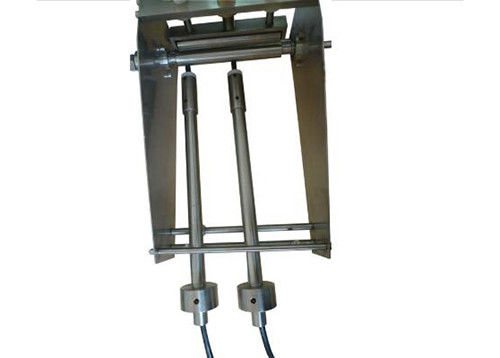

IEC60811 Cold Bending Test Device For Insulating Cable Test Equipment
The bending test apparatus confirms to:
IEC60540
IEC60811 standard
Product information:
The cold bending test machine is used for cold bend test of the circular insulation wire core whose diameter is small and
the sector-shaped insulation wire core which can not be used for dumbbell.
The apparatus shall be held in a refrigerator before and during the test.
The diameter of the mandrel shall be between 4 and 5 times the diameter of the test piece (see below).

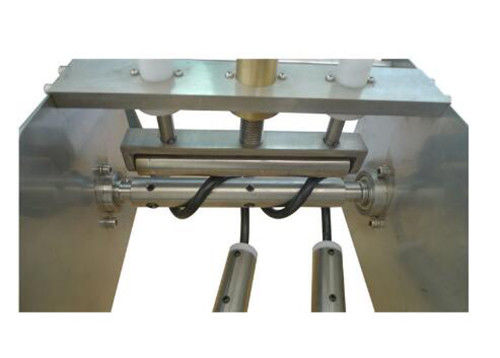

The mandrel shall be uniformly rotated at a rate of one revolution in about 5 s and the number of turns shall be as specified in the following table.
Technical parameters:
1. Diameter of samples: 2.5～12.5㎜
| Overall diameter (d) of the test piece (mm) | of turns Number |
| d≤2.5 | 10 |
| 2.5＜d≤4.5 | 6 |
| 4.5＜d≤6.5 | 4 |
| 6.5＜d≤8.5 | 3 |
| 8.5＜d | 2 |
2. Diameter of pipe: 3,4,5,6,7,8,9,10,12,14,16(mm)
3. Diameter of test bar: 9.6,12.5,16,20,25,31.5,40,50(mm)
Test condition:
The diameter of the mandrel shall be between 4 and 5 times the diameter of the test piece.
Standard equip with the mandrel :Ф4, Ф5, Ф6, Ф7, Ф8, Ф10, Ф12, Ф14, Ф16, Ф18, Ф20, Ф24, Ф37.5mm
Rotation speed: 5S/ turn, manual control
Diameter of pipe: Ф3.5, Ф6, Ф10, Ф12, Ф16mm, each of two pieces
Test sample: Cables with an overall diameter up to and including 12.5 mm, or for flat cables,
a major axis dimension up to and including 20 mm.
