IEC60598 Light Testing Equipment

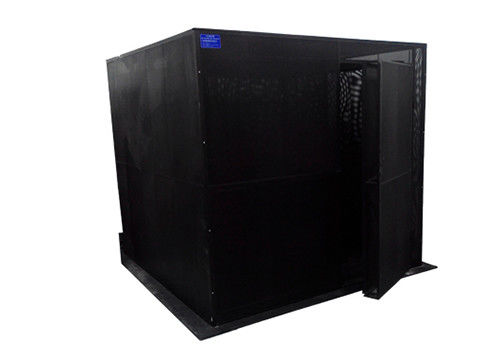

IEC60598 Draught-Proof Enclosure for Temperature Rise Test Equipment

Parameters:

Standard: IEC60598/EN60598-1

Application:

It is suitable for all kinds of lamps and accessories to avoid air convection during temperature rise detection, to prevent air temperature changes and the influence of heat radiation from the light source on the sample.

Features:

1. The overall design of the draught-Proof Enclosure is easy to disassemble and install; the top frame has a heavy steel structure and can bear a sample of 30kg;
2. Considering the connection between the test instrument and the sample and the powercord,anin-lineholeisopenedonbothsidesofthedraught-proofenclosure.
3. The stencil is made of high-quality steel plate and punched by high-precision CNC punching machine to ensure the aperture and spacing of the mesh.
4. Ensure 40% ventilation rate.
5. After the stencil is welded, a complete assembly is carried out, and then the varnish is sprayed off, and the matte black color is applied as standard. The advanced lacquering process is beautiful and durable, and never lacquers.
6. Each floor single door design (outside opening), the door gap is staggered effectively to prevent the ventilation of the door joint and affect the ventilation rate.
7. The bottom plate is made of 18mm high quality plywood, and the surface is completely sprayed with matte black. And adopts aluminum alloy wrap process to make it beautiful and more durable.
8. Equip with 600*600*18mm high quality plywood is mounted on the top frame with a screw to install the ceiling lamp.
9. Draught-proof enclosure standard equip with multi-functional mounting bracket: the bracket is welded from high quality steel pipe and its height is adjustable, the table is made of 700*600mm*18mm high quality matt black lacquered plywood, the table is adjustable vertically or horizontally, suitable for Install table lamps and wall lamps.

Note:

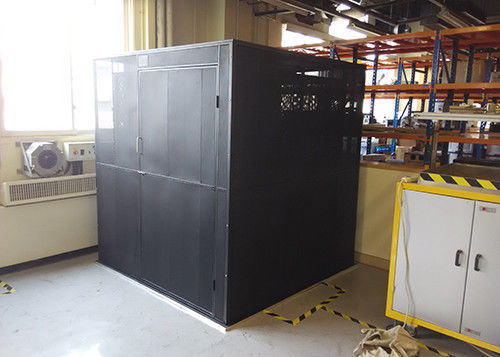

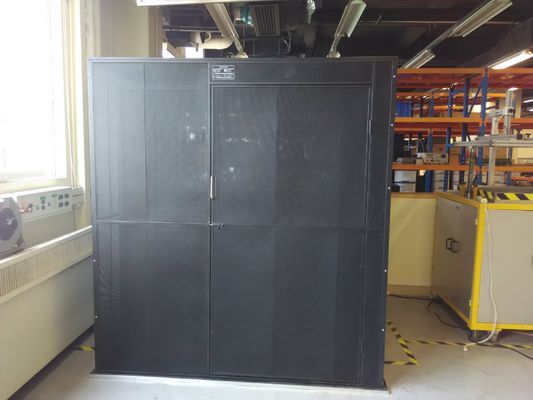

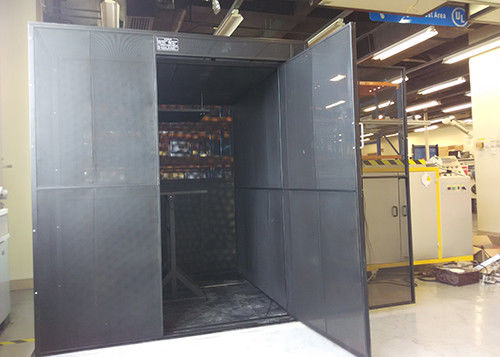

UL Testing Laboratory located in Guangzhou bought a 2.0m long by 2.0m withd by 2.0m high just like the pictures.

The pictures are taken after installation in UL lab.

The outside/inner size can be customerize.
