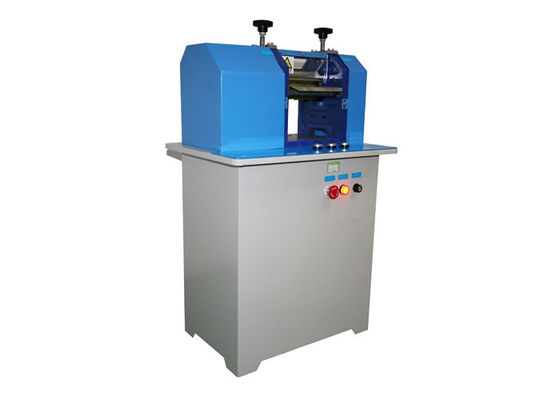

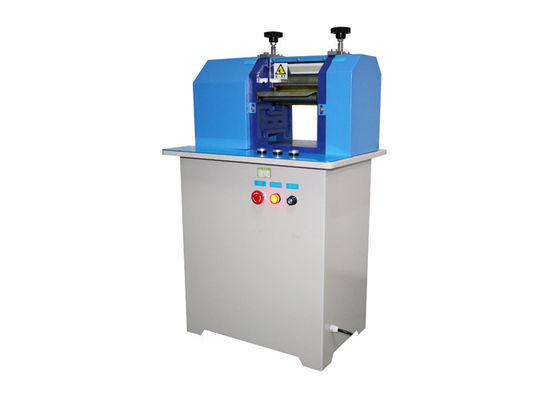

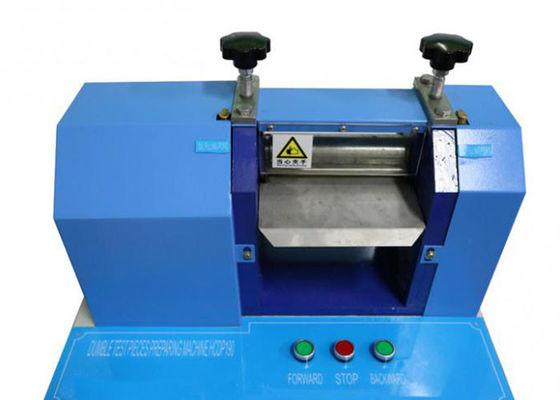

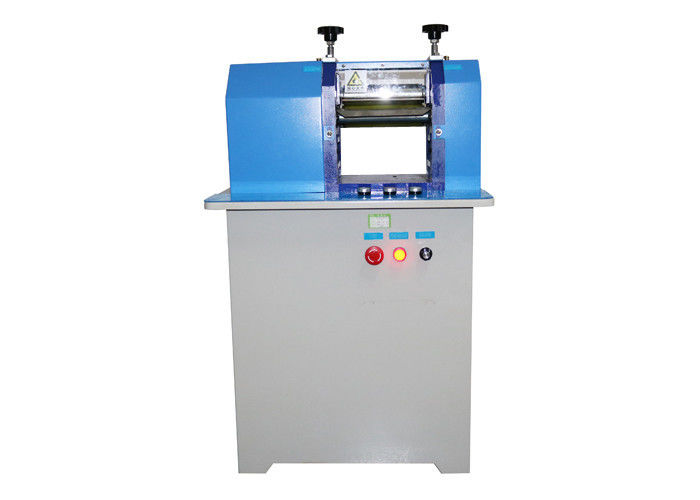

IEC60811 Cable Testing Equipment , Dumbbell Pieces Preparing Machine

IEC60811 Cable Testing Equipment , Dumbbell Pieces Preparing Machine

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  IEC60811 Cable Testing Equipment , Dumbbell Pieces Preparing Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-DTPP
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 2000-10000 unit
Packaging Details: Carton
Delivery Time: in 15 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 99 units per month
Detailed Product Description
Standard: IEC60811-1-1:2001,IEC60811-1-3:2001,IEC60811-2-1:2001 Function: Used To Prepare The Dumbbell Test Piece
Maximum Face Width: 190mm Cutting Speed: 16.7 M / Min
Pressure Roller Adjustment Range: 0 -15mm Slice Thickness: 0.6-3mm
Power Supply: 220V 50Hz Customize: OEM, ODM
High Light:

IEC60811 Cable Testing Equipment


SGS Cable Testing Equipment


Dumbbell Pieces Preparing Machine

IEC60811 Dumble Test Pieces Preparing Machine Cable Testing Equipment



Product information:

The test device conforms to IEC60811-1-1:2001,IEC60811-1-3:2001,IEC60811-2-1:2001, and etc.

It is used to prepare the dumbbell Test Piece.

The IEC 60811 series specifies the test methods to be used for testing rubber, insulation or coating material, non-metallic materials of all types of cables. These test methods are intended to be referenced in standards for cable construction and for cable materials.

It is required to equip with various dumbbell cutter according to the needs for cutting piece.



This machine adopts the light roller to control the thickness of the chip, the light roller feeds the material, and the tool performs the chipping. The device can prepare a variety of cable samples, has a compact appearance, and is easy to use and operate.


Dumbbell cutter specifications:

Maximum face width 190mm
Cutting speed 16.7 m / min(up and down roller: rotation speed 110 circles / min)
Pressure roller adjustment range (maximum feed thickness) 0 -15mm
Slice thickness 0.6-3mm
Power supply 220V 50Hz
