| Test Sample: | Electrical Conductive Parts | Standards: | IEC60884-1, IEC60598, And IEC60335 |
|---|---|---|---|
| Name: | Creepage Distance Testing Card | Material: | Stainless Steel |
| Size Specification: | 27 Creepage Distance Gauges | Type: | Pawn Type |
| Warranty: | 12 Months | Model: | CK-1, CK-2, CK-3, CK-4, CK-5 |
| High Light: | IEC60884-1 Creepage Distance Test Card,IEC60598 Creepage Distance Test Card,IEC60335 Creepage Distance Testing Card |
||

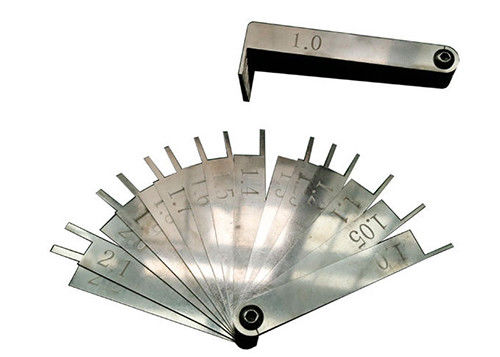

Creepage Distance Test Card Shortest Path of Two Conductive Parts
Technical parameters:
| Model No. | Size Specification |
| CK-1 | 1/1.5/2/2.5/3/4/6/8 Total 8 creepage distance gauges |
| CK-2 | 1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8 Total 15 creepage distance gauges |
| CK-3 | 1/1.2/1.4/1.5/2/2.4/2.5/2.8/3/3.2/3.3/4/4.5/5/5.5/6/6.3/6.4/6.5/7/8 Total 21 creepage distance gauges |
| CK-4 | 1/1.2/1.4/1.5/1.6/2/2.4/2.5/2.8/3/3.2/3.3/3.5/4/4.5/5/5.5/6/6.3/6.4/6.5/7/8 Total 23 creepage distance gauges |
| CK-5 | 1/1.1/1.2/1.3/1.4/1.5/1.6/1.7/1.8/1.9/2/2.5/2.8/3/3.2/3.3/4/4.5/5/5.5/6/6.3/6.5/7/8/9/10 Total 27 creepage distance gauges |

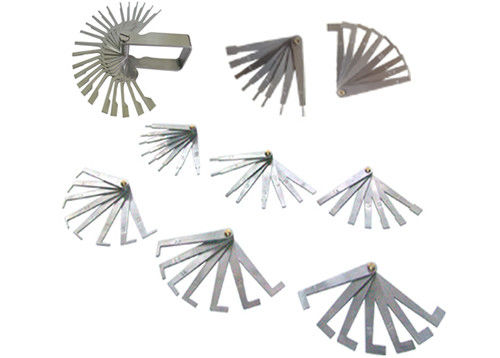

We have five kinds of Creepage Distances Test Cards, CK1/CK2/CK3/CK4/CK5.
These test gauges conforms to IEC60884-1, IEC60598, and IEC60335 etc.
They are used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.

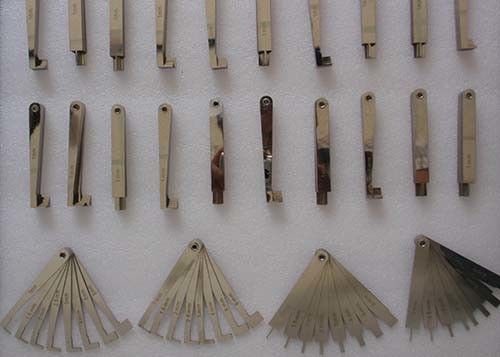

Assortments:
Creepage Distance Gauges Type CK1
With 8 creepage distance gauges:
1,0-1,5-2,0-2,5-3,0-4,0-6,0-8,0mm.
Creepage Distance Gauges Type CK2
With 15 creepage distance gauges:
1,0 to 8,0mm in steps of 0,5mm.
Creepage Distance Gauges Type CK3
With 21 creepage distance gauges:
1,0-1,2-1,4-1,5-2,0-2,4-2,5-2,8-3,0-3,2-3,3-4,0-4,5-5,0-5,5-6,0-6,3-6,4-6,5-7,0-8,0mm
Creepage Distance Gauges Type CK4
With 23 creepage distance gauges:
1,0-1,2-1,4-1,5-1,6-2,0-2,4-2,5-2,8-3,0-3,2-3,3-3,5-4,0-4,5-5,0-5,5-6,0-6,3-6,4-6,5-7,0-8,0mm

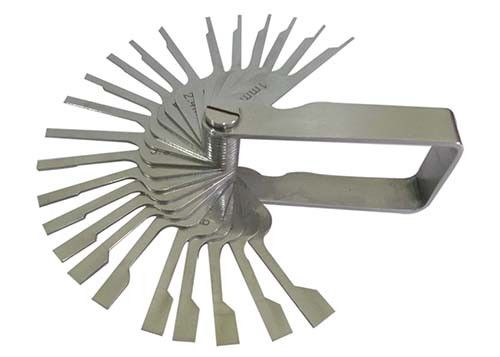

Creepage Distance Gauges Type CK5
With 27 creepage distance gauges:
1,0-1,1-1,2-1,3-1,4-1,5-1,6-1,7-1,8-1,9-2,0-2,5-2,8-3,0-3,2-3,3-4,0-4,5-5,0-5.5-6,0-6,3-6,5-7,0-8,0-9,0-10,0mm
Standard:
IEC 60884-1 'Plugs and socket-outlets for household and similar purposes – Part 1: General requirements' clause 27.1.
Creepage distances, clearances and distances through sealing compound shall be not less than the values shown in table 23.
Test sample:
Electrical conductive parts.
Feature:
Stainless steel, pawn type, to verify the creepage distance between conductive components
Application:
It is used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.
Notice
1. Please do not damage the appliance shape (such as scratching, bending, etc.).
2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.
