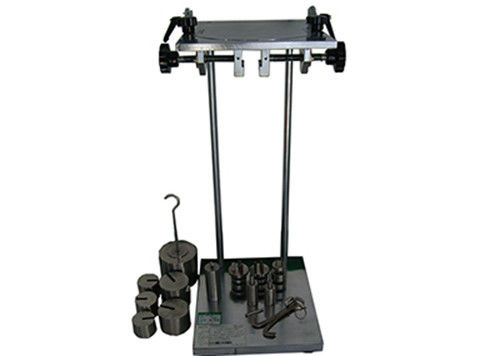

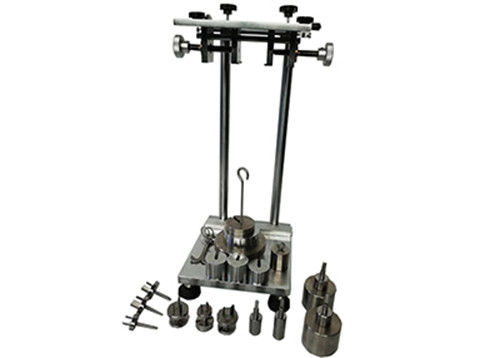

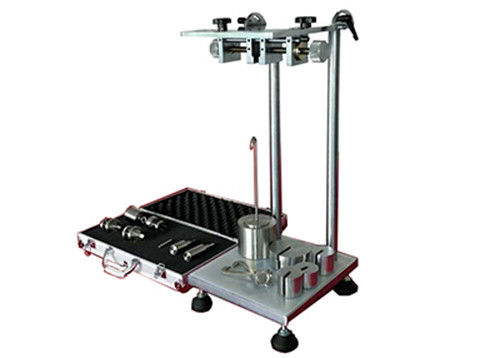

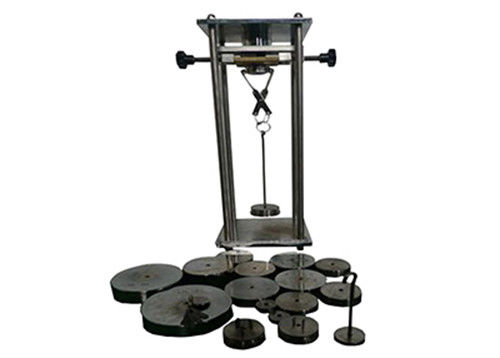

IEC60884 Fig18 Withdrawal Force Verification Apparatus

Apparatus For Verification Of Max Withdrawal Force IEC60884 Fig18 19

Application:

 It is suitable for checking the maximum force required to pull the plug out of the socket and the single pole pin pulled out from the socket assembly. Whether the minimum force required is within the range specified by the standard.

Parameter:

1. Standard one-pole 10A, three-pole 10A and 16A test standard plugs each, 10A 16A test standard plugs each, adjustable:
1) Round plug with 2-pole dual socket, the bolt diameter is 4.8
2) The round plug of the 2-pole dual-purpose socket, the bolt diameter is 4.0
3) Round plug (unipolar), the bolt diameter is 4.8
4) Round plug (unipolar), the bolt diameter is 4.0

2. Weights: 36N*1, 5.4N*1, 5N*2, 4N*1, 2.6N*1;
1) Standard test bolt: Each one for 1.5N and 2N
2)1 set of clamping device
3) 1 set of Weights tray
4) Lateral stress weights 5N*1
5) 1 set of lateral stress bar

Usage:

1. The test plug with the maximum size pins is inserted into and withdrawn from the socket
outlet ten times. It is then inserted again, a carrier E for a principal mass and a
supplementary mass G being attached to it by means of a suitable clamp D. The
supplementary mass is such that it exerts a force equal to one-tenth of the maximum
withdrawal force shown in Table 16.
2. The principal mass, together with the supplementary mass, the clamp, the carrier and the
plug exert a force equal to the maximum withdrawal force shown in Table 16.
3. The principal mass is hung on the plug without jolting and the supplementary mass is, if
necessary, allowed to fall from a height of 50 mm onto the principal mass.

Additional function:

Device for checking the resistance to lateral strain

It can checking the resistance to lateral strain, confirms to IEC60884 Figure 13.

Figure 13 Testing:

1. Each specimen is mounted on a vertical surface with the plane through the socket-contacts
horizontal. The device is then fully engaged and a weight hung on it such that the force exerted is 5N.

2. The device is removed after 1 min and the socket-outlet turned through 90 degree on the mounting
surface. The test is made four times, the socket-outlet being turned through 90 degree after each engagement.

3. During the test the device shall not become disengaged from the socket-outlet.
4. After the tests, the socket-outlets shall show no damage within the meaning of this standard; in
particular, they shall comply with the requirements of clause 22

Standards:

This device complies with the requirements of

IEC60884 Figure 18/19,

VDE0620, etc.
