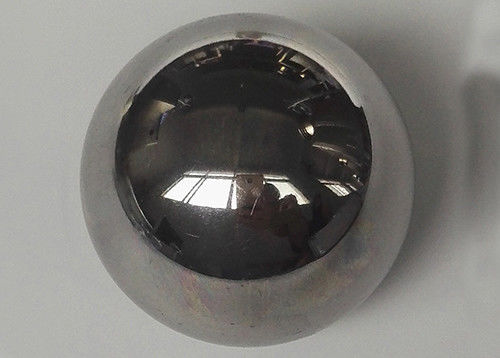

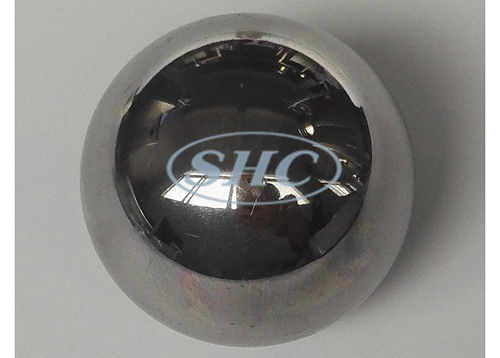

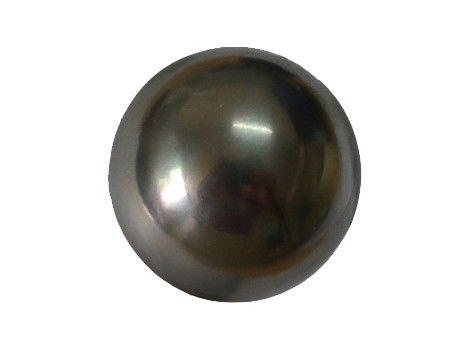

IEC61032 Figure 5​ Test Finger Probe , 50mm Steel Ball

IEC61032 Figure 5​ Test Finger Probe , 50mm Steel Ball

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  IEC61032 Figure 5​ Test Finger Probe , 50mm Steel Ball Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-F51
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 20-400 unit
Packaging Details: Aluminum toolbox
Delivery Time: in 5 working days
Supply Ability: 999 units per month
Detailed Product Description
Standards: IEC61032 Material: Stainless Steel
Warranty: 12 Months Name: Test Probe 1 Steel Ball
Sizes: SФ50+0.050 Mm Weight: 500±25 G
Application: To Verify The Degree Of Protection Of Enclosures Against Ingress Customize: OEM
High Light:

IEC61032 Test Finger Probe


CSA Test Finger Probe


CNAS 50mm steel ball

IEC61032 Figure 5​ Test Sphere Probe 1 IEC60335 50mm Steel Ball



Technical parameters:

Parameters /Model SC-F51 SC-F51-A SC-F51-B SC-F51-C SC-F51-D
Name Test probe 1 steel ball 50mm dropping steel ball 50mm steel ball with ring 50.8mm dropping steel ball 50.8mm steel ball with ring
Sizes SФ50+0.050 mm SФ50 mm SФ50 mm SФ50.8 mm SФ50.8 mm
Weight ---- 500±25g 500±25g 535±25g 535±25g
Standard IEC61032 GB4943 GB4943 UL507 UL507


Product information:

This test sphere probe

confirms to IEC61032 figure 5 test probe 1,




                  UL507 standards.


It is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 50mm or greater.

It is also regarded as the steel ball for dropping impact test.

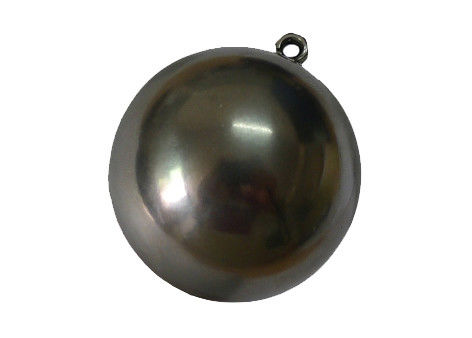

It can be equipped with a lifting ring, and used for pendulum bob test after hanging with a rope.

Steel balls with other diameters can be customized.
