Product Details:
Payment & Shipping Terms:
|
| Standards: | IEC61032 | Material: | Nylon+Stainless Steel |
|---|---|---|---|
| Warranty: | 12 Months | Application: | Safety Test |
| Customized: | OEM Welcome | Figure9: | Test Probe13, Short Pin |
| Figure 2: | Test Probe B Standard Test Finger | Figure 16: | Test Probe 41 Thorn Probe |
| Highlight: | IEC61032 finger test probe,OEM finger test probe,IEC61032 test probe 13 |
||

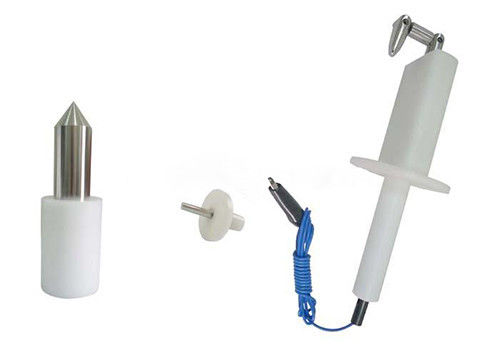

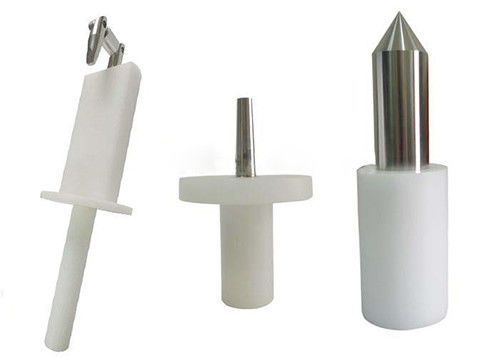

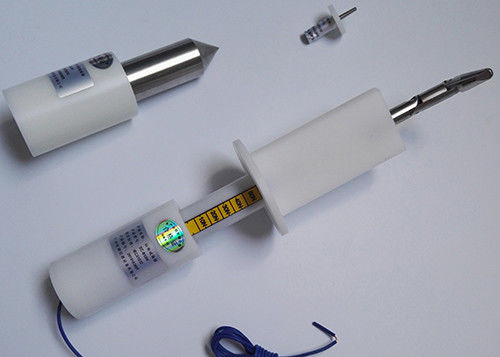

IEC61032 Figure 9 Test Probe13 Short Pin Standard Test Probe Kit
Main specification and corresponding technical parameters:
| Parameters /Model | Short test pin probe SC-F913 |
| 1 | Ф3 0 -0.05 |
| 2 | Ф4 0 -0.05 |
| 3 | 15 0 -0.1 |
| 4 | Ф25±0.2 |
| 5 | 4 |
| 6 | Ф10 |
| 7 | 20 |
Information:
This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment. It conforms to IEC61032 figure 9 Test probe13, IEC60950 figure 2B, IEC60335 and IEC60065 standard requirements.
Customizable: It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
This pin is used on appliances for verifying that there is no access to hazardous live parts of heating elements which could be touched accidentally by a tool (i.e. screwdriver), Meets IEC61032 Test probe12 & EN requirements. Handle is made of nylon, tip is hardened steel.
Shice offers a wide range of test probes to meet the most common standards including those from IEC,EN, GB and others. Such standards require the checking of accessibility to dangerous parts of home electronics and appliances, toys,tools and a hose of other products thar are intended to be protected by enclosures. These probes simulate human fingers,tools and other items that would be hazardous to come in contact with certain parts of produt.
Usage:
