| Standards: | IEC60529 Figure 1234 | Warranty: | 12 Months |
|---|---|---|---|
| Material: | Stainless Steel And Plastic | IP Code: | IP1X IP2X IP3X IP4X |
| IP1X: | Test Sphere Probe | IP2X: | Test Finger Probe B |
| IP3X: | Test Rod Probe C | IP4X: | Test Rod Probe D |
| High Light: | IEC61032 IP Test Fingers,IEC60529 IP Test Fingers,IP4X test probes |
||

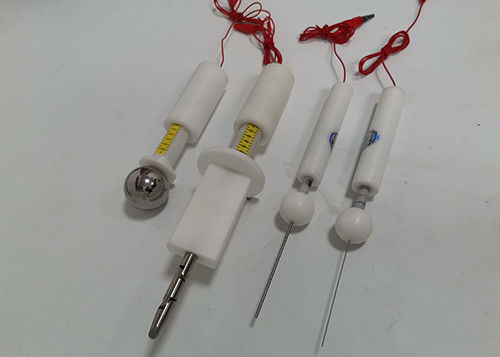

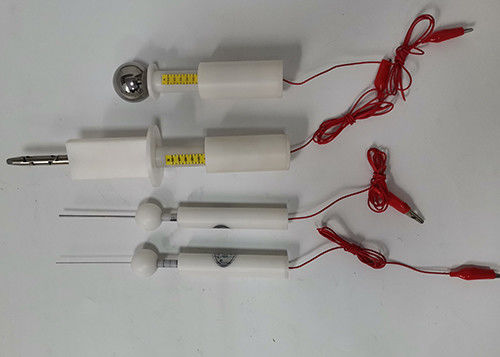

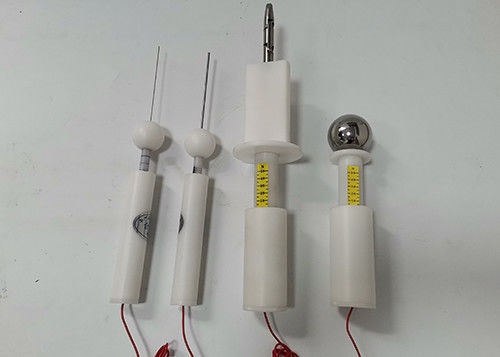

IP Test Fingers IEC60529 IP1X IP2X IP3X IP4X test probes IEC60335
Product information:
These probes conforms to IEC60529 for IP1X IP2X IP3X IP4X
Specification and technical parameters:
I) IP1X Test sphere probe SC-F1A-F
It conforms to the standard requirements of IEC61032 fig.1, IEC60529 IP1 and IEC60065. This probe is intended to verify protection the back of hand of persons against access to hazardous parts. It is also the necessary probe used to prevent the hazardous parts and solid foreign objects from entering.
This test probe can be customized. It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.
| Parameters /Model | SC-F1A-F |
| Name | Test probe A with force |
| 1 | SФ50+0.05 0 |
| 2 | Ф45±0.2 |
| 3 | Ф10 |
| 4 | 4 |
| 5 | 100 |
| 6 | With force of 50N |
| 7 | IEC60529 |
II)IP2X Test Finger Probe B SC-F2B-F
This is a precision test finger made in accordance with many standards like IEC 61032 figure 2, IEC60950 figure 2A,IEC60884,IEC60335,UL507,and UL1278 figure 8.4. This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger. This test finger probe consists of dito,finger,base and insulated handle which simulates the characteristics of the human hand. It has two movable joints, which can be curved at 90°.
Customizable:
it can be used for anti-electric shock test when equipped with pluggable banana plugs and amphenol connector at the end of the handle , or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
Main specification and corresponding technical parameters:
| Parameters /Model | SC-F2B-F |
| Name | Standard test finger with force |
| 1 | 30±0.2 |
| 2 | 60±0.2 |
| 3 | 80±0.2 |
| 4 | 180±0.2 |
| 5 | R2±0.05 |
| 6 | S4±0.05 |
| 7 | 37o 0 -10’ |
| 8 | 14 o 0 -10’ |
| 9 | Ф12 0 -0.05 |
| 10 | Ф50 |
| 11 | 20±0.2 |
| 12 | Ф75±0.2 |
| 13 | 5±0.5 |
| 14 | 10-30N force |
| 15 | IEC60529 |
III) IP3X Test Rod Probe C SC-F3C-F
This probe conforms to standard requirements of IEC61032 test probe C and IEC60529 for IP3 and IEC60065.
This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a tool.
Customizable:
It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.
| Parameters /Model | SC-F3C-F |
| Name | Test rod probe C with force |
| 1 | Ф2.5+0.05 0 |
| 2 | SФ35±0.2 |
| 3 | Ф10 |
| 4 | 100±0.2 |
| 5 | ---- |
IV) IP4X Test Rod Probe D SC-F4D-F
This probe conforms to the standard requirement of IEC61032 figure 4 test probe D and IEC60529 for IP4 and IEC60065.
This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire.
Customizable:
It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.
| Parameters /Model | SC-F4D-F |
| Name | Test rod probe D with force |
| 1 | Ф1+0.05 0 |
| 2 | SФ35±0.2 |
| 3 | Ф10 |
| 4 | 100±0.2 |
| 5 | ---- |
| 6 | 3N force |
| 14 | IEC60529 |
