IEC62560 Clause 15 Figure 8 Led Bulb Checking Machine

IEC62560 Clause 15 Figure 8 Led Bulb Checking Machine

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  IEC62560 Clause 15 Figure 8 Led Bulb Checking Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-TC8
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 100-500 piece
Packaging Details: Carton
Delivery Time: in 15 work days
Payment Terms: T/T, Western Union, MoneyGram, D/A
Supply Ability: 999 units per month
Detailed Product Description
Standard: IEC62560 Clause: Clause 15 Figure 8
Test Sample: Non-dimmable Lamp Material: Plastic
Capacitor C2: 68 NF To 150 NF Resistor R: 3.3 KΩ
Potentiometer R1: 470 KΩ Induction L1: 3mH
High Light:

IEC62560 Led Bulb Checking Machine


150nF Led Bulb Checking Machine


68nF led light tester

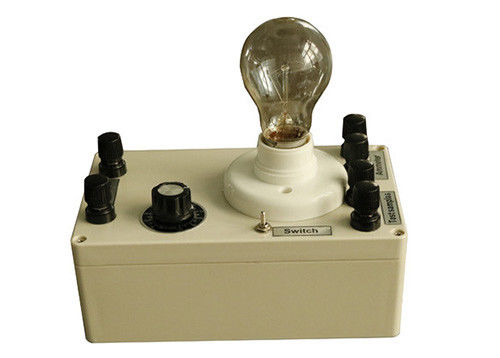

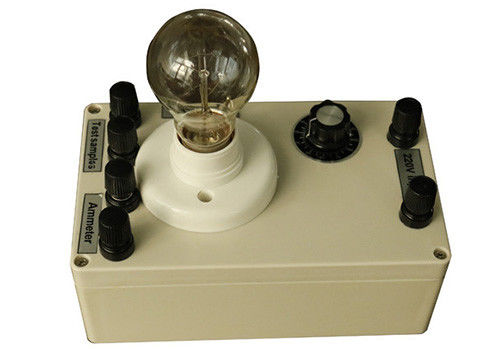

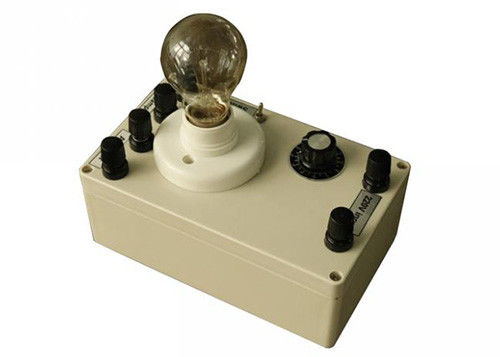

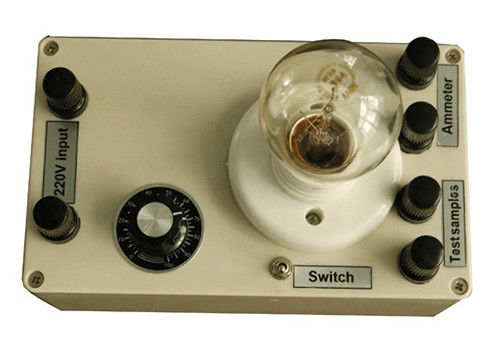

Test Circuit For Testing Non-Dimmable Lamp Or Electronic Switch Fig8




The test circuit for testing a non-dimmable lamp or electronic switch is manufactured according to IEC62560 clause 15 figure 8.

Standard description:

15.Abnormal operation

Self-ballasted lamps shall not create hazard under abnormal operating conditions .

Self-ballasted lamps shall be constructed so that as a result of abnormal or careless operation ,the risk of fire and mechanical damage impairing safety of protection against electric shock is obviated .

Appling non-dimmable self-ballasted lamps on a diameter or an electronic switch is to be tested as a possible case of abnormal operation .

Test procedure :

Test non-dimmable lamp in test circuit shown in figure 8.

Determine R1 and S1 setting at which the maximum I r.m.s occurs.

Test at this situation ,and if the lamp passively fails within 60 min ,repeat the test at 10% lower I r.m.s. The lower I r.m.s shall be set in the decreasing potentiometer resistance direction .

Repeat this procedures until stable operation is achieved for minimum 60 min .

Operate the lamp fpr 8H at the above most onerous dimming level (potentiometer adjustment )



Compliance is checked by operating the sample free burning ,vertical cap up position or in the burning position indicated on the packaging at room temperature and at the rated voltage .

In case a voltage range is declared ,the test has to be carried out at the mean voltage of that declared range .

In case of alternative rated voltages ,the test shall be performed separately for each rated voltage .

During this test the lamp shall not catch fire ,or produce flammable gases and live parts shall not become accessible with the standard test finger .
