| Standard: | Clause 22.16 Of IEC 60335-1 | Gas Source: | Compressed Air 5 ~ 7kg / Cm2 |
|---|---|---|---|
| Test Speed: | 30 Cycles / Min (or At The Maximum Rate Allowed By The Construction Of The Cord Reel If This Is Less) | Test Cycles: | 0~9999 Times, The Test Device Will Stop Working Automatically When The Preset Test Cycles Are Finished |
| Withdrawable Angle: | 30~70°, Can Be Preset | Fixture: | Quick Clamping Fixtures, Easy For Clamping The Test Sample |
| Test Sample: | Automatic Cord Reels Of Household Appliances And Similar Electrical Appliances | Withdrawable Stroke: | Maximum 1000mm, Can Be Adjusted |
| High Light: | IEC 60335-1 Endurance Testing Equipment,CNAS Endurance Testing Equipment,SGS endurance tester |
||

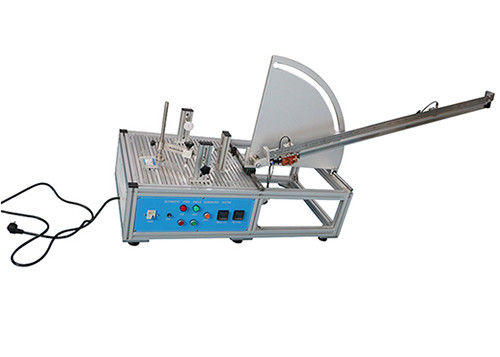

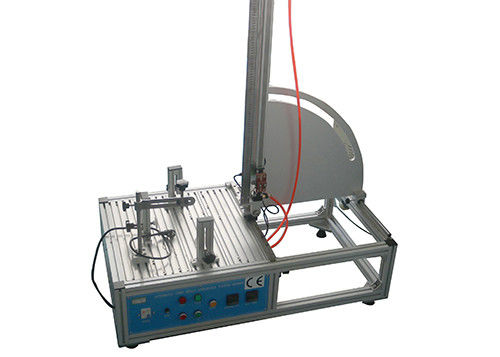

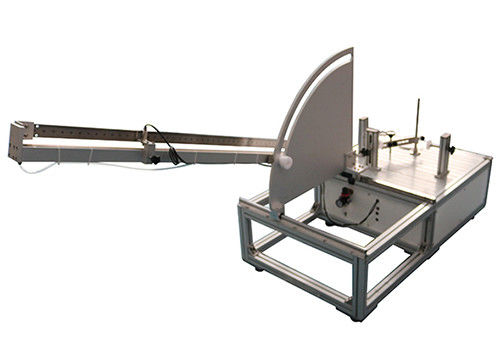

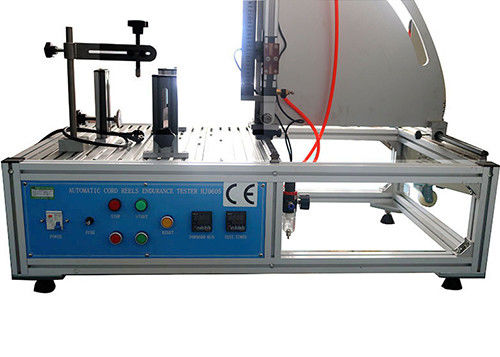

IEC 60335-1 Clause 22.16 Automatic Cord Reels Endurance Testing Equipment
Product information
The device is used to detect automatic cord reels, and it conforms to IEC60335-1 clause 22.16.
Two-thirds of the length of the cord is unreeled. If the withdrawable length of the cord is less than 225 cm, the cord is unreeled so that a length of 75 cm remains on the reel. An additional length of 75 cm of the cord is then unreeled and pulled in a direction so that the greatest abrasion occurs to the sheath, taking into account the normal position of use of the appliance. When the cord leaves the appliance, the angle between the axis of the cord during the test and the axis of the cord when it is unreeled without substantial resistance is approximately 60°, the cord is allowed to be recoiled by the reel.
Parameters
| Input Power | 220V/50HZ |
| Gas Source | Compressed air 5 ~ 7kg / cm2 |
| Test Speed | 30 cycles / min (or at the maximum rate allowed by the construction of the cord reel if this is less) |
| Test Cycles | 0~9999 times, the test device will stop working automatically when the preset test cycles are finished |
| Drive Mode | Pneumatic |
| Withdrawable Angle | 30~70°, can be preset |
| Fixture | Quick clamping fixtures, easy for clamping the test sample |
| Withdrawable Stroke | Maximum 1000mm, can be adjusted |
Standard
Clause 22.16 of IEC 60335-1 Household and similar electrical appliances - Safety - Part 1: General requirements.
Application
It is used to inspect automatic cord reels and make sure that they are free from
- Undue abrasion or damage to the sheath of the flexible cord
- Breakage of conductor strands
- Undue wear of contacts
Test Sample
Automatic cord reels of household appliances and similar electrical appliances.
Feature
The device adopts a multi-functional fixture, large work surface, can test cord reels up to 300cm, test speed (5-30 times / min) is adjustable, and it is suitable for most electrical products.
