IEC 60335 IPX1 Ingress Protection Test Equipment

IEC 60335 IPX1 Ingress Protection Test Equipment

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  IEC 60335 IPX1 Ingress Protection Test Equipment Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS, TUV, ITS, CSA, BV, SGS(cost additional)
Model Number: SC-IPX1234
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD 5000-10000 per Unit
Packaging Details: carton
Delivery Time: 15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 999 unit per month
Detailed Product Description
Material: Stainless Steel IP Code: IPX1, X2, X3, X4
Temperature: Room Temperature Inner Dimension: 900×900×900mm
Standard: IEC60529/IEC 60335-1 Oscillating Tube Range: ±60°,±180°,±45°
Rain Drop Area: 600×600mm Size Of Oscillating Tube: R400mm
IPX12 Flow: IPX1=1mm/min; IPX2=3mm/min IPX34 Flow: IPX3=1.1L/min; IPX4=1.8L/min
High Light:

IEC 60335 Ingress Protection Test Equipment

,

IPX1 Ingress Protection Test Equipment

,

IPX2 Test Chamber

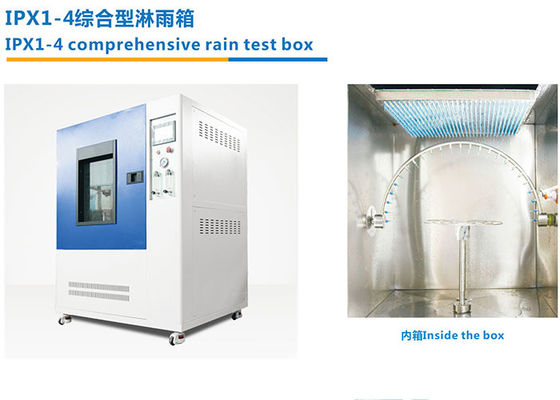

IEC60335 IPX1234 Waterproof Test Chamber For Electrical Products





Main Technical Parameters:

Model SC-IPX1-4B-R400
Inner dimension 900×900×900mm
Outer dimension 1350×1150×1750mm
Rain drop area 600×600mm
Size of swing tube R400mm
IPX12 Flow IPX1=1mm/min; IPX2=3mm/min
IPX34 Flow IPX3=1.1L/min; IPX4=1.8L/min
Load bearing of turntable 50Kg(Max)
Adjustable range of turntable 450-750mm
Power 1.0Kw
Supply voltage 220V
Safety protection measures Leakage protection, water
shortage protection, short circuit protection


Features
IPX1 IPX2 IPX3 IPX4 waterproof testing can be completed
Sample energization test
Water tank inside, circulating water

Conform to:
IEC60529
IEC60598-1
IEC 60335-1
IEC60745-1
VDE0630
VDE0632
IEC60034
DIN40050
ISO20653

IP Code of the IPX1, X2, X3, X4



Application:

It is used for the testing of IPX1, X2, X3, X4 waterproof degrees testing purposes.
The device to shell protection grade (IP code) based mainly for electrical and electronic products, LED products, lamps, electrical cabinets, communications, digital equipment, transportation and other products to simulate outdoor rain weather conditions, and test the performance of the product is waterproof, to determine whether the corresponding level of protection, in order to product’s design, development and test use.

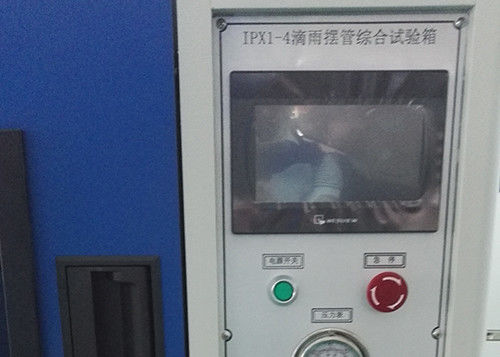

The application of the comprehensive control system and the frequency conversion technology makes the rotation angle of the test sample rack.

The swing angle of the pendulum rod and the swing frequency of the spray water can be adjusted automatically.



Product Introduction:

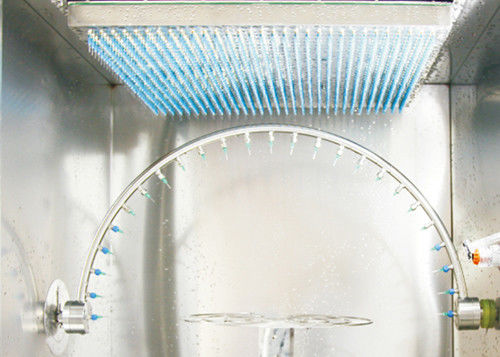

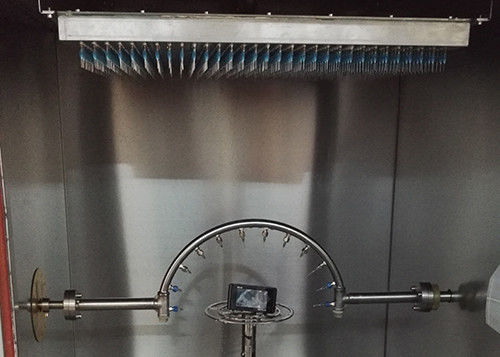

This equipment is suitable for the test of electrical products which are enclosure and sealed in the rain environment whether can ensure the good performance of equipment and components. The scientific design of this equipment, so that the equipment can be realistically simulated dripping water, water spraying, splashing water etc. The application of the comprehensive control system and the frequency conversion technology makes the rotation angle of the test sample rack. The swing angle of the pendulum rod and the swing frequency of the spray water can be adjusted automatically.

IPX1/2, IPX3/4 waterproof degrees test equipment are designed and manufactured according to IEC 60529 < Degrees of protection provided by enclosures (IP Code)>. This equipment is applied in IPX1, IPX2, IPX3, IPX4 waterproof degrees testing purposes, which are widely adopted by luminaire products, electrical and electronic products certification institutions, testing organizations and production enterprises for quality control.
