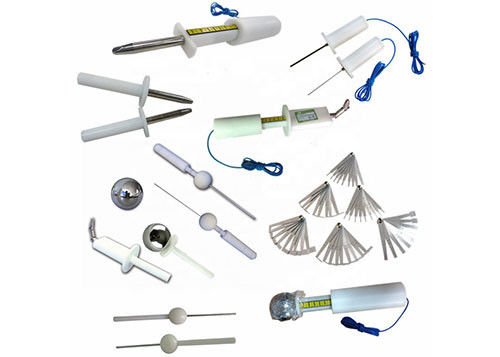

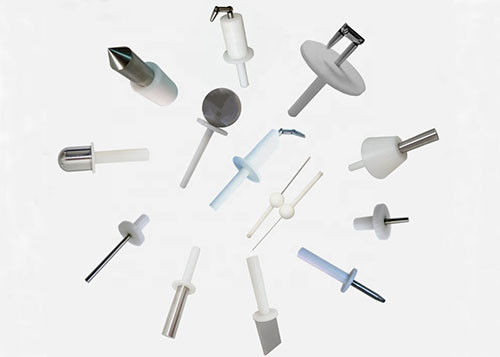

IEC 60335 Test Finger Probe Kit

IEC 60335 Standard Test Probe Kit Electric Safety Check Device

List:

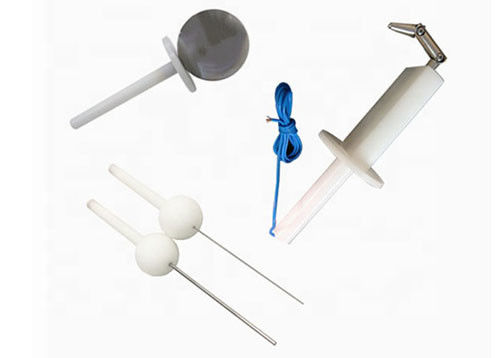

IEC60335 Test Probe A

Specification:

IP1X Probe A /Test Probe A

1, According to: IEC61032:1997 /IEC60529:2001 and UL

2, IP1X Probe A (Test Probe A) is necessary appliance for household and similar electrical appliance of against electric shock protection test.

Technical Parameters:

1, Ball Diameter: 50mm

2, Baffle Plate Diameter: 45mm

3, Baffle Plate Thickness:4mm

4, Handle Diameter: 10mm

5, Handle Length :100mm

6, According to IEC61032 figure 1 (the Test probe A), table 6

Application:

1, Sphere can not touch the live parts or close to the dangerous parts.

2, In the testing requirements of keep close to the dangerous part, the test steel ball without thrust need to be used with push tension meter, and steel body for protective coating need to apply to 50 + 5 n (30 + 3 n) forces

IEC60335 The Standard Test Finger Probe

The Standard Test Finger Probe / The Standard Test Knurled Finger Probe / Test Probe B / IP2X Protection Grade Probe

Technical Parameters:

1, Knurled Finger Diameter:12mm

2, Knurled Finger Length :80mm

3, Baffle Plate Diameter :50mm

4, Baffle Plate Length: 100mm

5According to: IEC60065, IEC 60335-1, IEC 60529, IEC60884-1, IEC60950, IEC61032, IEC69745-1

1, The joint part of The Standard Test Knurled Finger Probe can't touch the live parts or close to the dangerous parts, and 50 mm to 20 mm baffle plate cannot enter.

2, In the prevent electric shock test, wires, power devices, and lighting devices are needed.

3Both joints shall permit movement in the same plane and the same direction through an angle of 90° with a 0° to +10° tolerance

This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger.

Tolerance on dimensions when no specific tolerance is given:

– on angles: 0

−10°
– on linear dimensions: up to 25 mm: 0

− 0,05 mm; over 25 mm: ± 0,2 mm.

Note: The Test Probe is made of precision stainless steel products, take and put down slightly when using, and pay attention to maintenance

IEC61032 IP3X Test Probe C (Test Probe C)

Basic Introduction:

1, According to: IEC61032:1997/IEC60529:2001 AND UL

2, IP3X Test Probe C (Test Probe C) is the necessary tool to proceed protecting electric shock test of household and similar electrical appliances.

Technical parameters

1, Test Probe Length :100mm

2, Test Probe Diameter:2.5mm

3, Dam- sphere Diameter:35mm

4, Handle Diameter:10mm

5, Handle Length 100mm

6, According to IEC61032 figure 3 (the Test probe C), table 6

Application:

1, Standard test refers to the joint part can't touch the live parts or close to the dangerous parts, and 35mm circular baffle can’t be enter.

2, In the test requirement for preventing access to the hazardous parts, Test Probe C/D need to be with push force 3±0.3N or 1±0.1N

Purpose:

This probe is intended to verify the basic protection against access to hazardous parts. It's also used to verify the protection against access with a tool.

Note: For the without force products, please use with the dynamometer.

IEC61032 IP4X Test Probe D (Test Probe D)

Basic Introduction:

1, According to: IEC61032:1997/IEC60529:2001 AND UL

2, IP4X Test Probe D (Test Probe D) is necessary appliance for household and similar electrical appliance of against electric shock protection test.

Technical parameters

1, Test Probe Length :100mm

2, Test Probe Diameter:1.0mm

3, Dam- sphere Diameter:35mm

4, Handle Diameter:10mm

5, Handle Length 100mm

6, According to IEC61032 figure 4 (the Test probe D), table 6 GB/T4208-2008 (the first characteristic digital 4/5/6)

Application:

1, Standard test refers to the joint part can't touch the live parts or close to the dangerous parts, 30mm circular baffle cannot be enter.

2, In the test requirement for preventing access to the hazardous parts, Test Probe D need to be with thrust 1±0.1N
