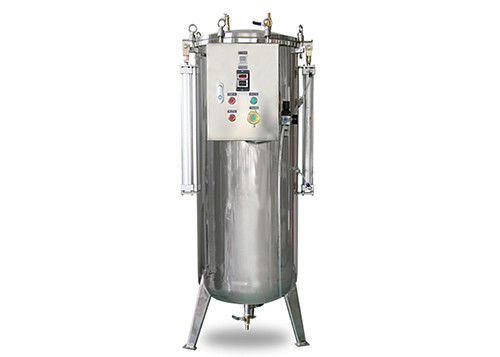

IEC 60529 IPX8 Pressure Immersion Tank

IEC 60529 IPX8 Pressure Immersion Tank

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  IEC 60529 IPX8 Pressure Immersion Tank Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: Third part calibration certificate(cost additional)
Model Number: SC-IPX8-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD 4000-10000 piece
Packaging Details: Carton
Delivery Time: in 15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 99 units per month
Detailed Product Description
Standard: IEC 60529, EN 60529 Application: Water Spray Testing For IPX7 IPX8
Interior Material: SUS304 Stainless Steel Plate Testing Time: 0-99min
Range Of Test Depth: 0-50m Inner Dimension: Φ600*H1200mm
Wall Thickness: 4mm Range Of Test Pressure: 0-0.55Mpa/0-5bar
Vent Pressure Of Safety Valve: 0.55Mpa/5.5bar Pressure Control Mode: Automatic Control By Pressure Sensor
High Light:

SUS304 IEC 60529 IPX8 Pressure Immersion Tank


50m Pressure Immersion Tank


SUS304 water immersion test Tank

IEC 60529 IPX8 Pressure Immersion Tank For 50m Depth Testing



Main Technical Parameters

Model SC-IPX8-50A-350L
Inner dimension Φ600*H1200mm
Outer dimension 600*780*1750mm
Wall thickness 4mm
Range of Test depth 0-50mm
Range of test pressure 0-0.55Mpa/0-5bar
Vent pressure of safety valve 0.55Mpa/5.5bar
Pressure control mode Automatic control by pressure sensor
The way of lifting the cover Cylinder control cover
Test time 0-999min
Power 100W



1. Entire tank adopts SUS304# stainless steel high accuracy integrated forming, ensure it will not rust and water-tight after long time use, adjust the test pressure according to the high precision pressure regulating valve. Pressure regulating valve with pressure stabilizing function, it can keep stable test pressure all the time after the pressure has been adjusted.


2.The pot cover is rotated and lifted by the screw thread, it can rotate and move away from the hole after lifting. (when pressure is greater than 50m depth test, must use special flange lock to lock cover)


3.The whole tank surface blasting treatment, smooth and beautiful.



Assessment of enclosures and sealing element whether can ensure good performance of equipment and components after the water test or during the test.

Confirm to standards:

IEC 60529 IPX7 IPX8;

EN 60529 IPX7 IPX8;

IEC 60884-1;

IEC 60598-1;

IEC 60335-1 and so on.

More details:

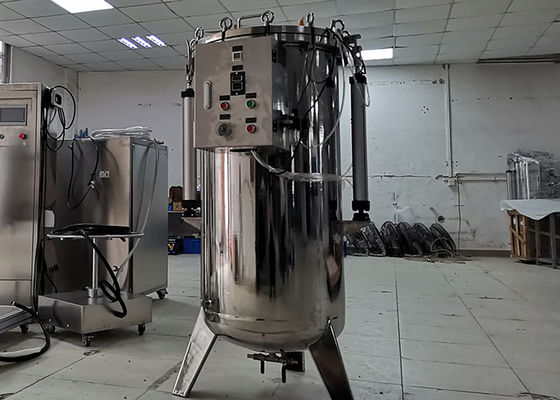

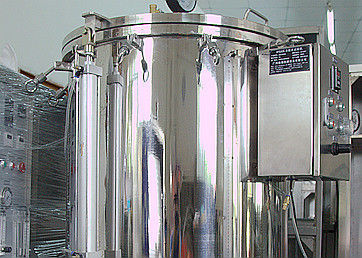

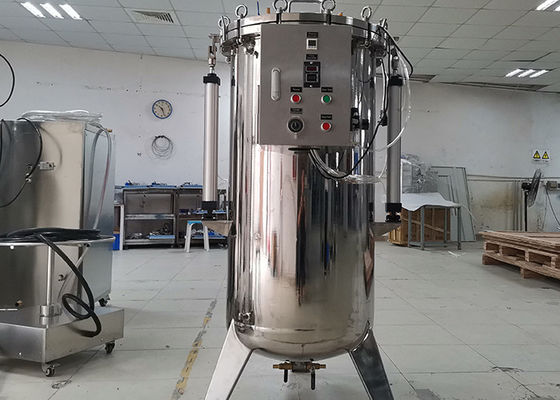

IEC 60529 IPX8 Pressure Immersion Tank 0IEC 60529 IPX8 Pressure Immersion Tank 1IEC 60529 IPX8 Pressure Immersion Tank 2IEC 60529 IPX8 Pressure Immersion Tank 3


Waterproof Rating:

IPX1 Protected against falling water Equivalent to 3-5mm rainfall per minute for a duration of 10 minutes.
Unit is placed in its normal operating position.

IPX2 Protected against falling water when tilted up to 15 degrees - Same as IPX-1 but unit is tested in 4 fixed positions - tilted 15 degrees in each direction from normal operating position.

IPX3 Protected against spraying water - Water spraying up to 60 degrees from vertical at 10 liters/min at a pressure of 80-100kN/m2 for 5 min.

IPX4 Protected against splashing water - Same as IPX-3 but water is sprayed at all angles.

IPX5 Protected against water jets - Water projected at all angles through a 6.3mm nozzle at a flow rate of 12.5 liters/min at a pressure of 30kN/m2 for 3 minutes from a distance of 3 meters.

IPX6 Protected against heavy seas - Water projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min at a pressure of 100kN/m2 for 3 minutes from a distance of 3 meters.

IPX7 Protected against water immersion - Immersion for 30 minutes at a depth of 1 meter.

IPX8 Protected against water submersion - The equipment is suitable for continual submersion in water under conditions which are identified by the manufacturer.



We are professional IP waterproof Testing Equipment manufacturer.


Guangzhou Shice are designed and manufactured as per the requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc. Our main products are: waterproof and dustproof (IP) environmental test equipment; switch, plug, socket and coupler test equipment; mechanical strength impact test equipment; material fire hazard test equipment, enclosure protection test probes; household appliances safety test equipment; wire and cable test equipment; luminaires test equipment; electric tools test equipment. Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.
