IEC 61320 Figure 4 Test Rod Probe D IP4X Test Finger

IEC 61320 Figure 4 Test Rod Probe D IP4X Test Finger

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  IEC 61320 Figure 4 Test Rod Probe D IP4X Test Finger Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-F4D
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 50-400 unit
Packaging Details: Aluminum toolbox
Delivery Time: 5-8 work days
Supply Ability: 999 units per month
Detailed Product Description
Standards: IEC60529 IP4X, IEC61032 Figure 4 Warranty: 12 Months
Material: Stainless Steel And Nylon IP Code: IP4X
Test Probe Diameter: 1.0mm Dam-Sphere Diameter: 35mm
Handle Diameter: 10mm Handle Length: 100mm
High Light:

IP4X ip test finger

,

SGS ip test finger

,

Test rod probe D

IEC60529 IP4X IEC61320 Figure 4 IP test finger probe Test rod probe D with force





IP4X Test Rod Probe D SC-F4D-F:

This probe conforms to the standard requirement of IEC61032 figure 4 test probe D and IEC60529 for IP4

and IEC60065. This rod probe is intended to verify the protection of persons against access to hazardous

parts. It is also used to verify the protection against access with a wire.



Customizable:

It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure

protection test when open threaded hole of M6 at the end of the handle (connected with pull and push

dynamometer) .The probe whose model number is with "T" is with force.



Parameters:

Parameters /Model SC-F4D-F
Name Test rod probe D with force
1 Ф1+0.05 0
2 SФ35±0.2
3 Ф10
4 100±0.2
5 ----
6 3N force
14 IEC60529



Other IP test probes

These probes conforms to IEC60529 for IP1X  IP2X  IP3X

Specification and technical parameters:

I) IP1X Test sphere probe SC-F1A-F

It conforms to the standard requirements of IEC61032 fig.1, IEC60529 IP1 and IEC60065.

This probe is intended to verify protection the back of hand of persons against access to hazardous parts.

It is also the necessary probe used to prevent the hazardous parts and solid foreign objects from entering.

This test probe can be customized. It can be used for anti-electric shock test when equipped with amphenol

connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle

(connected with pull and push dynamometer) .

The probe whose model number is with "T" is with force.

Parameters /Model SC-F1A-F
Name Test probe A with force
1 SФ50+0.05 0
2 Ф45±0.2
3 Ф10
4 4
5 100
6 With force of 50N
7 IEC60529



II)IP2X Test Finger Probe B SC-F2B-F

This is a precision test finger made in accordance with many standards like IEC 61032 figure 2, IEC60950

figure 2A,IEC60884,IEC60335,UL507,and UL1278 figure 8.4. This probe is intended to verify the basic

protection against access to hazardous parts. It is also used to verify the protection against access with a

finger. This test finger probe consists of dito,finger,base and insulated handle which simulates the characteristics

of the human hand. It has two movable joints, which can be curved at 90°.

Customizable: it can be used for anti-electric shock test when equipped with pluggable banana plugs and

amphenol connector at the end of the handle , or used for enclosure protection test when open threaded

hole of M6 at the end of the handle (connected with pull and push dynamometer).

Main specification and corresponding technical parameters:

Parameters /Model SC-F2B-F
Name Standard test finger with force
1 30±0.2
2 60±0.2
3 80±0.2
4 180±0.2
5 R2±0.05
6 S4±0.05
7 37o 0 -10’
8 14 o 0 -10’
9 Ф12 0 -0.05
10 Ф50
11 20±0.2
12 Ф75±0.2
13 5±0.5
14 10-30N force
15 IEC60529



III) IP3X Test Rod Probe C SC-F3C-F

This probe conforms to standard requirements of IEC61032 test probe C and IEC60529 for IP3 and IEC60065.

This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to

verify the protection against access with a tool.

Customizable: It can be used for anti-electric shock test when equipped with amphenol connector. Or used for

enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push

dynamometer) .

The probe whose model number is with "T" is with force.

Parameters /Model SC-F3C-F
Name Test rod probe C with force
1 Ф2.5+0.05 0
2 SФ35±0.2
3 Ф10
4 100±0.2
5 ----

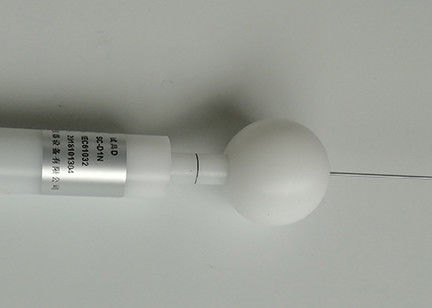

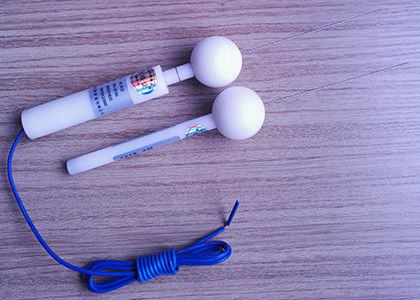

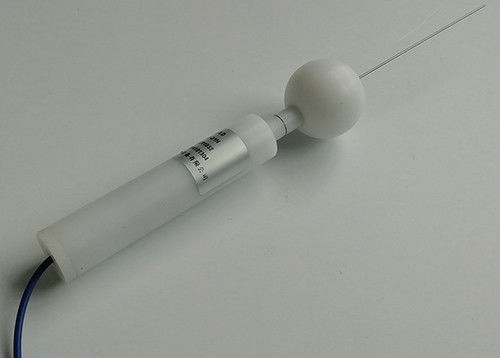

IP1X, IP2X, IP3X, IP4X pictures:

IEC 61320 Figure 4 Test Rod Probe D IP4X Test Finger 0IEC 61320 Figure 4 Test Rod Probe D IP4X Test Finger 1
