IPX3 Ingress Protection Test Equipment , 121 Holes Water Spray Nozzle Tester

IPX3 Ingress Protection Test Equipment , 121 Holes Water Spray Nozzle Tester

small.img.alt small.img.alt small.img.alt

Large Image :  IPX3 Ingress Protection Test Equipment , 121 Holes Water Spray Nozzle Tester Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shice
Certification: CNAS, TUV, ITS, CSA, BV, SGS(cost additional)
Model Number: SC-IPX34-SN
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD 600-900 per Unit
Packaging Details: Plastic Tool Box
Delivery Time: in 2 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 999 unit per month
Detailed Product Description
Material: Stainless Steel And Brass IP Code: IPX3, IPX4
Temperature: Room Temperature Function: Material Testing Equipment
Nozzle External Diameter: Ф102mm Nozzle Holes: 121 Holes
Spherical Diameter: SФ75.5mm Pressure Gauge: 50~150Kpa
Testing Time: At Least 5min Baffle: Removable
High Light:

IPX3 Ingress Protection Test Equipment


IPX4 Ingress Protection Test Equipment


IEC60529 Spray Nozzle tester

IPX3 IPX4 Hand Held Spray Nozzle IEC60529 IP Test Equipments


Technical parameters:
1 Water supply Water flow rate is 50~150kpa clean water without inclusion.
2 Spray nozzle parameters
external diameter: Ф102mM
spherical diameter: SФ75.5mm
There is a middle hole and There are 24 holes in the internal circle of holes of which the included angle is 30°.

There are 96 holes in the external circle of holes of which the included angle is 15°. 121 holes in total.
The hole diameter: Ф0.5mm
It is made of brass.

3 Water flow 10L/min±5%,Flow meter is adjustable 4 Range of pressure gauge 0~0.4Mpa 5 Baffle removable 6 Pressure gauge 0~0.25MPa

Water supply Water flow rate>10L/min±5% clean water without inclusion.
Control and operation valve, hand held
Nozzle external diameter Ф102mm
Nozzle spherical diameter SФ75.5mm
Nozzle holes 121 holes of Ф0.5mm
1 hole at the centre
1 inner circles of 12 holes at 30° pitch
4 outer circles of 24 holes at 15° pitch
Nozzle material Brass
Moving shield material Aluminum
Water flow 10L/min±5%, Flow meter is adjustable
Pressure gauge 50~150Kpa, Range of pressure gauge 0~0.25Mpa
Baffle Removable
Site requirements Dedicated IP waterproof test room,
The ground should be flat with illumination
With good function of inflow and drainage.
Testing time Manual control, at least 5min

Conform to:
IEC 60335-1

IPX3 IPX4 test.
Product information:

The spray nozzle is designed and manufactured in accordance with IEC60529 clause IPX3 and IPX4.
The Spray Nozzle is an alternative to the Oscillating Tube Tester for establishing the degree of protection against ingress of water.
The Spray Nozzle is intended for use on specimens that will not fit within the diameter of the Tube Tester.
The primary IEC tests include IPX3 and IPX4 protection against water spraying and splashing water.
Under this circumstance, the handheld spray nozzle is used by manual.

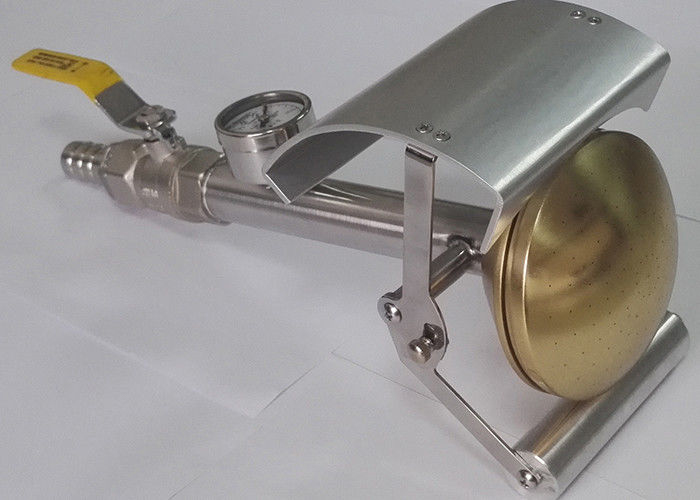

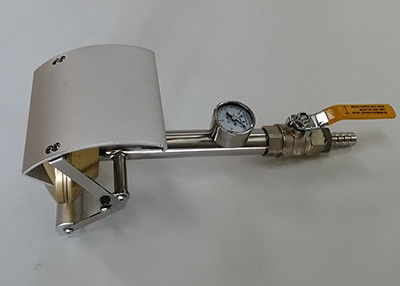

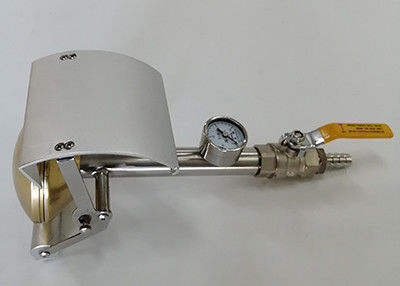

The SC-IPX34-SN Spray Nozzle is a hand-held test device to verify protection against spraying and splashing water.
The water pressure can be adjusted using the flow control knob on the device to give the required flow rate.
The pressure can be seen on the gauge which is conveniently positioned by the nozzle.
The spray pattern of the nozzle is made to the specifications of IEC 60529.
A moveable shield can be put down over a portion of the nozzle for IPX3 or moved out of the spray pattern for IPX4
The difference between IPX3 and IPX4 is that the baffle should be removed in the IPX4 test.
To let hand-free, we design the bracket for IPX3 IPX4 spray nozzle.
Delivery time: in 2 days.
Factory supply, and fast delivery.



SC-IPX waterproof test machine is according to IEC60529:1989 +A1:1999+A2:2013 (Degrees of protection provided by enclosures (IP
Code)>,IEC60598, IEC60335 and IEC 60034-5, GB/T-2423.2, GB4208, GB7000.1.The SC-IPX includes the following test grades: IPX1, IPX2,
IPX3,IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to page 51 of IEC60529). It is widely used in the authentication test organization for the
products such as electrical and electronic products, LED luminaires as well as in the relevant quality control department for the
waterproof detection of the enclosures protection grades.

The whole SC-IPX waterproof test system includes:

Drip Box(SC-IPX12): The drip box is for IPX1 and IPX2 drip test. The drip box size is 800x800x75mm(LXWXH). The diameter of drip hole
is 0.4mm. The distance between drip holes is 20mm. The sample can be over 150kg.

Swing Pipe Water Spray Test Equipment (SC-IPX34): It is for IPX3 and IPX4 test. The semi-diameter of swing pipe is 1meter(Any
other size is also available). The inside diameter of the swing pipe is 15mm. The sample rotating table diameter is 1000mm (Or other
size according to the diameter of the swing pipe, and the height is adjustable. The rotation speed is 1-5rpm which controlled by PLC

Waterproof Jet Test Device (SC-IPX56): With water supply device size is 1000x1000x600m, the nozzle diameter is 6.3mm (IPX5)
and 12.5mm(IPX6). The water speed is 12.5±0.626L/min for IPX5 and 100±5L/min for IPX6.

Immersion tank Waterproof test Device (SC-IPX7): It Is for IPX7 test. The water tank size is 1000x1000x1200mm (Other size can be
designed according to your request). It can test samples up to 120kg

Immersion tank Waterproof test Device(SC-IPX8): It is for IPX8 test. It can simulate a water depth of 0-50m. The water immersion
tank diameter is 600mm and the height is 1200mm. The compressive stress is 10 atmospheres or design according to customer's
