IPX3 Oscillating Tube Ingress Protection Test Equipment

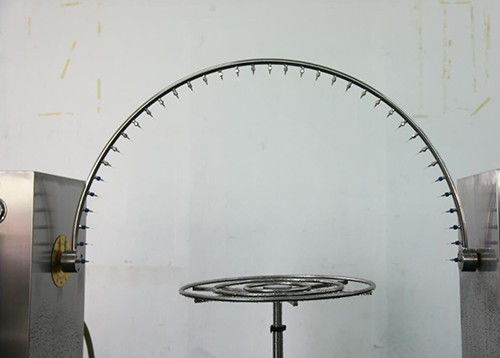

IPX3 Oscillating Tube Ingress Protection Test Equipment

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  IPX3 Oscillating Tube Ingress Protection Test Equipment Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS, TUV, ITS, CSA, BV, SGS(cost additional)
Model Number: SC-IPX34B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD 3000-10000 per Unit
Packaging Details: carton
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 999 unit per month
Detailed Product Description
Material: Stainless Steel IP Code: IPX3, IPX4
Pressure Gauge: 0~0.25MPa Standard: IEC60529
Size Of The Oscillating Tube: R400. R200, R600, R800, R1000, R1200, R1400, R1600mm. Optional Needle Hole: Φ0.4mm
Angle Of Two Holes: IPX3: 120°; IPX4: 180° Swing Angle: IPX3: 120°(±60°) ; IPX4: 350°(±175°)
Swing Speed: IPX3: 4 S/time(2×120°) ; IPX4: 12 S/time(2×350°) Water Flow: 1-10L/min Adjustable
High Light:

IPX3 Ingress Protection Test Equipment

,

IPX4 Ingress Protection Test Equipment

,

IEC60529 ingress protection testing

IEC60529 IPX3 IPX4 Oscillating Tube Waterproof Testing Equipment





Conform to:
IEC60529
IEC60598-1
IEC 60335-1
IEC60745-1
VDE0630
VDE0632
IEC60034
DIN40050
ISO20653 IP Code of the IPX3 and IPX4



Technical parameters:

Power supply Single-phase AC220V 50Hz or customize
Water supply Water flow rate>10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit
Control and operation PLC intelligent control, 7 inch color touch screen operation
The size of the oscillating tube R400. R200, R600, R800, R1000, R1200, R1400, R1600mm. Optional, stainless steel
Needle hole Φ0.4mm
Included angle of two holes IPX3: 120°; IPX4: 180°
Swing angle IPX3: 120°(±60°) ;
IPX4: 350°(±175°)
Swing speed IPX3: 4 s/time(2×120°) ;
IPX4: 12 s/time(2×350°) ;
Water flow 1-10L/min adjustable
Testing time 0.01S~99hours 59min, can be preset
Rotary plate Diameter: Φ600mm; Rotate speed:1r/min.
Can be paused at four aspects, Load bearing≤50kg, electrical equipment
Pressure gauge 0~0.25MPa
Site requirements Dedicated IP waterproof test room, The ground should be flat with illumination
10A waterproof leakage switch(or socket) used for equipment. With good function of inflow and drainage. Ground installation
Area covered It is set according to the selected oscillating tube



Application:

The Oscillating tube testing equipment is used for the testing of IPX3 and IPX4
The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components,

car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.).

Feature:

IPX34 oscillating tube test device, the pendulum tube driver adopts high-quality servo stepping motor, the swinging speed and angle are precisely adjustable, and there is no out-of-step problem (the risk of out-of-step: it will cause the swinging tube to malfunction, hitting the middle turntable shaft, causing equipment damage)
There are two models: Open type and chamber type. Using PLC control, motor drive oscillating tube to do the reciprocating motion at a certain angle, at the same time control the water flow, the turntable rotates at a certain speed, so that to make every side of the sample testing uniformly.



Other IP products features:

IPX12: With compressed air drying function, after the test is completed, the excess water in the drip tank can be removed to avoid long-term water accumulation and fouling, causing block the pinhole (Please note: need users supply gas source)


IPX56: Monolithic structure, not need the operator to carry a spray gun to do the test, just start the test directly after fixing the sample.


• The water supply line is equipped with a filter to filter impurities in the water to prevent nozzle clogging.
• The LED waterproof lighting is installed in the test box, and there is a large observation window on the door to facilitate the observation of the test sample.
• The equipment equipped with a water tank recycling water, no need building a professional waterproof test room. The water tank float valve in the water tank automatically controls the water inlet, and has high and low water level alarm monitoring to effectively prevent the pump from being damaged due to running out of water.
• The turntable uses a stepper motor, the speed can be set on the touch screen, and can control the forward and reverse rotation (suitable for the sample power-on test to prevent winding).

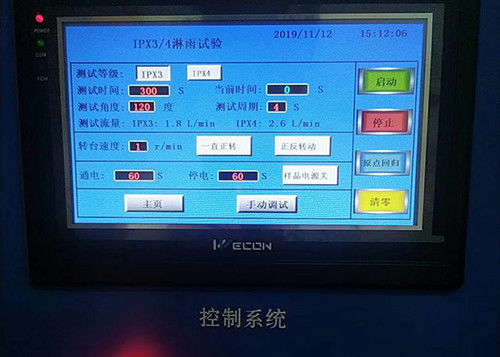

• Touch screen control function: The self-developed IPXX waterproof level test operation interface, directly select the waterproof level, you can automatically test according to the waterproof rating conditions in the standard terms.
• Test sample input power: single-phase 220V/10A (other specifications can be customized)
• Equipment power supply frequency: Default 50Hz (can customize 60Hz special equipment)



Special note: 50Hz equipment will run faster under 60Hz power supply, so will not meet the standard requirements, and too fast speed will cause overheating and shorten its life)

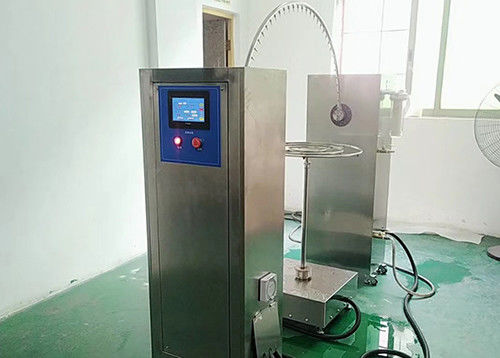

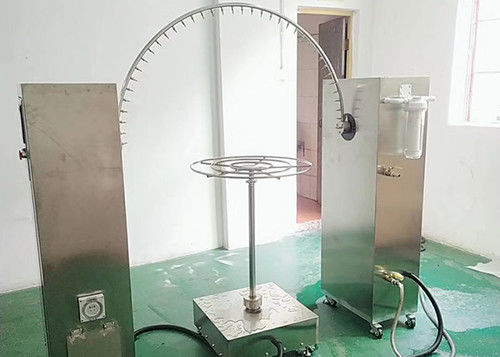

Customer Usage Site:
