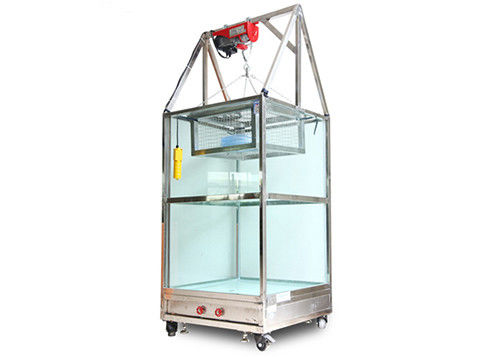

IPX7 Immersion Glass Tank Ingress Protection Test Equipment

IPX7 Immersion Glass Tank Ingress Protection Test Equipment

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  IPX7 Immersion Glass Tank Ingress Protection Test Equipment Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: Third part calibration certificate(cost additional)
Model Number: SC-IPX7-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD 3000-8000 piece
Packaging Details: Carton
Delivery Time: in 15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 99 units per month
Detailed Product Description
Standard: IEC 60529, EN 60529 Application: Waterproof Testing For IPX7
Material: Stainless Steel Plate And Tempered Glass Testing Time: 0-99min
Inner Height: Generally 1.2 Meters, Can Be Customized Box Thickness: 12mm
Water Level Display: Stainless Steel Ruler (accuracy 1mm). Horizontal Vision15 Degree Composition Structure: Monolayer
High Light:

SS304 Ingress Protection Test Equipment

,

IPX7 SS304 Ingress Protection Test Equipment

,

SS304 ipx7 waterproof test

IPX7 Immersion Glass Tank Ingress Protection Test Equipment IEC60529





IPX7 Immersion Glass Tank Features:
304 stainless steel material frame
12mm tempered glass
Casters move, foot cups fixed
The size can be customized

IPX7 Immersion Glass Tank Parameters:

classification Glass mould
materials Tempered glass
Box thickness 12mm
Composition structure monolayer
Inner height Generally 1.2 meters, can be customized
Can customized or not Support customization, please consult ahead of time
Water level display Stainless steel ruler (accuracy 1mm). horizontal vision15 degree
How to adjust the water level Control the inlet/ drain valve, manual adjustment



IPX7 Immersion Glass Tank Main purpose:

Test the product waterproof performance in the soaking environment (water depth 1 m) Through the test,
check whether the product waterproof level meet the requirements, so that the product design R & D and factory inspection use.



IPX7 Immersion Glass Tank Description:

Assessment of enclosures and sealing element whether can ensure good performance of equipment and components after the water test or during the test.

Confirm to standards:

IEC 60529 IPX7;

EN 60529 IPX7 ;

IEC 60884-1;

IEC 60598-1;

IEC 60335-1 and so on.


Waterproof Rating:

IPX1 Protected against falling water Equivalent to 3-5mm rainfall per minute for a duration of 10 minutes.
Unit is placed in its normal operating position.
IPX2 Protected against falling water when tilted up to 15 degrees - Same as IPX1 but unit is tested in 4 fixed positions - tilted 15 degrees in each direction from normal operating position.
IPX3 Protected against spraying water - Water spraying up to 60 degrees from vertical at 10 liters/min at a pressure of 80-100kN/m2 for 5 min.
IPX4 Protected against splashing water - Same as IPX3 but water is sprayed at all angles.
IPX5 Protected against water jets - Water projected at all angles through a 6.3mm nozzle at a flow rate of 12.5 liters/min at a pressure of 30kN/m2 for 3 minutes from a distance of 3 meters.
IPX6 Protected against heavy seas - Water projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min at a pressure of 100kN/m2 for 3 minutes from a distance of 3 meters.
IPX7 Protected against water immersion - Immersion for 30 minutes at a depth of 1 meter.

IPX8 Protected against water submersion - The equipment is suitable for continual submersion in water under conditions which are identified by the manufacturer.

We are professional IP waterproof Testing Equipment manufacturer.

Guangzhou Shice are designed and manufactured as per the requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc.
Our main products are:
waterproof and dustproof (IP) environmental test equipment;
switch, plug, socket and coupler test equipment;
mechanical strength impact test equipment;
material fire hazard test equipment,
enclosure protection test probes;
household appliances safety test equipment;
wire and cable test equipment;
luminaires test equipment;
electric tools test equipment.
Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.

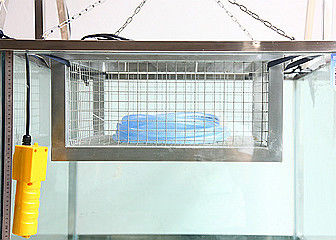

IPX7 Immersion Glass Tank Ingress Protection Test Equipment 0IPX7 Immersion Glass Tank Ingress Protection Test Equipment 1
