Product Details:
Payment & Shipping Terms:
|
| Material: | Mold Steel | Standards: | JISc 8303 |
|---|---|---|---|
| Figure A.1: | Maximum Retaining Force Gauge 15A125V | Figure A.2: | Maximum Retaining Force Gauge 15A125V |
| Figure A.9: | Maximum Retaining Force Gauge 15A 125V | Figure A.10: | Minimum Retaining Force Gauge （15A 250V 2 Poles + With Earthing Pole） |
| Figure A.11: | Minimum Retaining Force Gauge （15A 125V 2 Poles + With Earthing Pole） | ||
| High Light: | JIS C8303 Minimum Retaining Force Gauge,125V Minimum Retaining Force Gauge |
||

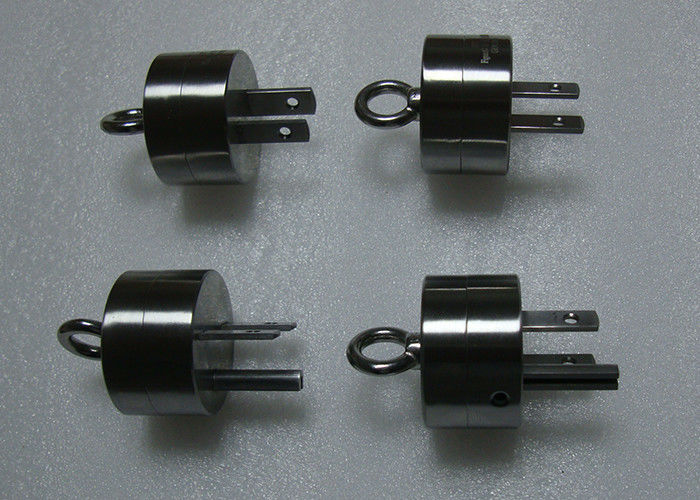

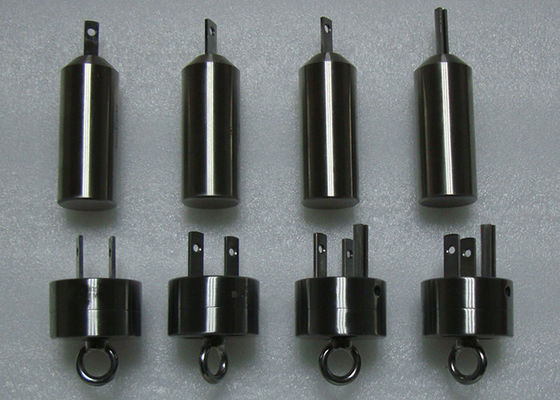

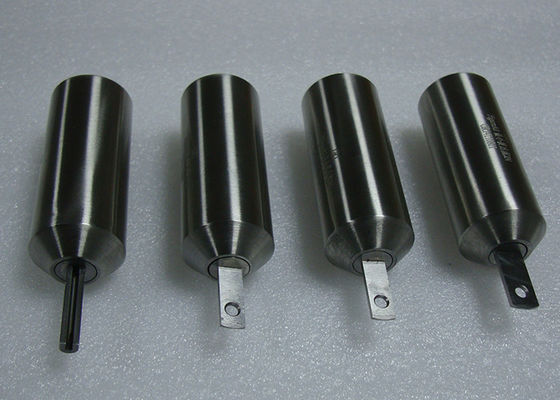

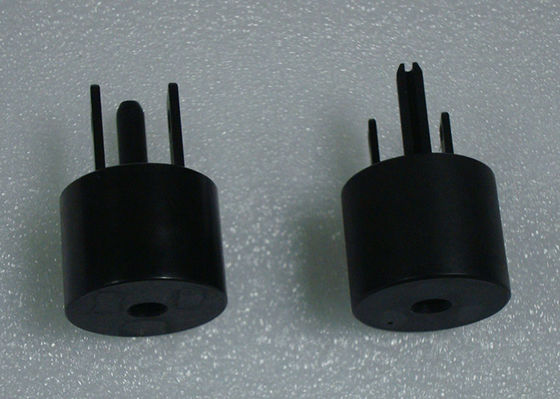

JIS C8303 Maximum And Minimum Retaining Force Gauge Japanese Standard
Specification:
NO. | Gauge Name | Standards | Model | Quantity |
|---|---|---|---|---|
| 1 | Maximum retaining force gauge (15A125V 2 poles) | JIS C8303 Figure A.1 JIS C8282-1:2010 CL22.1 | SC-J3-DA1 | 1 |
| 2 | Minimum retaining force gauge (15A125V 2 poles) | JIS C8303 Figure A.1 JIS C8282-1:2010 CL22.2 | SC-J3-XA1 | 2 |
| 3 | Maximum retaining force gauge (15A125V 2 poles) | JIS C8303 Figure A.2 JIS C8282-1:2010 CL22.1 | SC-J3-DA2 | 1 |
| 4 | Minimum retaining force gauge (15A125V 2 poles) | JIS C8303 Figure A.2 JIS C8282-1:2010 CL22.2 | SC-J3-XA2 | 1 |
| 5 | Maximum retaining force gauge (20A 125V 2 poles) | JIS C8303 Figure A.3 JIS C8282-1:2010 CL22.1 | SC-J3-DA3 | 1 |
| 6 | Minimum retaining force gauge (20A 125V 2 poles) | JIS C8303 Figure A.3 JIS C8282-1:2010 CL22.2 | SC-J3-XA3 | 2 |
| 7 | Maximum retaining force gauge (20A 250V 2 poles) | JIS C8303 Figure A.4 JIS C8282-1:2010 CL22.1 | SC-J3-DA4 | 1 |
| 8 | Minimum retaining force gauge (20A 250V 2 poles) | JIS C8303 Figure A.4 JIS C8282-1:2010 CL22.2 | SC-J3-XA4 | 1 |
| 9 | Maximum retaining force gauge (30A 250V 2 poles) | JIS C8303 Figure A.5 JIS C8282-1:2010 CL22.1 | SC-J3-DA5 | 1 |
| 10 | Minimum retaining force gauge (30A 250V 2 poles) | JIS C8303 Figure A.5 JIS C8282-1:2010 CL22.2 | SC-J3-XA5 | 2 |
| 11 | Maximum retaining force gauge (15A 125V 2 poles + with earthing pole) | JIS C8303 Figure A.9 JIS C8282-1:2010 CL22.1 | SC-J3-DA9 | 1 |
| 12 | Minimum retaining force gauge (15A 125V 2 poles + with earthing pole) | JIS C8303 Figure A.9 JIS C8282-1:2010 CL22.2 | SC-J3-XA9 | 2 |
| 13 | Maximum retaining force gauge (15A 250V 2 poles + with earthing pole) | JIS C8303 Figure A.10 JIS C8282-1:2010 CL22.1 | SC-J3-DA10 | 1 |
| 14 | Minimum retaining force gauge (15A 250V 2 poles + with earthing pole) | JIS C8303 Figure A.10 JIS C8282-1:2010 CL22.2 | SC-J3-XA10 | 2 |
| 15 | Maximum retaining force gauge (15A 125V 2 poles + with earthing pole) | JIS C8303 Figure A.11 JIS C8282-1:2010 CL22.1 | SC-J3-DA11 | 1 |
| 16 | Minimum retaining force gauge (15A 125V 2 poles + with earthing pole) | JIS C8303 Figure A.11 JIS C8282-1:2010 CL22.2 | SC-J3-XA11 | 2 |
