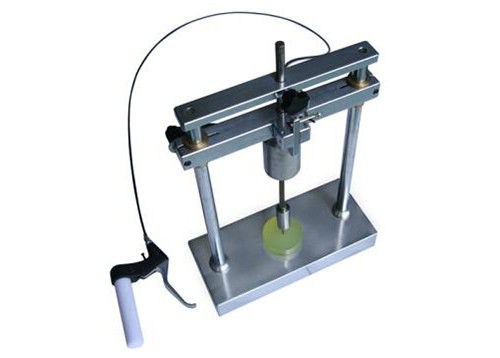

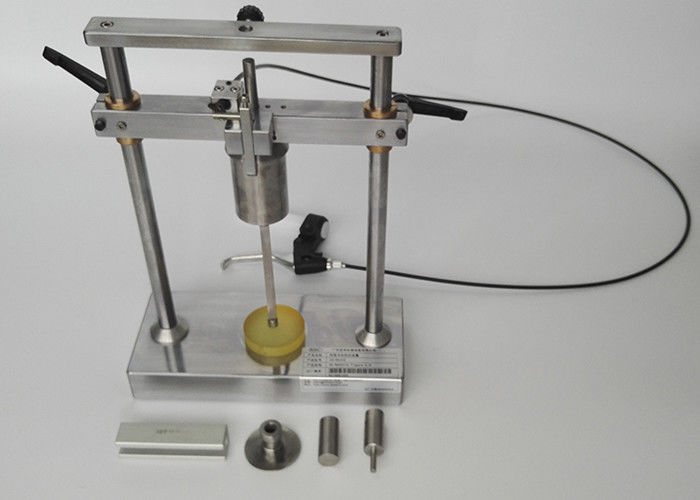

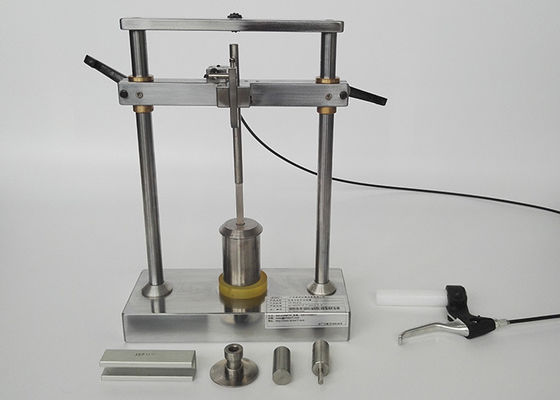

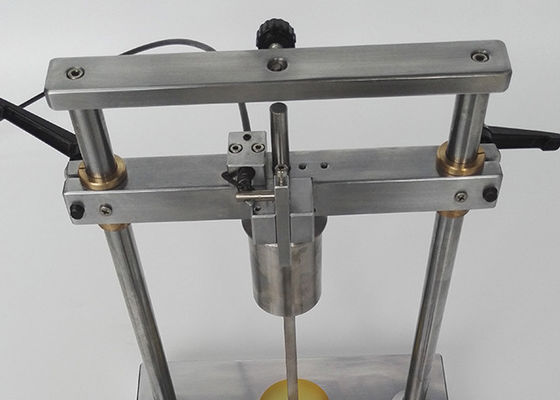

Low Temperature Pressure Impact Test Apparatus

Low Temperature Pressure Impact Test Apparatus

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Low Temperature Pressure Impact Test Apparatus Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS
Model Number: SC-DC27
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 300-1000 unit
Packaging Details: carton
Delivery Time: in 15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 999 unit per month
Detailed Product Description
Material: Stainless Steel Standards: IEC60884 Figure 27
Warranty: 12 Months Height Of Falling: 10~250mm Is Adjustable
Weight Of The Drop Hammer: 1000±2g The Height Of The Impact: 100mm
Specimens Temperature: (–15 ± 2) °C Pad Of Sponge Rubber: 40 Mm Thick
High Light:

SGS IEC60884 Impact Test Apparatus


CNAS Impact Test Apparatus


Figure27 IEC60884


IEC60884 Figure27 Low Temperature Pressure Impact Test Apparatus, IEC Test Equipment



Product information:

The specimens are subjected to an impact test by means of an apparatus as shown in figure 27.
The apparatus, positioned on a pad of sponge rubber 40 mm thick, is placed together with the specimens in a freezer at a temperature of (–15 ± 2) °C, for at least 16 h.
At the end of this period, each specimen, in turn, is placed in the normal position of use as shown in figure 27, and a weight is allowed to fall from a height of 100 mm. The mass of the falling weight is (1 000 ± 2) g.
After the test, the specimen shall show no damage within the meaning of this standard.



      IEC 60884 Figure 27


Technical parameters:
The height of falling: 10~250mm is adjustable.

Low-temperature impact test sample Standard Weight of the drop hammer (g) The height of the impact mm Remark
The socket box and the similar electrical enclosure  IEC60884 figure 27 1000±2 100 standard
The bolt with insulation sheath GB2099.1-2008 clause30.4, figure 42 100±1 100 standard
The electric cable with PVC sheath GB2951.4 clause8.5,figure 2



100 Optional


For the samples of laying of cable, the weight of the drop hammer required are as follows:

The external diameter of the samples(D/mm) The weight of the drop hammer /g
D≤4.0 100
4.0<D≤6.0 200
6.0<D≤9.0 300
9.0<D≤12.5 400
12.5<D≤20.0 500
20.0<D≤30.0 750
30.0<D≤50.0 1000
50.0<D≤75.0 1250
75.0<D 1500


For the samples of flexible cable and telecommunication cable, the weight of the drop hammer required is as follows:

The external diameter of the sample D/mm The weight of drop hammer /g
D≤6 100
6.0<D≤10.0 200
10.0<D≤15.0 300
15.0<D≤25.0 400
25.0<D≤35.0 500
35.0<D 600


Guangzhou Shice are designed and manufactured as per the requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc. Our main products are: waterproof and dustproof (IP) environmental test equipment; switch, plug, socket and coupler test equipment; mechanical strength impact test equipment; material fire hazard test equipment, enclosure protection test probes; household appliances safety test equipment; wire and cable test equipment; luminaires test equipment; electric tools test equipment. Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.
