| Reference Standard: | IEC 60950-1, IEC 61558-1 | Test: | Mandrel Test |
|---|---|---|---|
| Weights: | 50N * 3pc | Test Mandrel: | Triangle Bar With A Tip |
| Rotate Angle: | 230° | Test Times: | 3 Times |
| Test Object: | Non-separable Thin Sheets Of Audio Video Apparatus | Dimension: | 240mmx 240mmx 600mm |
| Highlight: | IEC 60950 Cable Testing Equipment,IEC 60950-1 Cable Testing Equipment,IEC 61558-1 Mandrel Test |
||

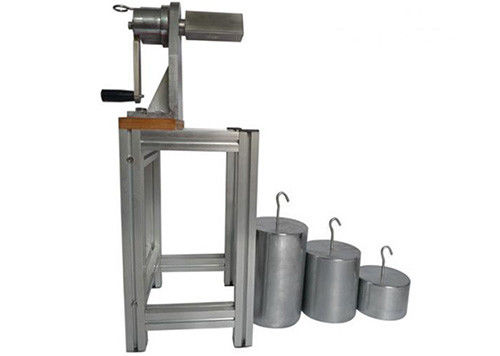

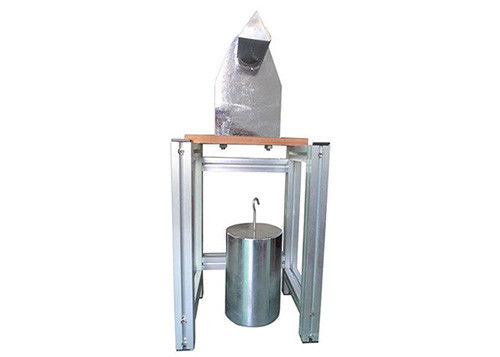

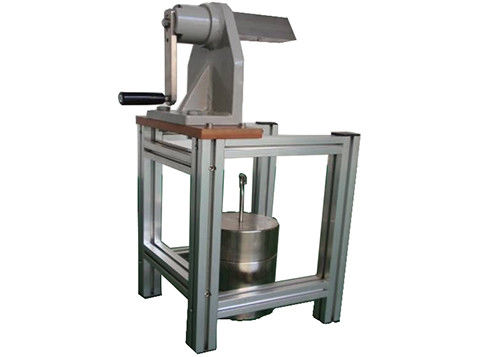

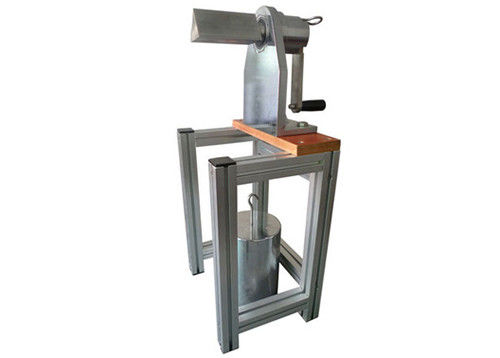

Mandrel Test Audio Video Apparatus Insulation Material IEC 60950
Description:
This device is used to test the Insulation anti damage strength verification for non separable thin layer materials.
Technical parameters:
| Test object | non-separable thin sheets of audio video apparatus |
| Reference standard | IEC 60950-1, IEC 61558-1 |
| Test | mandrel test |
| Station | 1 |
| Weights | 50N * 3pc |
| Test mandrel | Triangle bar with a tip |
| Rotate angle | 230° |
| Test times | 3 times |
| Dimension | 240mmx 240mmx 600mm |
| Optional | withstand voltage tester |
Confirms to
IEC60950 Safety of information technology equipment,
IEC60065-1 Audio, video and similar electronic apparatus-Safety requirements,
IEC 61558-1.
Test sample: non-separable thin sheets of audio video apparatus.
Feature: The position of 10° and 230° are set with mechanical limit, not only to ensure the accuracy of the test angle, but also to achieve a simple operation method; weight with a hanging ring, in case of a point is damaged because of too large pull force.
